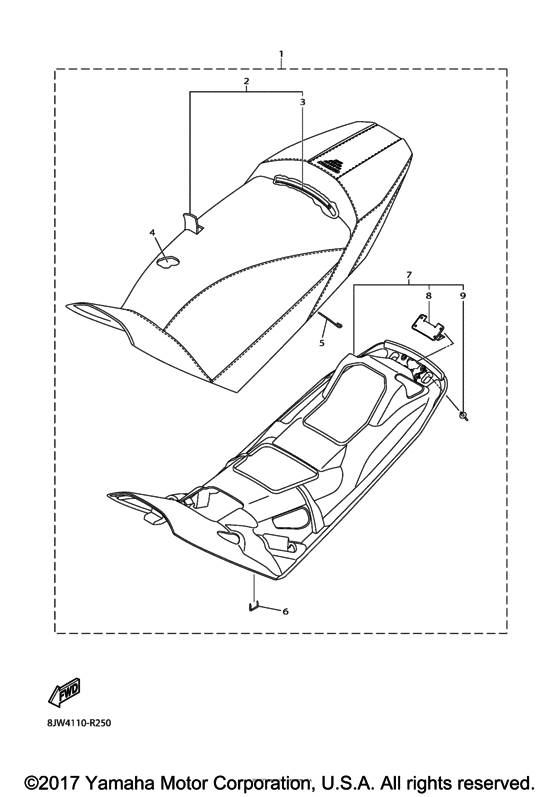

Seat Diagram Yamaha SR10/ SRV10 SR Viper R-TX SE
- Model code
- 8JW4
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper R-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JW-F4710-30-00 Single Seat AssyUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8JW-F4710-30-00 |
US $868.43 |
||
|
1
|
1
8JW-F4710-40-00 Single Seat AssyUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8JW-F4710-40-00 |
US $939.66 |
||
|
2
|
2
8JW-F470F-10-00 Seat Cover CompUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8JW-F470F-10-00 |
US $463.41 |
||
|
2
|
2
8JW-F470F-20-00 Seat Cover CompUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8JW-F470F-20-00 |
US $452.09 |
||
|
3
|
3
8JP-F473J-00-00 Wire |
8JP-F473J-00-00 |
US $6.30 |
||
|
4
|
4
8JP-F4713-00-00 Cushion |
8JP-F4713-00-00 |
US $161.14 |
||
|
5
|
5
8JP-F1664-00-00 Wire 2 |
8JP-F1664-00-00 |
US $3.22 |
||
|
6
|
6
8JM-F473U-00-00 StapleUN |
8JM-F473U-00-00 |
US $178.33 |
||
|
7
|
7
8JP-F470E-00-00 Bottom Plate Comp |
8JP-F470E-00-00 |
US $205.96 |
||
|
8
|
8
8JP-F475H-00-00 Bracket, Seat Lever 1 |
8JP-F475H-00-00 |
US $21.87 |
||
|
9
|
9
8JP-RA523-00-00 Rivet, 14 |
8JP-RA523-00-00 |
US $17.60 |
