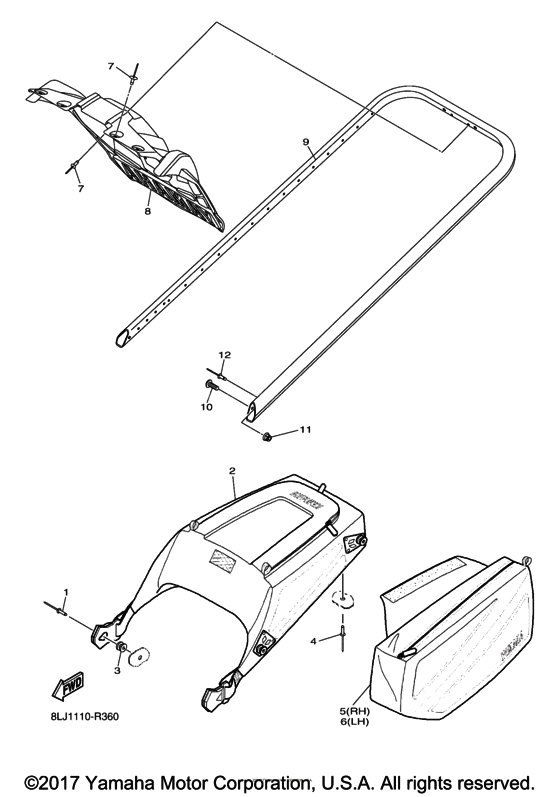

Bumper Diagram Yamaha SR10/ SRV10 SR Viper S-TX 137 DX
- Model code
- 8LJ3
- Engine Capacity
- 1049
- Year
- 2017
- Sales region
- USA
- Model
- SR Viper S-TX 137 DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-RA516-00-00 Rivet, 7 |
8JP-RA516-00-00 |
US $21.80 |
||
|
2
|
2
8JP-F8441-30-00 Saddle Bag 1 |
8JP-F8441-30-00 |
US $375.91 |
||
|
3
|
3
8JP-F8423-00-00 Stay, Side Bag |
8JP-F8423-00-00 |
US $13.32 |
||
|
4
|
4
8LJ-RA529-00-00 Rivet, 17 |
8LJ-RA529-00-00 |
US $61.20 |
||
|
5
|
5
8JP-F8448-00-00 Saddlebag 3 |
8JP-F8448-00-00 |
US $317.88 |
||
|
6
|
6
8JP-F8449-00-00 Saddlebag 4 |
8JP-F8449-00-00 |
US $317.88 |
||
|
7
|
7
8JP-RA524-00-00 Rivet, 15 |
8JP-RA524-00-00 |
US $29.20 |
||
|
8
|
8
8JP-K7595-00-00 Flap |
8JP-K7595-00-00 |
US $70.42 |
||
| replacement | |||||
|
8
|
8
SMA-8JP77-59-BK Flp Snow Flap Bk |
SMA-8JP77-59-BK |
US $38.99 |
||
|
9
|
9
8LJ-K7541-00-00 BUMPER, REAR 1 |
8LJ-K7541-00-00 |
US $116.15 |
||
|
10
|
10
8JP-RA260-00-00 Screw, M6X1.0X20 |
8JP-RA260-00-00 |
US $3.60 |
||
|
11
|
11
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
12
|
12
8JP-RA527-00-00 Rivet, 3/16UN |
8JP-RA527-00-00 |
US $14.85 |
||
