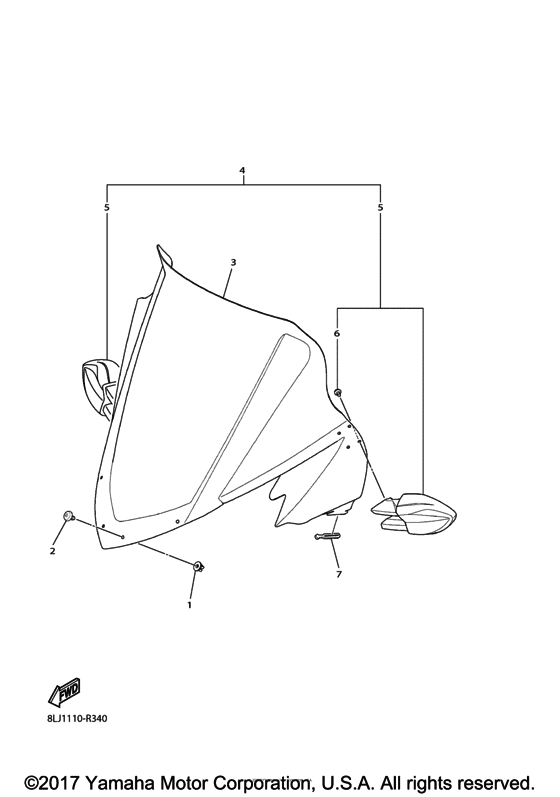

Windshield Diagram Yamaha SR10/ SRV10 SR Viper S-TX 137 DX
- Model code
- 8LJ3
- Engine Capacity
- 1049
- Year
- 2017
- Sales region
- USA
- Model
- SR Viper S-TX 137 DX
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-RA373-00-00 Nut, Insert |
8JP-RA373-00-00 |
US $18.90 |
||
|
2
|
2
8JP-RA280-10-00 Screw, Tapping M6X12 |
8JP-RA280-10-00 |
US $15.24 |
||
|
3
|
3
8LJ-K7210-00-00 Windshield Comp |
8LJ-K7210-00-00 |
US $212.13 |
||
|
4
|
4
8LJ-F62A0-01-00 Mirror Kit Assy. ( |
8LJ-F62A0-01-00 |
US $161.80 |
||
|
5
|
5
8LJ-F62A0-11-00 Mirror Kit Assy. ( |
8LJ-F62A0-11-00 |
US $87.93 |
||
|
6
|
6
8JP-RA280-00-00 Screw, Tapping M6X12 |
8JP-RA280-00-00 |
US $14.04 |
||
|
7
|
7
8LJ-K7223-00-00 Fastner |
8LJ-K7223-00-00 |
US $183.50 |
