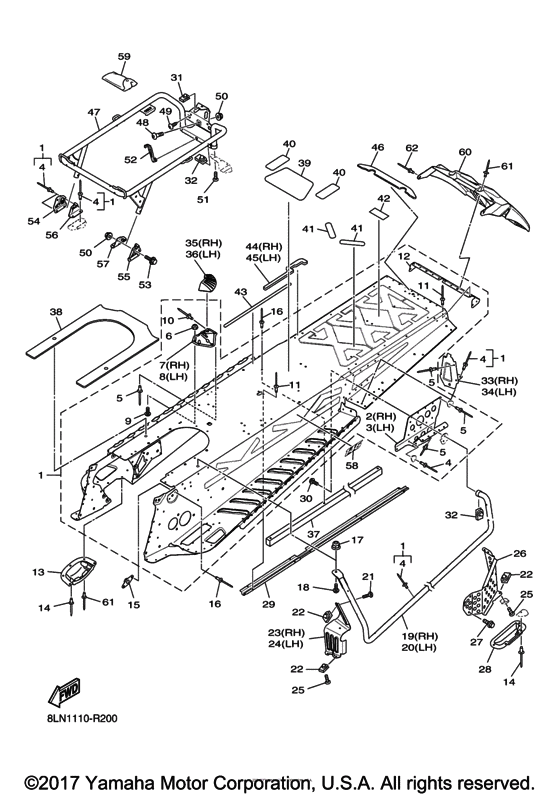

Frame 2 Diagram Yamaha SR10/ SRV10 SR Viper S-TX 146 DX
- Model code
- 8LN1
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper S-TX 146 DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8LN-F1950-00-00 Rear Frame Comp |
8LN-F1950-00-00 |
US $2,335.10 |
||
|
2
|
2
8LN-F1954-00-00 Bracket, Rear Track Suspens |
8LN-F1954-00-00 |
US $34.61 |
||
|
3
|
3
8LN-F1944-00-00 Bracket, Rear Track Suspens |
8LN-F1944-00-00 |
US $34.61 |
||
|
4
|
4
8JP-RA520-00-00 Rivet, 11 |
8JP-RA520-00-00 |
US $9.50 |
||
|
5
|
5
8JP-RA527-00-00 Rivet, 3/16 |
8JP-RA527-00-00 |
US $14.85 |
||
|
6
|
6
8JP-RA370-00-00 Nut, Hex. Locking |
8JP-RA370-00-00 |
US $7.20 |
||
|
7
|
7
8JW-F115M-00-00 Bracket, Member 2 |
8JW-F115M-00-00 |
US $38.20 |
||
|
8
|
8
8JW-F115L-00-00 Bracket, Member 1 |
8JW-F115L-00-00 |
US $44.50 |
||
|
9
|
9
8JP-RA239-00-00 Screw, 5 |
8JP-RA239-00-00 |
US $8.76 |
||
|
10
|
10
8JP-RA528-00-00 Rivet, 3/16 |
8JP-RA528-00-00 |
US $38 |
||
|
11
|
11
8JP-RA530-00-00 Rivet, 18 |
8JP-RA530-00-00 |
US $11.60 |
||
|
12
|
12
8LN-F1923-00-00 Reineforcement, Frame Rear 1 |
8LN-F1923-00-00 |
US $31.23 |
||
|
13
|
13
8JP-F2147-00-00
Protector, Chain
|
8JP-F2147-00-00 |
— | ||
|
14
|
14
8JP-RA523-00-00 Rivet, 14 |
8JP-RA523-00-00 |
US $17.60 |
||
|
15
|
15
8JP-F1919-00-00 Bracket |
8JP-F1919-00-00 |
US $31.52 |
||
|
16
|
16
8JP-RA521-00-00 Rivet, 12 |
8JP-RA521-00-00 |
US $23.40 |
||
|
17
|
17
8JM-RA301-00-00 Nut, Self-Locking M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
18
|
18
8JP-RA272-00-00 Screw, M8X1.25X20 |
8JP-RA272-00-00 |
US $0.85 |
||
|
19
|
19
8LN-F192E-00-00 Reinforcement, Frame |
8LN-F192E-00-00 |
US $164.20 |
||
|
20
|
20
8LN-F1929-00-00 Reinforcement, Frame Side |
8LN-F1929-00-00 |
US $164.20 |
||
|
21
|
21
8JP-RA247-00-00 Screw, M5X0.8X35 |
8JP-RA247-00-00 |
US $6.32 |
||
|
22
|
22
8JP-RA353-00-00 Nut, Clip M5 |
8JP-RA353-00-00 |
US $16.64 |
||
|
23
|
23
8JW-F1996-00-00 Reinforcement Sub Frame Fr 2 |
8JW-F1996-00-00 |
US $33.07 |
||
|
24
|
24
8JW-F1995-00-00 Reinforcement Sub Frame Fr 1 |
8JW-F1995-00-00 |
US $30.38 |
||
|
25
|
25
8JP-RA251-00-00 Screw, M5X1.0X16 |
8JP-RA251-00-00 |
US $1.16 |
||
|
26
|
26
8LN-F5718-00-00 Protector, Disc Brake |
8LN-F5718-00-00 |
US $39.29 |
||
|
27
|
27
8JP-RA179-00-00 Bolt, Flange M6X1.0X12 |
8JP-RA179-00-00 |
US $5.08 |
||
|
28
|
28
8JP-F5717-00-00 Protector, Disc Brake |
8JP-F5717-00-00 |
US $16.31 |
||
|
29
|
29
8LN-H2589-00-00 Protecter, Wire Harness |
8LN-H2589-00-00 |
US $49.09 |
||
|
30
|
30
8JP-RA261-00-00 Screw, M6X1.0X20 |
8JP-RA261-00-00 |
US $3.52 |
||
|
31
|
31
8JP-RA351-00-00 Nut, Clip 10 |
8JP-RA351-00-00 |
US $9.48 |
||
|
32
|
32
8JP-RA354-00-00 Nut, Clip M6 |
8JP-RA354-00-00 |
US $6.55 |
||
|
33
|
33
8LN-F1937-00-00 Reinforcement, Rear Footrest 2 |
8LN-F1937-00-00 |
US $50.20 |
||
|
34
|
34
8LN-F1927-00-00 Reinforcement, Rear Footrest 1 |
8LN-F1927-00-00 |
US $46.75 |
||
|
35
|
35
8JP-F2556-00-00 Support, Fuel Tank 2 |
8JP-F2556-00-00 |
US $24.77 |
||
|
36
|
36
8JP-F2555-00-00 Support, Fuel Tank 1 |
8JP-F2555-00-00 |
US $25.47 |
||
|
37
|
37
8LN-F1978-00-00 Protector,frame |
8LN-F1978-00-00 |
US $53.06 |
||
| replacement | |||||
|
37
|
37
8LN-F1978-10-00 Protector, Frame |
8LN-F1978-10-00 |
US $53.06 |
||
|
38
|
38
8LN-F4193-00-00 Seat, Tank Protector |
8LN-F4193-00-00 |
US $161.44 |
||
|
39
|
39
8LN-F4141-00-00 Protector, Fuel Tank |
8LN-F4141-00-00 |
US $24.55 |
||
|
40
|
40
8LN-F195A-00-00 Protector, Frame A |
8LN-F195A-00-00 |
US $4.77 |
||
|
41
|
41
8LN-F195B-00-00 Protector, Frame B |
8LN-F195B-00-00 |
US $16.15 |
||
|
42
|
42
8LN-F415C-00-00 Label |
8LN-F415C-00-00 |
US $13.07 |
||
|
43
|
43
8LN-K8261-00-00 Plate, Body Protect 1 |
8LN-K8261-00-00 |
US $4.34 |
||
|
44
|
44
8LN-K8262-00-00 Plate, Body Protect 2 |
8LN-K8262-00-00 |
US $20.90 |
||
|
45
|
45
8LN-K8263-00-00 Plate, Body Prtotect 3 |
8LN-K8263-00-00 |
US $14.89 |
||
|
46
|
46
8LN-K8264-00-00 Plate, Body Protect 4 |
8LN-K8264-00-00 |
US $9.13 |
||
|
47
|
47
8LN-K8341-00-00 Frame, Luggage Rack Rear |
8LN-K8341-00-00 |
US $559.10 |
||
|
48
|
48
8LN-K7519-00-00 Bolt |
8LN-K7519-00-00 |
US $1.24 |
||
|
49
|
49
8JP-RA280-00-00 Screw, Tapping M6X12 |
8JP-RA280-00-00 |
US $14.04 |
||
|
50
|
50
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
51
|
51
8LN-K7537-00-00 Bolt 1 |
8LN-K7537-00-00 |
US $9.16 |
||
|
52
|
52
8LN-F15A4-00-00 End, Strap |
8LN-F15A4-00-00 |
US $2.34 |
||
|
53
|
53
8JP-RA1B4-10-00 Bolt, Flange |
8JP-RA1B4-10-00 |
US $4.48 |
||
|
54
|
54
8LN-K7531-00-00 Bracket, Front |
8LN-K7531-00-00 |
US $31.23 |
||
|
55
|
55
8LN-K7532-00-00 Bracket, Front (R.h) |
8LN-K7532-00-00 |
US $31.23 |
||
|
56
|
56
8LN-K7533-00-00 Bracket, Rear (L.h) |
8LN-K7533-00-00 |
US $31.23 |
||
|
57
|
57
8LN-K7534-00-00 Bracket, Rear (R.h) |
8LN-K7534-00-00 |
US $31.23 |
||
|
58
|
58
8LN-RAP0J-00-00 Decal, Frame 17 |
8LN-RAP0J-00-00 |
US $4.14 |
||
|
59
|
59
8JP-F8100-00-00 Tool Kit |
8JP-F8100-00-00 |
US $84.73 |
||
|
60
|
60
8LN-K7595-00-00 Flap |
8LN-K7595-00-00 |
US $39.31 |
||
|
61
|
61
8JP-RA524-00-00 Rivet, 15 |
8JP-RA524-00-00 |
US $29.20 |
||
|
62
|
62
8LN-RA525-00-00 Rivet, 16 |
8LN-RA525-00-00 |
US $15.50 |
||
