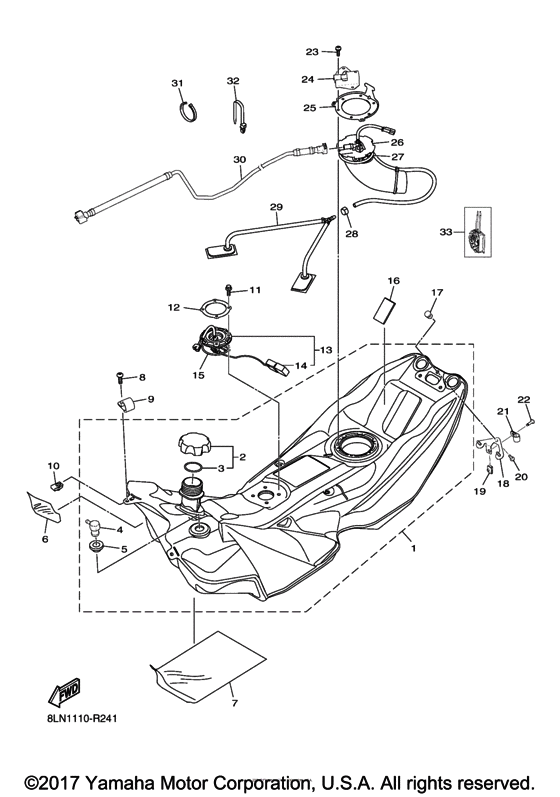

Fuel Tank 1 Diagram Yamaha SR10/ SRV10 SR Viper S-TX 146 DX
- Model code
- 8LN1
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- USA
- Model
- SR Viper S-TX 146 DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8LN-F4100-00-00 Fuel Tank Assy |
8LN-F4100-00-00 |
US $544.30 |
||
|
2
|
2
8JP-F4610-00-00 Cap Assy |
8JP-F4610-00-00 |
US $15.70 |
||
|
3
|
3
8JM-F4641-00-00 Gasket, Cap 1 |
8JM-F4641-00-00 |
US $5.47 |
||
|
4
|
4
8LN-F4362-00-00 Valve, Check 1 |
8LN-F4362-00-00 |
US $41.80 |
||
|
5
|
5
8JP-E5366-00-00 Grommet |
8JP-E5366-00-00 |
US $4.72 |
||
|
6
|
6
8JP-F416F-00-00 Insulator, Fuel Tank 1 |
8JP-F416F-00-00 |
US $17.69 |
||
| replacement | |||||
|
6
|
6
8JP-F416F-01-00 Insulator, Fuel Tank 1 |
8JP-F416F-01-00 |
US $18.85 |
||
|
7
|
7
8JP-F476U-00-00 Protector 1 |
8JP-F476U-00-00 |
US $17.87 |
||
| replacement | |||||
|
7
|
7
8JP-F476U-01-00 Protector 1 |
8JP-F476U-01-00 |
US $19.01 |
||
|
8
|
8
8JP-RA251-00-00 Screw, M5X1.0X16 |
8JP-RA251-00-00 |
US $1.16 |
||
|
9
|
9
8JP-F4566-10-00 Bracket, Filter |
8JP-F4566-10-00 |
US $2.47 |
||
|
10
|
10
8JP-RA353-00-00 Nut, Clip M5 |
8JP-RA353-00-00 |
US $16.64 |
||
|
11
|
11
8JP-RA178-00-00 Bolt, Flange M5X0.8X16 |
8JP-RA178-00-00 |
US $2.27 |
||
|
12
|
12
8JP-K8166-00-00 Plate, Retainer |
8JP-K8166-00-00 |
US $35.84 |
||
|
13
|
13
8JP-H5752-00-00 Sender Unit Assy, Fuel Meter |
8JP-H5752-00-00 |
US $238.16 |
||
|
14
|
14
8JP-H369N-00-00 Float |
8JP-H369N-00-00 |
US $25.45 |
||
|
15
|
15
8JP-RAF10-00-00 O-Ring, 46.9 |
8JP-RAF10-00-00 |
US $11.07 |
||
|
16
|
16
8JP-H2121-00-00 Pad, BatteryUN |
8JP-H2121-00-00 |
US $6.62 |
||
|
17
|
17
8LN-K7193-00-00 Nut, Latch |
8LN-K7193-00-00 |
US $21.53 |
||
|
18
|
18
8LN-F478X-00-00 Bracket, Seat Lock |
8LN-F478X-00-00 |
US $13.57 |
||
|
19
|
19
8JP-RA354-00-00 Nut, Clip M6 |
8JP-RA354-00-00 |
US $6.55 |
||
|
20
|
20
8JP-RA235-00-00 Screw, 1 |
8JP-RA235-00-00 |
US $7.56 |
||
|
21
|
21
8JP-RAB23-00-00 Clamp, 21 |
8JP-RAB23-00-00 |
US $7 |
||
|
22
|
22
8LN-K7537-00-00 Bolt 1 |
8LN-K7537-00-00 |
US $9.16 |
||
|
23
|
23
8JP-RA242-00-00 Screw, M5X0.8X20 |
8JP-RA242-00-00 |
US $14.16 |
||
|
24
|
24
8JP-F413K-00-00 Guide, Nozzle |
8JP-F413K-00-00 |
US $107.95 |
||
|
25
|
25
8JP-F4491-00-00 Bracket, Fuel Pump |
8JP-F4491-00-00 |
US $48.10 |
||
|
26
|
26
8JP-E3907-00-00 Fuel Pump Comp |
8JP-E3907-00-00 |
US $511.33 |
||
|
27
|
27
8JP-F4486-00-00 O-Ring |
8JP-F4486-00-00 |
US $4.54 |
||
|
28
|
28
8JP-RAB27-00-00 Clamp, 25 |
8JP-RAB27-00-00 |
US $22.40 |
||
|
29
|
29
8JP-F4502-00-00 Filter, Fuel |
8JP-F4502-00-00 |
US $221.44 |
||
|
30
|
30
8LN-F4310-00-00 Fuel Pipe Assy |
8LN-F4310-00-00 |
US $148.41 |
||
|
31
|
31
8JM-RAB01-00-00 Clamp, 2 (8 Inch)UR UN |
8JM-RAB01-00-00 |
US $6.30 |
||
|
31
|
31
8JP-RAB10-00-00 Clamp, 8 (11.75 Inch)UR UN |
8JP-RAB10-00-00 |
US $2.63 |
||
|
32
|
32
8JM-RAB02-00-00 Clamp, 3UN |
8JM-RAB02-00-00 |
US $9.45 |
||
|
33
|
33
8LN-H5701-00-00 SENDER ASSY |
8LN-H5701-00-00 |
US $110.29 |
||
