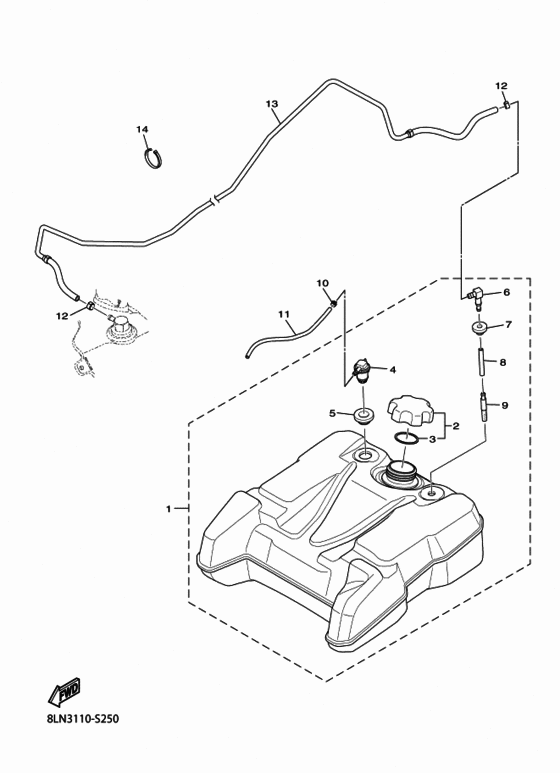

Fuel tank 2 Diagram Yamaha SR10/ SRV10 SR Viper S-TX 146 DX
- Model code
- 8LN3
- Engine Capacity
- 1049
- Year
- 2017
- Sales region
- Canada
- Colour
- Yamaha Black (010)
- Color Variant
- A
- Model
- SR Viper S-TX 146 DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8LN-F4100-10-00 Fuel Tank Assy |
8LN-F4100-10-00 |
US $410.45 |
||
|
2
|
2
8JP-F4610-00-00 Cap Assy |
8JP-F4610-00-00 |
US $15.70 |
||
|
3
|
3
8JM-F4641-00-00 Gasket, Cap 1 |
8JM-F4641-00-00 |
US $5.47 |
||
|
4
|
4
8JP-F4362-00-00 Valve, Check 1 |
8JP-F4362-00-00 |
US $44.35 |
||
|
5
|
5
8JP-E5366-00-00 Grommet |
8JP-E5366-00-00 |
US $4.72 |
||
|
6
|
6
8LN-F4376-00-00 Pipe, Joint 1 |
8LN-F4376-00-00 |
US $14.47 |
||
|
7
|
7
8JP-E5367-00-00 Grommet |
8JP-E5367-00-00 |
US $4.39 |
||
|
8
|
8
8LN-F452B-00-00 Hose, Fuel Outlet |
8LN-F452B-00-00 |
US $264.73 |
||
|
9
|
9
8LN-F4536-00-00 Strainer |
8LN-F4536-00-00 |
US $11.12 |
||
|
10
|
10
8JP-RAB12-00-00 Clamp, 10 |
8JP-RAB12-00-00 |
US $4.15 |
||
|
11
|
11
8JP-RA907-00-00 Hose, 3 (50 Feet)UR |
8JP-RA907-00-00 |
US $401.49 |
||
|
11
|
11
8JP-RA908-00-00 Hose, 4 (100 Feet)UR |
8JP-RA908-00-00 |
US $614.47 |
||
| replacement | |||||
|
11
|
11
8JP-RA907-00-00 Hose, 3 (50 Feet)UR |
8JP-RA907-00-00 |
US $401.49 |
||
|
12
|
12
8JP-RAB08-00-00 Clamp, 6 |
8JP-RAB08-00-00 |
US $13.04 |
||
|
13
|
13
8LN-F450B-00-00 Fuel Hose Assy |
8LN-F450B-00-00 |
US $109.98 |
||
|
14
|
14
8JM-RAB01-00-00 Clamp, 2 (8 Inch)UN |
8JM-RAB01-00-00 |
US $6.30 |
||
