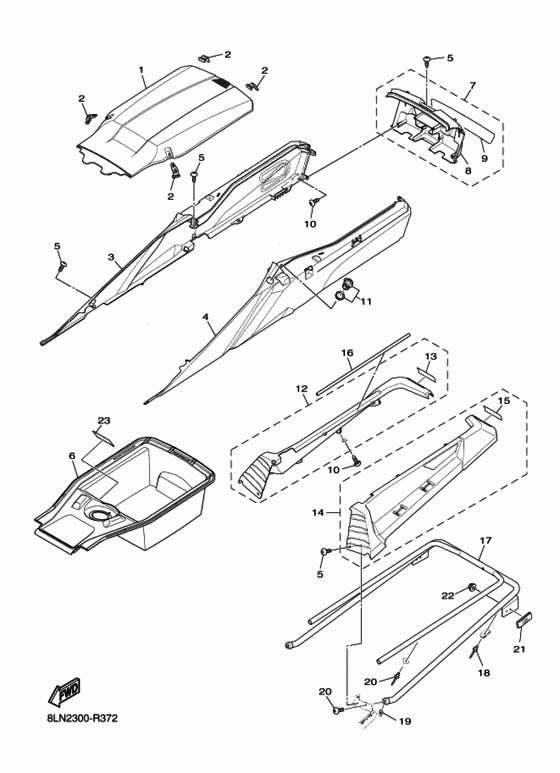

Bumper Diagram Yamaha SR10/ SRV10 SR Viper S-TX 146 DX
- Model code
- 8LN2
- Engine Capacity
- 1049
- Year
- 2016
- Sales region
- Europe
- Colour
- Yamaha Black (010)
- Color Variant
- A
- Model
- SR Viper S-TX 146 DX
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8LN-F4756-00-00 Cover, Tail |
8LN-F4756-00-00 |
US $202.27 |
||
|
2
|
2
8LN-K7175-00-00 Holder, Latch |
8LN-K7175-00-00 |
US $7.51 |
||
|
3
|
3
8LN-F1721-00-00 Cover, Side 2 |
8LN-F1721-00-00 |
US $289.87 |
||
|
4
|
4
8LN-F1711-00-00 Cover, Side 1 |
8LN-F1711-00-00 |
US $289.87 |
||
|
5
|
5
8JM-RA201-00-00 Screw, Tapping 10-12X5/8 |
8JM-RA201-00-00 |
US $12.25 |
||
| replacement | |||||
|
5
|
5
8KC-RA290-00-00 SCREW, 10-12X3/4 |
8KC-RA290-00-00 |
US $12.70 |
||
|
6
|
6
8LN-F473R-00-00 Box 1 |
8LN-F473R-00-00 |
US $84.82 |
||
|
7
|
7
8LN-F1630-00-00 Tail Cover Assy |
8LN-F1630-00-00 |
US $217.40 |
||
|
8
|
8
8LN-F172W-00-00 Cover |
8LN-F172W-00-00 |
US $159.28 |
||
|
9
|
9
8LN-F178A-00-00 Label |
8LN-F178A-00-00 |
US $45.05 |
||
|
10
|
10
8JP-RA280-00-00 Screw, Tapping M6X12 |
8JP-RA280-00-00 |
US $14.04 |
||
|
11
|
11
8JP-H254B-00-00 Terminal Comp |
8JP-H254B-00-00 |
US $29.75 |
||
|
12
|
12
8LN-F1741-11-00 Cover, Side 4 |
8LN-F1741-11-00 |
US $98.93 |
||
|
13
|
13
8JP-K7762-S0-00 Label, Warning 2 (French) |
8JP-K7762-S0-00 |
US $3.74 |
||
|
14
|
14
8LN-F1731-11-00 Cover, Side 3 |
8LN-F1731-11-00 |
US $98.93 |
||
|
15
|
15
8JP-K7762-70-00 Label, Warning 2 (English) |
8JP-K7762-70-00 |
US $3.89 |
||
|
16
|
16
8LN-F1732-00-00 Seal 1 |
8LN-F1732-00-00 |
US $7.34 |
||
|
17
|
17
8LN-K7541-10-00 Bumper, Rear 1 |
8LN-K7541-10-00 |
US $198.63 |
||
|
18
|
18
8JP-RA520-00-00 Rivet, 11 |
8JP-RA520-00-00 |
US $9.50 |
||
|
19
|
19
8JP-RA354-00-00 Nut, Clip M6 |
8JP-RA354-00-00 |
US $6.55 |
||
|
20
|
20
8JP-RA260-00-00 Screw, M6X1.0X20 |
8JP-RA260-00-00 |
US $3.60 |
||
|
21
|
21
8GM-85110-00-00 Reflector Assy |
8GM-85110-00-00 |
from US $9.35 |
||
|
22
|
22
8JP-RA363-00-00 Nut, Flange Locking M5X0.8 |
8JP-RA363-00-00 |
US $15.80 |
||
|
23
|
23
8LN-F415C-00-00 Label |
8LN-F415C-00-00 |
US $13.07 |
||
