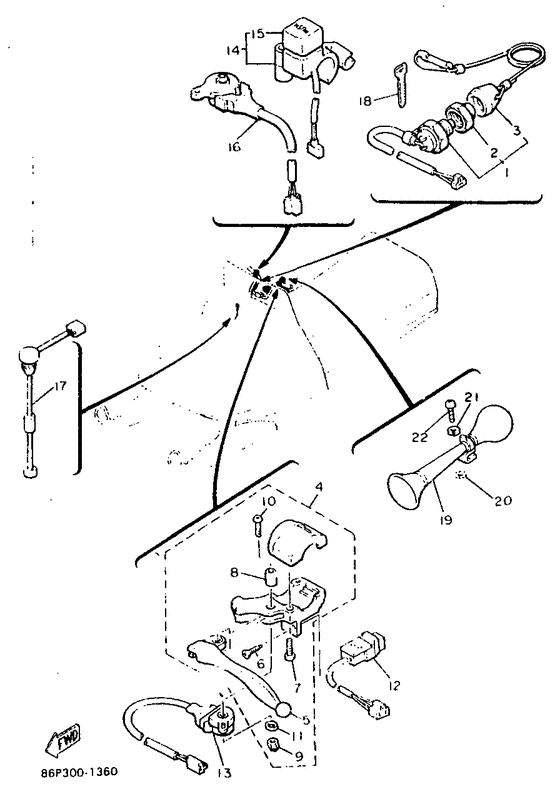

Electrical 2 Diagram Yamaha SR540 SRV
- Model code
- 86P3
- Engine Capacity
- 540
- Year
- 1991
- Sales region
- Europe (General) (999)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
8H8-82550-01-00 Engine Stop Switch Assembly |
8H8-82550-01-00 |
from US $49.74 |
||
|
02
|
02
8H8-82557-00-00 Nut |
8H8-82557-00-00 |
from US $3.68 |
||
|
03
|
03
8H8-82552-09-00 Cap, Switch |
8H8-82552-09-00 |
from US $42.28 |
||
|
04
|
04
88K-W8291-00-00 Lever Holder Assy (Left) |
88K-W8291-00-00 |
US $82.07 |
||
| replacement | |||||
|
04
|
04
88R-W8291-00-00 Lever Holder Assy (Left) |
88R-W8291-00-00 |
from US $82.07 |
||
|
05
|
05
8H8-83912-00-00 Lever 1 |
8H8-83912-00-00 |
from US $15.30 |
||
|
06
|
06
97701-30712-00
Screw, Tapping
|
97701-30712-00 |
— | ||
| replacement | |||||
|
06
|
06
97780-30312-00
Screw, O Head Tapping
|
97780-30312-00 |
— | ||
|
07
|
07
98506-05038-00 Screw, Pan Head |
98506-05038-00 |
from US $1.35 |
||
| replacements | |||||
|
07
|
07
8R4-82113-00-00 Screw |
8R4-82113-00-00 |
from US $1.21 |
||
|
07
|
07
90157-05113-00 Screw, Pan Head |
90157-05113-00 |
from US $1.35 |
||
|
08
|
08
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
09
|
09
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
09
|
09
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
10
|
10
98506-05022-00 Screw, Pan Head |
98506-05022-00 |
from US $1.98 |
||
| replacement | |||||
|
10
|
10
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
11
|
11
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
12
|
12
8K4-83950-01-00 Beam Switch Assy |
8K4-83950-01-00 |
from US $49.05 |
||
|
13
|
13
8K4-82530-00-00 Stop Switch Assy |
8K4-82530-00-00 |
from US $15.87 |
||
| replacement | |||||
|
13
|
13
88R-82530-00-00 Stop Switch Assy |
88R-82530-00-00 |
from US $15.87 |
||
|
14
|
14
8M5-83976-00-00
Switch, Handle 1
|
8M5-83976-00-00 |
— | ||
|
15
|
15
8E3-83956-01-00 Cap 1 |
8E3-83956-01-00 |
from US $7.08 |
||
|
16
|
16
8W2-83980-00-00 Front Stop Switch Assy |
8W2-83980-00-00 |
US $23.66 |
||
|
17
|
17
4A5-85720-00-00 Oil Level Gauge Assy |
4A5-85720-00-00 |
from US $41.29 |
||
| replacement | |||||
|
17
|
17
4HV-85720-03-00 Oil Level Gauge Assy |
4HV-85720-03-00 |
from US $44.06 |
||
|
18
|
18
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
18
|
18
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
19
|
19
8F4-83371-00-00
Horn
|
8F4-83371-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
92990-05400-00
Washer, Ex.tooth
|
92990-05400-00 |
— | ||
|
21
|
21
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
22
|
22
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
22
|
22
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
