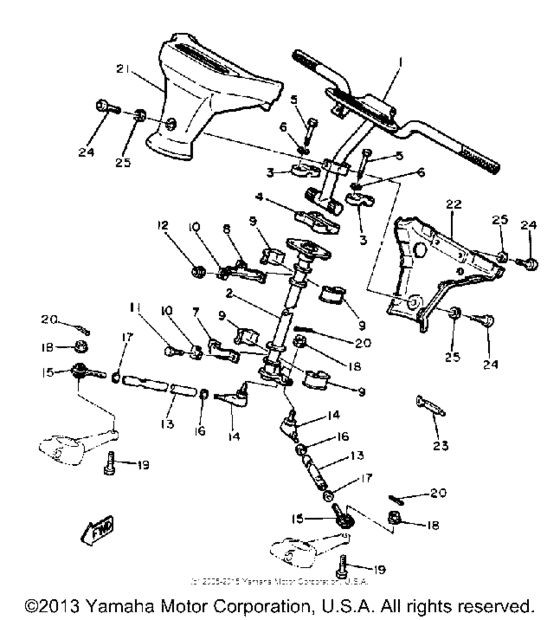

Steering Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1980
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8K4-23811-01-00
Column, Steering
|
8K4-23811-01-00 |
— | ||
|
2
|
2
8K4-23813-01-00
Column, Steering 2 (8K4-23813-0
8K4-23813-0 |
8K4-23813-01-00 |
— | ||
|
3
|
3
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
4
|
4
164-23441-00-38
Holder Handle Upr
|
164-23441-00-38 |
— | ||
| replacement | |||||
|
4
|
4
164-23441-01-38
HANDLE,HOLDER
|
164-23441-01-38 |
— | ||
|
5
|
5
97321-08055-00 Bolt, Hexagon661 |
97321-08055-00 |
from US $2.66 |
||
| replacement | |||||
|
5
|
5
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
84M-23868-00-00 Bracket, Steering Lower |
84M-23868-00-00 |
from US $14.31 |
||
| replacement | |||||
|
7
|
7
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
8
|
8
84M-23872-00-00 Holder, Bearing |
84M-23872-00-00 |
from US $14.31 |
||
|
9
|
9
8F3-23812-00-00 Bearing, Steering |
8F3-23812-00-00 |
from US $6.23 |
||
|
10
|
10
902-15081-43-00
Washer, Lock
|
902-15081-43-00 |
— | ||
|
11
|
11
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
11
|
11
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
12
|
12
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
12
|
12
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
13
|
13
8L0-23821-00-00 Rod, Steering Relay |
8L0-23821-00-00 |
from US $29.53 |
||
| replacements | |||||
|
13
|
13
85L-23821-00-00 Rod, Steering Relay |
85L-23821-00-00 |
from US $29.53 |
||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
86X-23841-00-00 Joint, Universal 1 |
86X-23841-00-00 |
from US $32.08 |
||
|
15
|
15
87S-23847-00-00 Joint, Universal 3 |
87S-23847-00-00 |
from US $21.11 |
||
| replacement | |||||
|
15
|
15
87S-23847-01-00 Joint, Universal 3 |
87S-23847-01-00 |
from US $21.11 |
||
|
16
|
16
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
16
|
16
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
17
|
17
90170-10186-00 Nut, Hexagon (8A5) |
90170-10186-00 |
from US $1.28 |
||
|
18
|
18
95701-10300-00 Nut, With Washer |
95701-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
18
|
18
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
19
|
19
90102-10031-00 Bolt, With Hole |
90102-10031-00 |
from US $8.22 |
||
|
20
|
20
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
21
|
21
8K4-23815-01-00
Pad, Steering
|
8K4-23815-01-00 |
— | ||
|
22
|
22
8K4-23817-01-00
Pad, Steering
|
8K4-23817-01-00 |
— | ||
|
23
|
23
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
24
|
24
98906-05016-00 Screw, Bind |
98906-05016-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
98907-05016-00 Screw, Bind |
98907-05016-00 |
from US $1.56 |
||
|
25
|
25
903-87067-94-00
Collar
|
903-87067-94-00 |
— | ||
