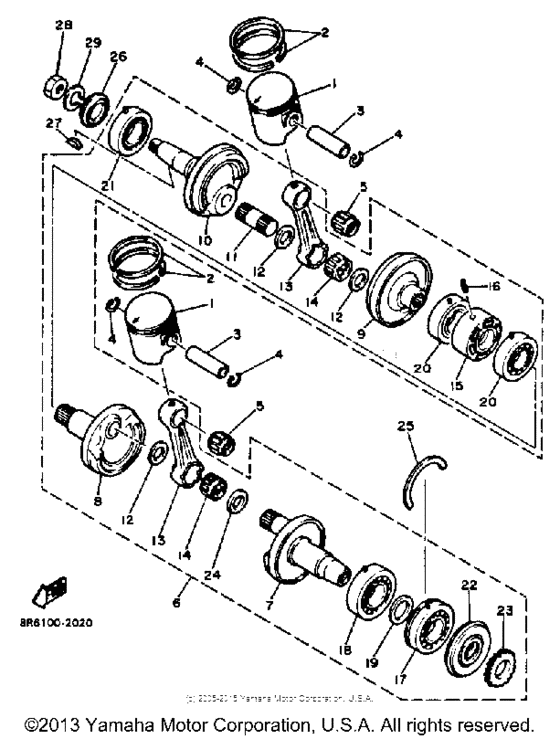

Crankshaft & Piston Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1982
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R6-11631-00-95 Piston (Std) |
8R6-11631-00-95 |
from US $103.07 |
||
|
1
|
1
8R6-11635-00-00 Piston (0.25Mm O/s)0.25MM O/S ALT. PART |
8R6-11635-00-00 |
from US $71.76 |
||
|
1
|
1
8R6-11636-00-00 Piston (0.50Mm O/s)0.50MM O/S ALT. PART |
8R6-11636-00-00 |
from US $103.07 |
||
|
2
|
2
8R6-11601-00-00 Piston Ring Set |
8R6-11601-00-00 |
from US $37.40 |
||
|
2
|
2
8R6-11601-20-00 Piston Ring Set (0.50Mm O/s)0.50MM O/S ALT. PART |
8R6-11601-20-00 |
from US $37.36 |
||
|
2
|
2
8R6-11601-10-00 Piston Ring Set (0.25Mm O/s)0.25MM O/S ALT. PART |
8R6-11601-10-00 |
from US $38.02 |
||
|
3
|
3
8H8-11633-00-00 Pin, Piston |
8H8-11633-00-00 |
from US $9.92 |
||
|
4
|
4
934-50210-53-00 Circlip |
934-50210-53-00 |
from US $1.28 |
||
|
5
|
5
93310-320G0-00 Bearing |
93310-320G0-00 |
from US $13.46 |
||
|
6
|
6
8R6-11400-01-00
Crankshaft Assembly
|
8R6-11400-01-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
8R6-11412-00-00
Crank 1
|
8R6-11412-00-00 |
— | ||
| replacements | |||||
|
7
|
7
999-99031-70-00
Crank 1
|
999-99031-70-00 |
— | ||
|
7
|
7
83R-11412-00-00
Crank 1
|
83R-11412-00-00 |
— | ||
|
8
|
8
8R6-11422-00-00
Crank 2
|
8R6-11422-00-00 |
— | ||
|
9
|
9
8R6-11432-01-00
Crank 3
|
8R6-11432-01-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
8H8-11422-00-00
Crank 2
|
8H8-11422-00-00 |
— | ||
|
11
|
11
8H0-11681-00-00
Pin, Crank 1
|
8H0-11681-00-00 |
— | ||
| replacement | |||||
|
11
|
11
8H8-11681-00-00
Pin, Crank 1
|
8H8-11681-00-00 |
— | ||
|
12
|
12
902-09240-73-00 Washer, Special Shape |
902-09240-73-00 |
from US $4.64 |
||
|
13
|
13
8R6-11651-00-00 Rod, Connecting |
8R6-11651-00-00 |
from US $119.36 |
||
|
14
|
14
93310-524K4-00 Bearing |
93310-524K4-00 |
from US $34 |
||
|
15
|
15
8H8-11515-00-00 Seal, Labyrinth 1 |
8H8-11515-00-00 |
from US $42 |
||
|
16
|
16
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
16
|
16
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
17
|
17
93306-30625-00 Bearing |
93306-30625-00 |
from US $93.13 |
||
|
18
|
18
93306-30625-00 Bearing |
93306-30625-00 |
from US $93.13 |
||
|
19
|
19
90201-34683-00 Washer, Plate (90201-33299-00)90201-33299-00 |
90201-34683-00 |
from US $10.57 |
||
|
20
|
20
93306-20617-00 Bearing (B6206) |
93306-20617-00 |
from US $41.31 |
||
|
21
|
21
93306-20617-00 Bearing (B6206) |
93306-20617-00 |
from US $41.31 |
||
|
22
|
22
931-03320-95-00 Oil Seal |
931-03320-95-00 |
from US $26.12 |
||
|
23
|
23
8K2-13178-00-00 Gear, Pump Drive |
8K2-13178-00-00 |
from US $36.75 |
||
|
24
|
24
8A7-11685-00-00 Washer, Crank Pin |
8A7-11685-00-00 |
from US $8.64 |
||
|
25
|
25
93440-78069-00 Circlip |
93440-78069-00 |
from US $2.69 |
||
|
26
|
26
931-03321-56-00 Oil Seal |
931-03321-56-00 |
from US $19.98 |
||
|
27
|
27
90280-05014-00 Key, Woodruff |
90280-05014-00 |
from US $2.32 |
||
|
28
|
28
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
28
|
28
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
29
|
29
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
29
|
29
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
