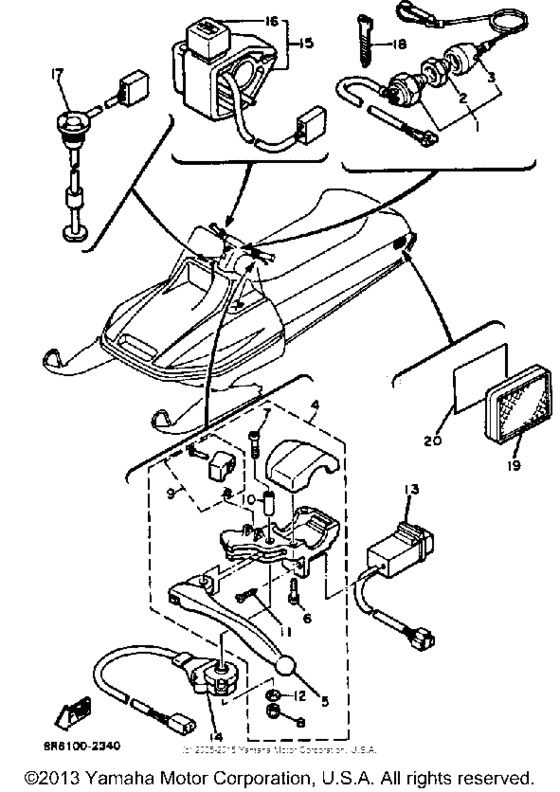

Electrical Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1982
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8H8-82550-01-00 Engine Stop Switch Assembly |
8H8-82550-01-00 |
from US $49.74 |
||
|
2
|
2
8H8-82557-00-00 Nut |
8H8-82557-00-00 |
from US $3.68 |
||
|
3
|
3
8H8-82552-09-00 Cap, Switch |
8H8-82552-09-00 |
from US $42.28 |
||
|
4
|
4
88R-W8291-00-00 Lever Holder Assy (Left) |
88R-W8291-00-00 |
from US $82.07 |
||
|
5
|
5
8H8-83912-00-00 Lever 1 |
8H8-83912-00-00 |
from US $15.30 |
||
|
6
|
6
90157-05027-00 Screw, Pan Head |
90157-05027-00 |
from US $1.98 |
||
| replacement | |||||
|
6
|
6
90157-05057-00 Screw, Pan Head(41N) |
90157-05057-00 |
from US $1.98 |
||
|
7
|
7
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
7
|
7
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
7
|
7
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
8
|
8
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
8
|
8
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
9
|
9
82A-83930-00-00 Lever Lock Assembly (8K4-83938K4-8393 |
82A-83930-00-00 |
US $34.58 |
||
|
10
|
10
802-83913-00-00 Collar, Lever 1 |
802-83913-00-00 |
from US $1.70 |
||
|
11
|
11
97780-30312-00
Screw, O Head Tapping
|
97780-30312-00 |
— | ||
|
12
|
12
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
13
|
13
8H8-83950-01-00 Beam Switch Assy |
8H8-83950-01-00 |
from US $50.70 |
||
|
14
|
14
88R-82530-00-00 Stop Switch Assy |
88R-82530-00-00 |
from US $15.87 |
||
|
15
|
15
8L8-83976-00-00
Switch, Handle 1
|
8L8-83976-00-00 |
— | ||
|
16
|
16
8E3-83956-01-00 Cap 1 |
8E3-83956-01-00 |
from US $7.08 |
||
|
17
|
17
4A5-85720-00-00 Oil Level Gauge Assy |
4A5-85720-00-00 |
from US $41.29 |
||
| replacement | |||||
|
17
|
17
4HV-85720-03-00 Oil Level Gauge Assy |
4HV-85720-03-00 |
from US $44.06 |
||
|
18
|
18
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
19
|
19
81G-85130-00-00 Rear Reflector Assy |
81G-85130-00-00 |
from US $14.73 |
||
|
20
|
20
878-85133-00-00
Tape, Reflector
|
878-85133-00-00 |
— | ||
