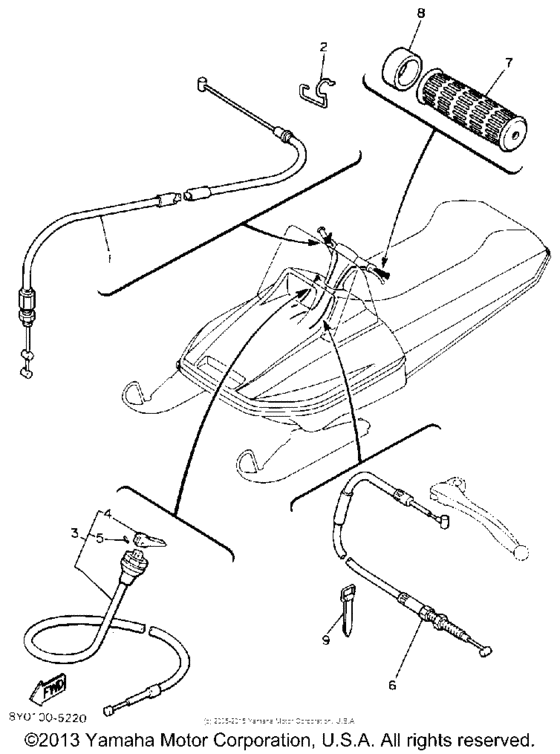

Control cable Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8Y0-26311-00-00 Cable, Throttle 1 |
8Y0-26311-00-00 |
US $36.40 |
||
|
2
|
2
90465-10189-00 Clamp |
90465-10189-00 |
from US $3.40 |
||
|
3
|
3
8Y0-26331-00-00 Cable, Starter 1 |
8Y0-26331-00-00 |
from US $38.75 |
||
| replacement | |||||
|
3
|
3
8Y0-26331-01-00 |
8Y0-26331-01-00 |
US $44.68 |
||
|
4
|
4
8L2-26374-00-00 End, Cable 3 |
8L2-26374-00-00 |
US $7.72 |
||
|
5
|
5
916-09300-10-00
Pin, Spring
|
916-09300-10-00 |
— | ||
| replacement | |||||
|
5
|
5
91690-30010-00 Pin, Spring |
91690-30010-00 |
from US $1.56 |
||
|
6
|
6
8K4-26340-00-00 Cable, Brake |
8K4-26340-00-00 |
from US $22.88 |
||
|
7
|
7
801-26241-01-00 Grip |
801-26241-01-00 |
from US $8.22 |
||
| replacement | |||||
|
7
|
7
801-26241-02-00 Grip |
801-26241-02-00 |
from US $8.22 |
||
|
8
|
8
90387-22726-00
Collar
|
90387-22726-00 |
— | ||
|
9
|
9
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
9
|
9
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
9
|
9
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
