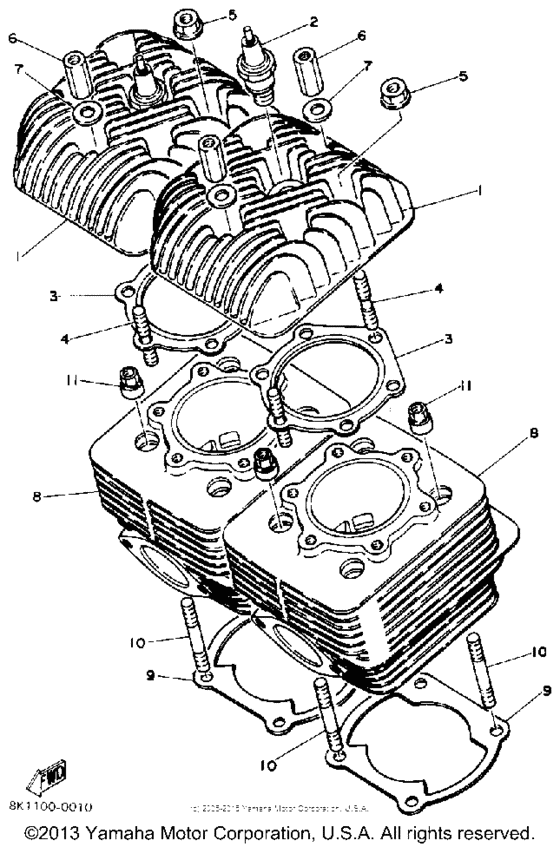

Cylinder Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8R6-11111-00-00 Head, Cylinder 1UR STD |
8R6-11111-00-00 |
from US $115.23 |
||
|
1
|
1
8H8-11111-00-00
Head, Cylinder 1
AP |
8H8-11111-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
2
|
2
NGK-BR9EV-01-PC Plug, Spark (Ngk Br9Evx)4PK |
NGK-BR9EV-01-PC |
US $14.83 |
||
| replacement | |||||
|
2
|
2
BR9-EIX00-00-00 BR9EIX NGK 4PK4PK |
BR9-EIX00-00-00 |
US $66.68 |
||
|
3
|
3
8H8-11181-01-00 Gasket, Cylinder Head 1 |
8H8-11181-01-00 |
from US $11.48 |
||
| replacement | |||||
|
3
|
3
83R-11181-00-00 Gasket, Cylinder Head 1 |
83R-11181-00-00 |
from US $11.48 |
||
|
4
|
4
90116-08104-00 Bolt, Stud |
90116-08104-00 |
from US $6.66 |
||
|
5
|
5
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.07 |
||
| replacements | |||||
|
5
|
5
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.07 |
||
|
5
|
5
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
6
|
6
90179-08269-00 Nut |
90179-08269-00 |
from US $6.66 |
||
|
7
|
7
90201-08100-00 Washer, Plate |
90201-08100-00 |
from US $2.69 |
||
|
8
|
8
8R6-11311-00-00
Cylinder 1
UR STD |
8R6-11311-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
UR STD |
999-99999-99-00 |
— | ||
|
8
|
8
8H8-11311-00-00
Cylinder 1
AP |
8H8-11311-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
9
|
9
89N-11351-00-00 Gasket, Cylinder |
89N-11351-00-00 |
from US $2.69 |
||
|
10
|
10
90116-08302-00 Bolt, Stud |
90116-08302-00 |
from US $3.26 |
||
|
11
|
11
90179-08268-00 Nut |
90179-08268-00 |
from US $9.07 |
||
