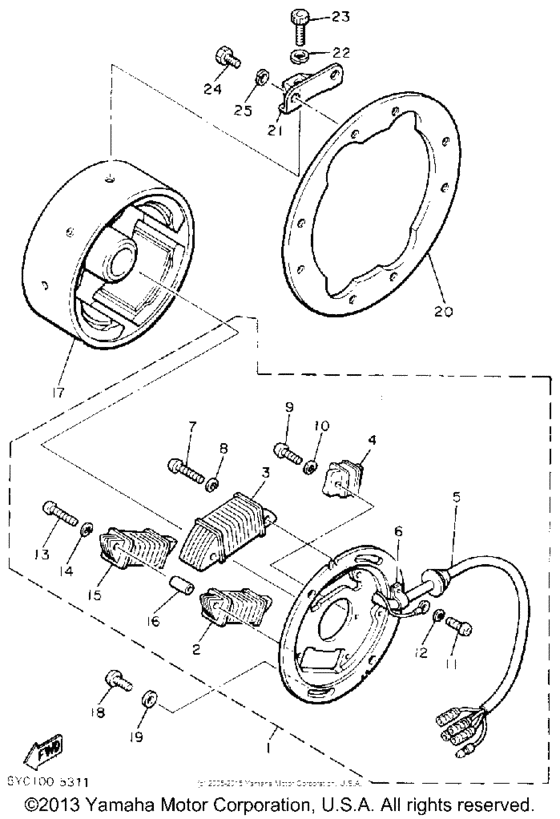

Generator Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8V8-85510-20-00
Stator Assembly
|
8V8-85510-20-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
86M-85511-00-00 Coil, Source (8T0-85511-20)8T0-85511-20 |
86M-85511-00-00 |
from US $122.63 |
||
|
3
|
3
8G8-85513-20-00
Coil, Lighting 1
|
8G8-85513-20-00 |
— | ||
|
4
|
4
82M-85580-20-00 Coil, Pulser (8N5-85580-20)8N5-85580-20 |
82M-85580-20-00 |
US $185.09 |
||
|
5
|
5
8W0-85515-20-00
Lead Wire Assembly (8V0-85515
8V0-85515 |
8W0-85515-20-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
8V0-85515 |
999-99999-99-00 |
— | ||
|
6
|
6
445-81328-20-00 Clamp |
445-81328-20-00 |
from US $3.54 |
||
|
7
|
7
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
7
|
7
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
7
|
7
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
9
|
9
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
10
|
10
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
10
|
10
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
11
|
11
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
985-01050-40-00
Screw, Pan Head
|
985-01050-40-00 |
— | ||
| replacements | |||||
|
13
|
13
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
13
|
13
98580-05540-00 Screw,panhead (Eg9) |
98580-05540-00 |
from US $3.12 |
||
|
14
|
14
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
15
|
15
82M-85514-20-00
Coil, Lighting 2 (8V0-85514-2
8V0-85514-2 |
82M-85514-20-00 |
— | ||
|
16
|
16
8T0-85519-20-00
Spacer
|
8T0-85519-20-00 |
— | ||
|
17
|
17
8J9-85550-20-00
Rotor Assembly (8K1-85550-20)
8K1-85550-20 |
8J9-85550-20-00 |
— | ||
|
18
|
18
98980-06016-00 Screw, Bind (705) |
98980-06016-00 |
from US $1.42 |
||
|
19
|
19
90201-06043-00 Washer, Plate |
90201-06043-00 |
from US $1.28 |
||
|
20
|
20
8H8-81891-00-00
Gear, Ring
|
8H8-81891-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
8H8-81895-00-00
Stay, Ring Gear
|
8H8-81895-00-00 |
— | ||
|
22
|
22
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
23
|
23
90110-08028-00
Bolt, Hex Skt Headsocket Head
|
90110-08028-00 |
— | ||
|
24
|
24
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
24
|
24
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
