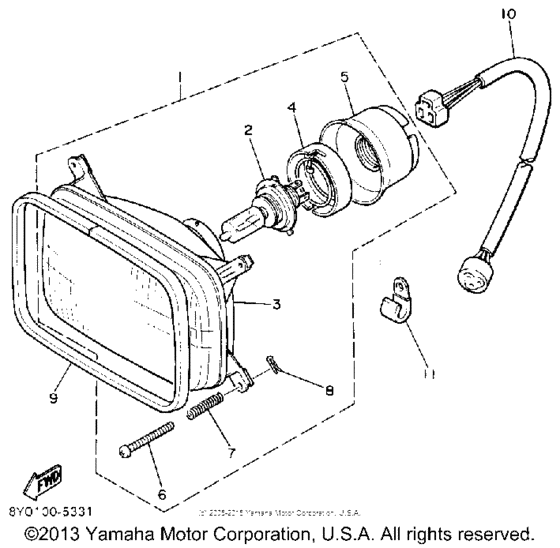

Headlight Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8M6-84310-00-00
Headlight Unit Assy
|
8M6-84310-00-00 |
— | ||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
12V-60/55W HALOGEN |
5V2-84314-00-XX |
— | ||
| replacements | |||||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V-60/55W HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight12V-60/55W HALOGEN |
5VK-H4314-00-00 |
US $42.42 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight12V-60/55W HALOGEN |
8V0-84314-10-00 |
from US $42.42 |
||
|
3
|
3
8K4-84320-00-00
Lens Assembly
|
8K4-84320-00-00 |
— | ||
|
4
|
4
8A7-84312-00-00 Holder, Socket |
8A7-84312-00-00 |
from US $11.76 |
||
|
5
|
5
8A7-84397-01-00 Cover, Socket |
8A7-84397-01-00 |
from US $13.03 |
||
|
6
|
6
8M6-84331-00-00 Screw, Rim Adjusting |
8M6-84331-00-00 |
from US $7.08 |
||
|
7
|
7
8A5-84332-00-00 Spring, Adjust Screw |
8A5-84332-00-00 |
from US $1.56 |
||
|
8
|
8
8K4-84374-00-00 Clip |
8K4-84374-00-00 |
from US $1.56 |
||
|
9
|
9
8T7-84366-00-00 Damper, Headlight 1 |
8T7-84366-00-00 |
US $7.88 |
||
|
10
|
10
83W-84359-00-00
Cord, Headlight
|
83W-84359-00-00 |
— | ||
|
11
|
11
90465-08028-00 Clamp |
90465-08028-00 |
from US $3.40 |
||
