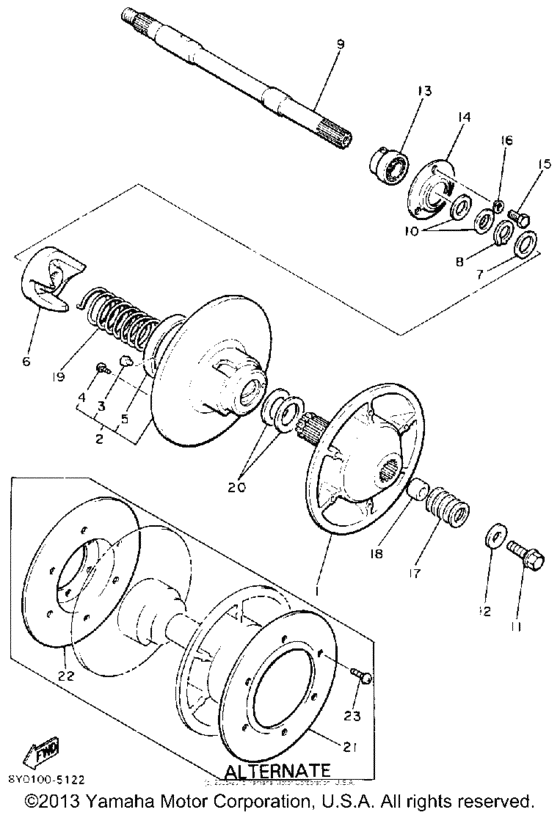

Secondary sheave Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
80R-17660-01-00 Secondary Fixed Sheave Comp |
80R-17660-01-00 |
from US $317.73 |
||
| replacement | |||||
|
1
|
1
89N-17660-00-00 Secondary Fixed Sheave Comp |
89N-17660-00-00 |
from US $317.73 |
||
|
2
|
2
80R-17670-01-00 Sec.sliding SheaveUR STD |
80R-17670-01-00 |
US $344.11 |
||
|
2
|
2
81G-17670-10-00
Sec Sliding Sheave
AP |
81G-17670-10-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
3
|
3
8X6-17688-00-00 Shoe, Ramp |
8X6-17688-00-00 |
from US $7.08 |
||
|
4
|
4
90154-06036-00 Screw, Bind |
90154-06036-00 |
from US $1.42 |
||
| replacements | |||||
|
4
|
4
98907-06012-00 Screw, Bind |
98907-06012-00 |
from US $1.42 |
||
|
4
|
4
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
5
|
5
90380-90117-00 Bush, Bimetal Formed (90384-90090384-9 UR STD |
90380-90117-00 |
US $65.32 |
||
|
6
|
6
8U7-17684-01-00 Seat, Sec SpringUR STD |
8U7-17684-01-00 |
US $65.41 |
||
|
6
|
6
8V0-17684-00-00
Seat, Secondary Spring
AP |
8V0-17684-00-00 |
— | ||
|
7
|
7
90201-34684-00
Washer, Plate
|
90201-34684-00 |
— | ||
|
8
|
8
93440-34170-00 Circlip |
93440-34170-00 |
from US $3.40 |
||
|
9
|
9
82M-17681-00-00 Shaft, Secondary |
82M-17681-00-00 |
US $348.37 |
||
|
10
|
10
90201-25526-00 Washer, Plate (T2.0)UR |
90201-25526-00 |
from US $2.24 |
||
|
10
|
10
90201-25527-00 Washer, Plate (T1.0)UR |
90201-25527-00 |
from US $1.50 |
||
|
10
|
10
90201-252F1-00 Washer, Plate (T0.5)UR |
90201-252F1-00 |
from US $1.56 |
||
|
11
|
11
90105-14175-00
Bolt, Washer Based
|
90105-14175-00 |
— | ||
|
12
|
12
90201-140A6-00 Washer, Plate |
90201-140A6-00 |
US $3.83 |
||
| replacement | |||||
|
12
|
12
90201-14022-00 Washer, Plate |
90201-14022-00 |
from US $3.83 |
||
|
13
|
13
8L8-17678-00-00 Bearing |
8L8-17678-00-00 |
from US $96.52 |
||
| replacement | |||||
|
13
|
13
888-17678-00-00 Bearing |
888-17678-00-00 |
US $139.19 |
||
|
14
|
14
8K4-47631-01-00
Housing, Bearing
|
8K4-47631-01-00 |
— | ||
|
15
|
15
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
90201-225A4-00 Washer, Plate (T=1.0)UR STD |
90201-225A4-00 |
from US $1.28 |
||
|
17
|
17
90201-222F0-00 Washer, Plate (T=0.5)UR |
90201-222F0-00 |
from US $1.84 |
||
|
18
|
18
90387-147A8-00 Collar |
90387-147A8-00 |
US $10.64 |
||
|
19
|
19
90508-50571-00 Spring, Torsion |
90508-50571-00 |
from US $6.38 |
||
|
20
|
20
90201-345G2-00 Washer, Plate |
90201-345G2-00 |
from US $3.68 |
||
|
21
|
21
81H-17665-00-00 Plate 1AP |
81H-17665-00-00 |
US $13.77 |
||
| replacement | |||||
|
21
|
21
81H-17665-01-00 Plate 1AP |
81H-17665-01-00 |
US $13.75 |
||
|
22
|
22
81H-17675-00-00
Plate 2
AP |
81H-17675-00-00 |
— | ||
| replacement | |||||
|
22
|
22
81H-17675-01-00
Plate 2
AP |
81H-17675-01-00 |
— | ||
|
23
|
23
90150-05022-00 Screw, Pan HeadAP |
90150-05022-00 |
from US $1.42 |
||
| replacement | |||||
|
23
|
23
985-07050-08-00 Screw, Pan HeadAP |
985-07050-08-00 |
from US $1.07 |
||
