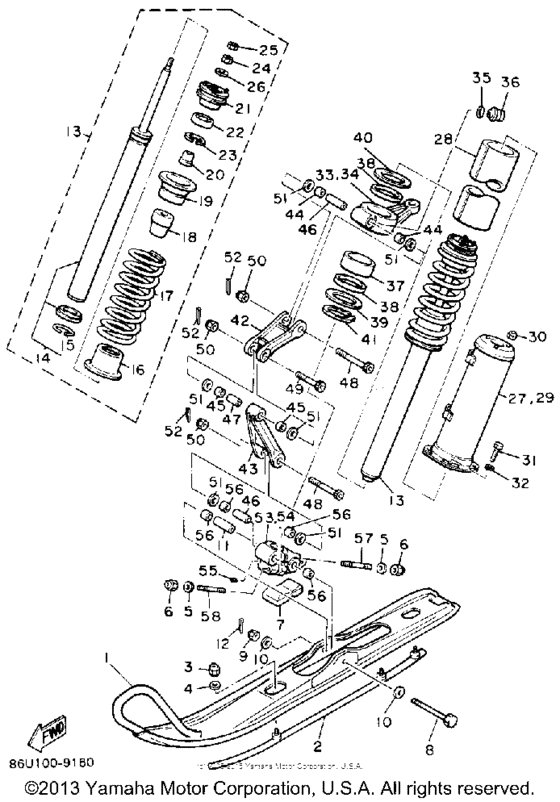

Ski Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82M-23710-03-00 Ski 1 |
82M-23710-03-00 |
from US $281.11 |
||
| replacement | |||||
|
1
|
1
86M-23710-00-00 Ski Comp. 1 |
86M-23710-00-00 |
US $346.50 |
||
|
2
|
2
82W-23731-01-XX
Ski Runner, 1
|
82W-23731-01-XX |
— | ||
|
3
|
3
95616-08100-00 Nut, U (5V6) |
95616-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
3
|
3
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
4
|
4
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
4
|
4
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
5
|
5
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
5
|
5
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
6
|
6
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
6
|
6
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
7
|
7
82M-23743-00-00
Stopper 1
|
82M-23743-00-00 |
— | ||
|
8
|
8
90102-10050-00 Bolt, With Hole |
90102-10050-00 |
from US $11.33 |
||
|
9
|
9
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
9
|
9
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
10
|
10
92906-10600-00 Washer, Plate |
92906-10600-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
92907-10600-00 Washer, Plate |
92907-10600-00 |
from US $1.07 |
||
|
11
|
11
90387-106J3-00 Collar |
90387-106J3-00 |
from US $4.39 |
||
|
12
|
12
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
13
|
13
84L-2376A-00-00
Absorber Assembly 1
|
84L-2376A-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
84L-22401-00-00
Damper Sub-Assembly
|
84L-22401-00-00 |
— | ||
|
15
|
15
93440-36087-00
Circlip, Outer
|
93440-36087-00 |
— | ||
|
16
|
16
8L9-23777-00-00
Seat, Spring 2
|
8L9-23777-00-00 |
— | ||
|
17
|
17
905-01756-12-00 Spring, Compression |
905-01756-12-00 |
from US $37.58 |
||
|
18
|
18
8L0-22493-00-00
Bump, Stop
|
8L0-22493-00-00 |
— | ||
|
19
|
19
8L0-23788-00-00 Plate, Back UpUP |
8L0-23788-00-00 |
from US $20.83 |
||
| replacement | |||||
|
19
|
19
8AB-23788-00-00
Plate, Back Up
UP |
8AB-23788-00-00 |
— | ||
|
20
|
20
90387-100A5-00
Collar
|
90387-100A5-00 |
— | ||
|
21
|
21
8L0-2376H-00-00
Holder, Bearing
|
8L0-2376H-00-00 |
— | ||
|
22
|
22
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
23
|
23
99009-35500-00 Circlip |
99009-35500-00 |
from US $1.56 |
||
|
24
|
24
90170-08220-00 Nut |
90170-08220-00 |
US $3.68 |
||
| replacement | |||||
|
24
|
24
90170-08216-00 Nut, Hexagon |
90170-08216-00 |
from US $2.88 |
||
|
25
|
25
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
25
|
25
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
26
|
26
90201-08107-00 Washer, Plate |
90201-08107-00 |
from US $1.70 |
||
| replacement | |||||
|
26
|
26
90201-086A3-00 Washer, Plate |
90201-086A3-00 |
from US $1.70 |
||
|
27
|
27
8L9-2376J-00-00
Holder, Absorber
|
8L9-2376J-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
8L0-2376R-00-00 Protector |
8L0-2376R-00-00 |
from US $4.11 |
||
|
29
|
29
8M6-77553-00-00
Protector 3
|
8M6-77553-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
30
|
30
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
31
|
31
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
31
|
31
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
32
|
32
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
33
|
33
8U7-23851-00-00
Arm, Outside 1
|
8U7-23851-00-00 |
— | ||
|
34
|
34
8U7-23852-00-00
Arm, Outside 2
|
8U7-23852-00-00 |
— | ||
|
35
|
35
90201-067F9-00 Washer, Plate |
90201-067F9-00 |
from US $1.56 |
||
|
36
|
36
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
37
|
37
903-84531-75-00 Bush, Bimetal Formed |
903-84531-75-00 |
from US $16.86 |
||
|
38
|
38
93109-53036-00 Oil Seal |
93109-53036-00 |
from US $5.81 |
||
|
39
|
39
90201-536A1-00 Washer, Plate (T=1.0) |
90201-536A1-00 |
from US $3.26 |
||
|
40
|
40
90201-535H6-00 Washer, Plate (T=2.0) |
90201-535H6-00 |
from US $3.26 |
||
|
41
|
41
93410-52061-00 Circlip |
93410-52061-00 |
from US $3.54 |
||
|
42
|
42
8L0-2382E-01-00 Arm, Front 1 |
8L0-2382E-01-00 |
from US $84.97 |
||
|
43
|
43
8L0-2382F-00-00 Arm, Front 2 |
8L0-2382F-00-00 |
from US $44.59 |
||
|
44
|
44
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.11 |
||
|
45
|
45
903-84140-96-00 Bush, Bimetal Formed |
903-84140-96-00 |
from US $3.97 |
||
|
46
|
46
90387-101Y9-00 Collar |
90387-101Y9-00 |
from US $5.10 |
||
|
47
|
47
90387-100A4-00 Collar |
90387-100A4-00 |
from US $3.32 |
||
|
48
|
48
90102-10039-00 Bolt, With Hole |
90102-10039-00 |
from US $4.11 |
||
|
49
|
49
90102-10038-00 Bolt, With Hole |
90102-10038-00 |
US $11.86 |
||
|
50
|
50
95706-10300-00 Nut, Nylon |
95706-10300-00 |
from US $2.55 |
||
| replacement | |||||
|
50
|
50
95707-10300-00 Nut, Flange |
95707-10300-00 |
from US $1.34 |
||
|
51
|
51
90202-14037-00 Washer, Plate |
90202-14037-00 |
from US $1.66 |
||
|
52
|
52
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
52
|
52
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
53
|
53
84M-2376E-00-00 Bracket 1 |
84M-2376E-00-00 |
from US $163.03 |
||
|
54
|
54
84M-2377E-00-00 Bracket 2 |
84M-2377E-00-00 |
from US $163.03 |
||
|
55
|
55
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
56
|
56
90384-14091-00 Bush, Bimetal Formed |
90384-14091-00 |
from US $4.11 |
||
|
57
|
57
95611-08655-00 Bolt, Stud |
95611-08655-00 |
from US $3.35 |
||
| replacement | |||||
|
57
|
57
95617-08655-00 Bolt, Stud |
95617-08655-00 |
from US $5.81 |
||
|
58
|
58
95611-08640-00 Bolt, Stud |
95611-08640-00 |
from US $3.29 |
||
| replacement | |||||
|
58
|
58
95617-08640-00 Bolt, Stud 3 |
95617-08640-00 |
from US $4.53 |
||
