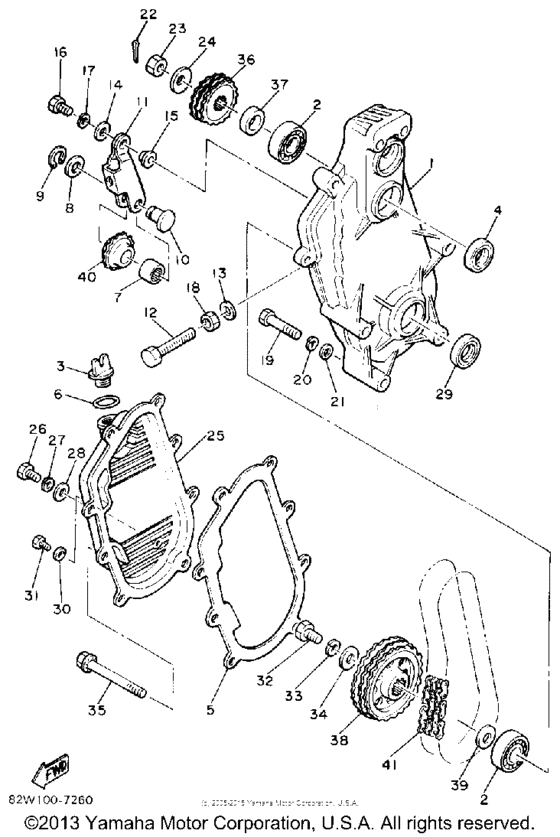

Track drive (2) Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
999-99022-03-00
Housing, Chain (8L9-47541-00-00
8L9-47541-00-00 |
999-99022-03-00 |
— | ||
|
2
|
2
93306-20570-00 Bearing (80N) |
93306-20570-00 |
from US $23.66 |
||
|
3
|
3
1RG-15363-00-00 Plug, Oil |
1RG-15363-00-00 |
from US $17.14 |
||
| replacement | |||||
|
3
|
3
3Y1-15363-10-00 Plug, Oil |
3Y1-15363-10-00 |
from US $17.14 |
||
|
4
|
4
93102-27204-00 Oil Seal |
93102-27204-00 |
from US $5.10 |
||
|
5
|
5
86M-47592-00-00 Gasket |
86M-47592-00-00 |
from US $25.50 |
||
| replacement | |||||
|
5
|
5
86M-47592-01-00 |
86M-47592-01-00 |
US $12.78 |
||
|
6
|
6
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
7
|
7
933-15212-27-00 Bearing |
933-15212-27-00 |
from US $14.88 |
||
|
8
|
8
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
9
|
9
99009-12400-00 Circlip |
99009-12400-00 |
from US $1.56 |
||
|
10
|
10
90249-12135-00
Pin, Specl Shape
|
90249-12135-00 |
— | ||
|
11
|
11
8K4-47613-00-00 Holder |
8K4-47613-00-00 |
from US $11.32 |
||
|
12
|
12
90101-10357-00 Bolt |
90101-10357-00 |
from US $7.37 |
||
|
13
|
13
90210-10004-00 Washer, Seal |
90210-10004-00 |
from US $3.83 |
||
|
14
|
14
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
15
|
15
90387-08301-00 Collar |
90387-08301-00 |
from US $1.98 |
||
|
16
|
16
97312-08025-00 Bolt |
97312-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
16
|
16
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
18
|
18
95303-10700-00 Nut |
95303-10700-00 |
US $7.37 |
||
| replacement | |||||
|
18
|
18
95380-10700-00 Nut |
95380-10700-00 |
from US $7.37 |
||
|
19
|
19
97522-08765-00 Bolt, With Washer |
97522-08765-00 |
US $7.93 |
||
| replacement | |||||
|
19
|
19
90119-08015-00 Bolt, With Washer |
90119-08015-00 |
from US $4.14 |
||
|
20
|
20
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
21
|
21
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
22
|
22
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
22
|
22
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
23
|
23
90170-20211-00 Nut |
90170-20211-00 |
from US $4.11 |
||
| replacement | |||||
|
23
|
23
901-70204-13-00
Nut(4Ga)
|
901-70204-13-00 |
— | ||
|
24
|
24
90208-20008-00 Washer, Conical Spring |
90208-20008-00 |
from US $1.70 |
||
|
25
|
25
82M-47543-00-00 Cap, Housing |
82M-47543-00-00 |
from US $119.47 |
||
|
26
|
26
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
26
|
26
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
26
|
26
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
28
|
28
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
29
|
29
93102-25081-00 Oil Seal |
93102-25081-00 |
from US $3.64 |
||
|
30
|
30
90210-06006-00 Washer, Seal |
90210-06006-00 |
from US $1.98 |
||
|
31
|
31
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
31
|
31
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
32
|
32
970-11100-25-00
Bolt
|
970-11100-25-00 |
— | ||
| replacement | |||||
|
32
|
32
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
33
|
33
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
33
|
33
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
34
|
34
90201-10742-00 Washer, Plate |
90201-10742-00 |
from US $3.83 |
||
|
35
|
35
95811-08090-00 Bolt, Flange (2K7) |
95811-08090-00 |
from US $5.24 |
||
| replacement | |||||
|
35
|
35
95817-08090-00 Bolt, Flange |
95817-08090-00 |
from US $5.24 |
||
|
36
|
36
829-17682-70-00 Sprkt, Chain Dr 17T (17T)Sprocket, chain drive (17t) DR 17T 17T UR STD |
829-17682-70-00 |
US $85.32 |
||
|
36
|
36
829-17682-50-00
Sprkt, Chain Dr 15T (878-17682-
DR 15T 878-17682- AP |
829-17682-50-00 |
— | ||
|
36
|
36
829-17682-60-00
Sprkt, Chain Dr 16T (16T)
DR 16T 16T AP |
829-17682-60-00 |
— | ||
|
36
|
36
829-17682-80-00 Sprkt, Chain Dr 18T (18T)Sprocket, chain drive (18t) DR 18T 18T AP |
829-17682-80-00 |
US $85.32 |
||
|
36
|
36
829-17682-90-00 Sprkt, Chain Dr 19T (878-17682-Sprocket, chain drive (19t) DR 19T 878-17682- AP |
829-17682-90-00 |
US $85.32 |
||
|
36
|
36
829-17682-00-00
Sprkt, Chain Dr 20T (20T)
DR 20T 20T AP |
829-17682-00-00 |
— | ||
| replacement | |||||
|
36
|
36
999-99999-99-00
Not Available
DR 20T 20T AP |
999-99999-99-00 |
— | ||
|
36
|
36
8U9-17693-10-00
Sprocket, Chain Dr (878-17693-1
DR 878-17693-1 AP |
8U9-17693-10-00 |
— | ||
|
36
|
36
8U9-17693-20-00
Sprocket, Chain Dr (878-17693-2
DR 878-17693-2 AP |
8U9-17693-20-00 |
— | ||
|
37
|
37
90387-25798-00 Collar |
90387-25798-00 |
US $13.39 |
||
|
38
|
38
8U9-47587-00-00
Sprocket, Chn Drvn (31T)
31T UR STD |
8U9-47587-00-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
31T UR STD |
999-99999-99-00 |
— | ||
|
38
|
38
878-47548-90-00
Sprocket, Chn Drvn (29T)
29T AP |
878-47548-90-00 |
— | ||
| replacements | |||||
|
38
|
38
8U9-47548-90-00
Sprocket, Chn Drvndriven (29T)
29T AP |
8U9-47548-90-00 |
— | ||
|
38
|
38
999-99999-99-00
Not Available
29T AP |
999-99999-99-00 |
— | ||
|
38
|
38
8U9-47587-10-00
Sprocket, Chn Drvn (888-47587-0
888-47587-0 AP |
8U9-47587-10-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
888-47587-0 AP |
999-99999-99-00 |
— | ||
|
38
|
38
8U9-47587-30-00
Sprocket, Chn Drvn (878-47587-2
878-47587-2 AP |
8U9-47587-30-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
878-47587-2 AP |
999-99999-99-00 |
— | ||
|
39
|
39
90201-25526-00 Washer, Plate (T2.0) |
90201-25526-00 |
from US $2.24 |
||
|
40
|
40
8L0-47612-00-00
Wheel
|
8L0-47612-00-00 |
— | ||
|
41
|
41
94890-05066-00
Chain
UR STD |
94890-05066-00 |
— | ||
|
41
|
41
94890-05064-00
Chain
AP |
94890-05064-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
AP |
999-99999-99-00 |
— | ||
|
41
|
41
94890-05068-00
Chain
AP |
94890-05068-00 |
— | ||
|
41
|
41
94890-05070-00
Chain
AP |
94890-05070-00 |
— | ||
