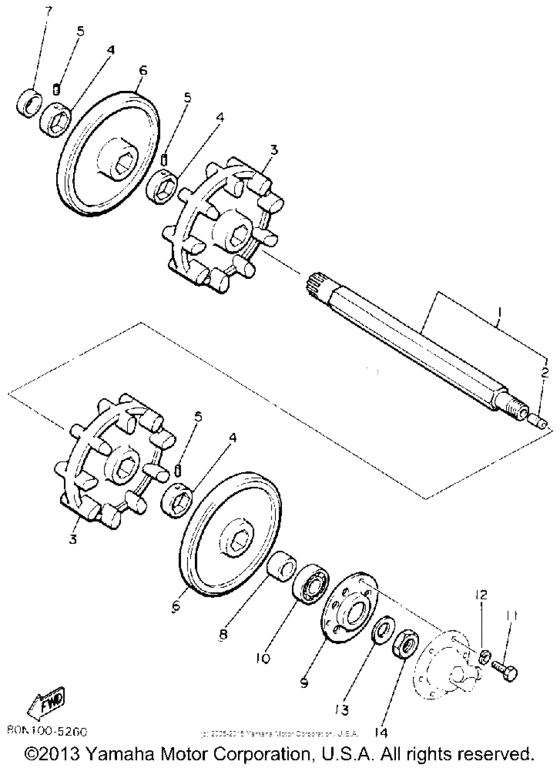

Track drive (1) Diagram Yamaha SR540 SRV
- Model code
- SR540
- Engine Capacity
- 540
- Year
- 1990
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8L0-W4751-00-00 Axle, Front |
8L0-W4751-00-00 |
from US $150.60 |
||
|
2
|
2
8K4-47577-00-00 Connector |
8K4-47577-00-00 |
from US $5.10 |
||
|
3
|
3
8R6-W4753-01-00 Wheel, Sprocket 1 |
8R6-W4753-01-00 |
US $215.41 |
||
|
4
|
4
8K1-47526-00-00 Collar |
8K1-47526-00-00 |
US $24.77 |
||
|
5
|
5
90113-06039-00 Bolt, Set (8K2) |
90113-06039-00 |
from US $1.84 |
||
|
6
|
6
8L9-47534-01-00
Wheel, Guide 1
|
8L9-47534-01-00 |
— | ||
|
7
|
7
90387-514Y2-00 Collar |
90387-514Y2-00 |
from US $9.92 |
||
|
8
|
8
90387-220A6-00
Collar
|
90387-220A6-00 |
— | ||
|
9
|
9
8K4-47551-00-00 Housing, Front Axle |
8K4-47551-00-00 |
from US $21.39 |
||
|
10
|
10
93306-00420-00 Bearing |
93306-00420-00 |
from US $20.12 |
||
|
11
|
11
97011-08016-00 Bolt(2Vy) |
97011-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
12
|
12
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
13
|
13
90208-22001-00 Washer, Conical Spring |
90208-22001-00 |
from US $4.39 |
||
|
14
|
14
90170-22094-00 Nut |
90170-22094-00 |
from US $7.94 |
||
