Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 88R-W8291-00-00 Lever Holder Assy (Left)	88R-W8291-00-00	from US $82.07
2	2 8H8-83912-00-00 Lever 1	8H8-83912-00-00	from US $15.30
3	3 90157-05057-00 Screw, Pan Head(41N)	90157-05057-00	from US $1.98
4	4 90157-05113-00 Screw, Pan Head	90157-05113-00	from US $1.35
	replacement
4	4 8R4-82113-00-00 Screw	8R4-82113-00-00	from US $1.21
5	5 95701-05300-00 Nut, Flange	95701-05300-00	US $1.42
	replacement
5	5 95707-05300-00 Nut, Flange	95707-05300-00	from US $1.42
6	6 82A-83930-00-00 Lever Lock Assembly (8K4-8393 8K4-8393	82A-83930-00-00	US $34.58
7	7 802-83913-00-00 Collar, Lever 1	802-83913-00-00	from US $1.70
8	8 97780-30312-00 Screw, O Head Tapping	97780-30312-00	—
9	9 92990-05200-00 Washer, Plain	92990-05200-00	from US $1.34
10	10 8H8-83950-01-00 Beam Switch Assy	8H8-83950-01-00	from US $50.70
11	11 88R-82530-00-00 Stop Switch Assy	88R-82530-00-00	from US $15.87
12	12 84R-82720-00-00 Lever Holder Assembly (Right)	84R-82720-00-00	—
13	13 8V0-42138-00-00 Lever, Throttle	8V0-42138-00-00	from US $32.16
14	14 84R-82575-09-00 Engine Stop Switch Assembly	84R-82575-09-00	—
15	15 8R6-83928-00-00 Screw	8R6-83928-00-00	from US $1.98
16	16 4A5-85720-00-00 Oil Level Gauge Assy	4A5-85720-00-00	from US $41.29
	replacement
16	16 4HV-85720-03-00 Oil Level Gauge Assy	4HV-85720-03-00	from US $44.06
17	17 341-26397-01-00 Band	341-26397-01-00	—
	replacements
17	17 437-83936-01-00 Band, Switch Cord	437-83936-01-00	from US $1.56
17	17 437-83936-11-00 Band, Switch Cord	437-83936-11-00	from US $1.56

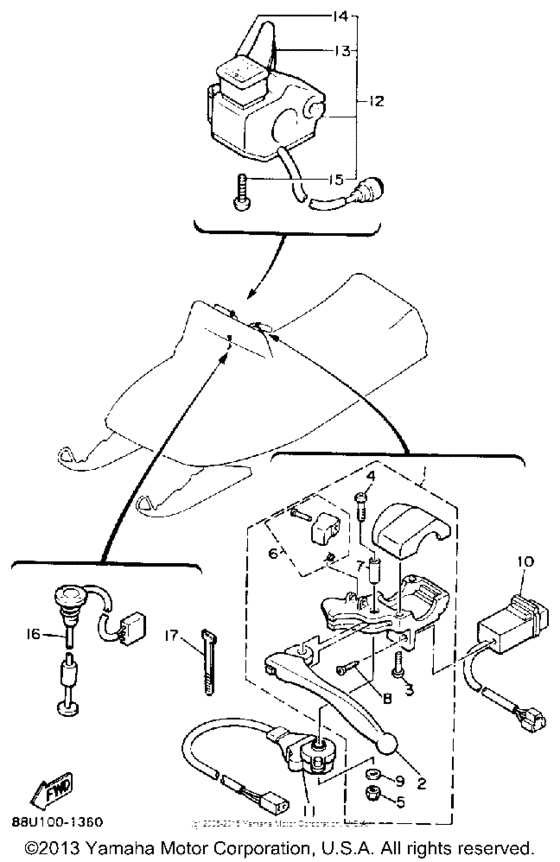

Handle switch & lever Diagram Yamaha SR540 SRV USA 14591214-811172
