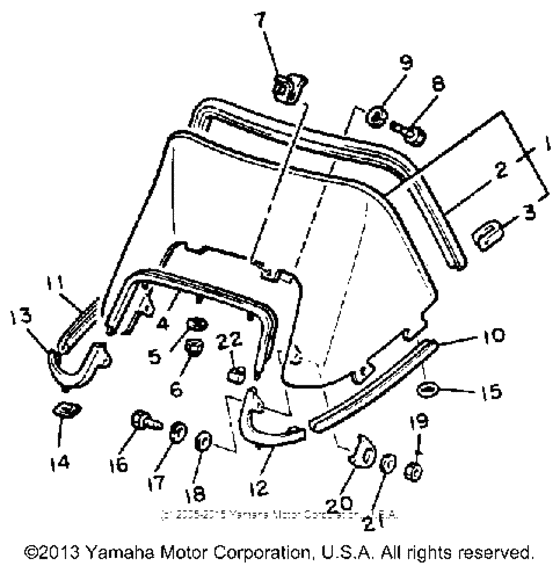

Windshield Diagram Yamaha SR540 SRV
- Model code
- SR540RSR
- Engine Capacity
- 540
- Year
- 1991
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8L0-77210-00-XX
Windshield (8L0-77210-00)
8L0-77210-00 |
8L0-77210-00-XX |
— | ||
|
2
|
2
87S-77213-00-00 Trim, Upper |
87S-77213-00-00 |
from US $25.70 |
||
| replacement | |||||
|
2
|
2
87K-77213-00-00
Trim, Upper
|
87K-77213-00-00 |
— | ||
|
3
|
3
80V-77223-00-00 Fastener |
80V-77223-00-00 |
US $7.74 |
||
|
4
|
4
8L0-77214-00-00
Trim, Lower
|
8L0-77214-00-00 |
— | ||
|
5
|
5
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
5
|
5
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
5
|
5
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
6
|
6
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
6
|
6
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
7
|
7
8K4-77222-00-00
Bracket, Wndshld R
|
8K4-77222-00-00 |
— | ||
|
8
|
8
970-11060-10-00
Bolt
|
970-11060-10-00 |
— | ||
| replacement | |||||
|
8
|
8
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
10
|
10
8L0-77215-00-00
Trim 3
|
8L0-77215-00-00 |
— | ||
|
11
|
11
8L0-77216-00-00
Trim 4
|
8L0-77216-00-00 |
— | ||
|
12
|
12
8L0-77225-00-00
Trim 5
|
8L0-77225-00-00 |
— | ||
|
13
|
13
8L0-77226-00-00 Trim 6 |
8L0-77226-00-00 |
from US $34.78 |
||
|
14
|
14
90183-05019-00 Nut, Spring |
90183-05019-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90183-05068-00 Nut, Spring |
90183-05068-00 |
from US $1.70 |
||
|
15
|
15
82H-77223-00-00 Fastner |
82H-77223-00-00 |
from US $1.84 |
||
|
16
|
16
97001-05016-00 Bolt |
97001-05016-00 |
from US $0.97 |
||
| replacement | |||||
|
16
|
16
970-95050-16-00 Bolt |
970-95050-16-00 |
from US $1.55 |
||
|
17
|
17
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
18
|
18
90201-05033-00 Washer, Plate |
90201-05033-00 |
from US $1.28 |
||
|
19
|
19
95306-05800-00 Nut |
95306-05800-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
95307-05800-00 Nut |
95307-05800-00 |
from US $1.56 |
||
|
20
|
20
8L9-77116-00-00
Washer, Special
|
8L9-77116-00-00 |
— | ||
|
21
|
21
90201-06643-00 Washer, Plate |
90201-06643-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-06045-00 Washer, Plate |
90201-06045-00 |
from US $1.28 |
||
|
22
|
22
8L0-77136-00-00 Clamp 2 |
8L0-77136-00-00 |
US $10.35 |
||
