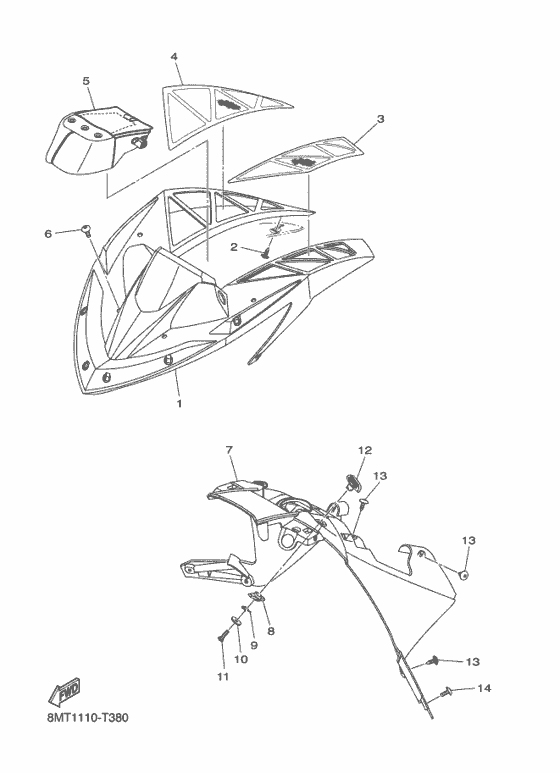

Instrument panel Diagram Yamaha SRS10/ SW10 Sidewinder M-TX 162 LE
- Model code
- 8MT1
- Engine Capacity
- 1000
- Year
- 2018
- Sales region
- Canada (010)
- Colour
- Bluish White Solid 1
- Color Variant
- A
- Model
- Sidewinder M-TX 162 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8MT-K7712-00-00 Panel, Instrument |
8MT-K7712-00-00 |
US $214.20 |
||
| replacement | |||||
|
1
|
1
8MT-K7712-01-00 PANEL,INSTRUMENT |
8MT-K7712-01-00 |
US $312.46 |
||
|
2
|
2
8KC-RA290-00-00 SCREW, 10-12X3/4 |
8KC-RA290-00-00 |
US $12.70 |
||
|
3
|
3
8MT-K715D-00-00 Screen, Intake Duct 1 |
8MT-K715D-00-00 |
US $41.31 |
||
|
4
|
4
8MT-K715E-00-00 Screen, Intake Duct 2 |
8MT-K715E-00-00 |
US $41.31 |
||
|
5
|
5
8MT-RAY39-00-00 Bag, Goggle |
8MT-RAY39-00-00 |
US $107.08 |
||
| replacement | |||||
|
5
|
5
SMA-8LR53-00-00 BAG GOGGLE HOLDER |
SMA-8LR53-00-00 |
US $68.63 |
||
|
6
|
6
8JP-RA253-00-00 Screw, M6-1.0X18 |
8JP-RA253-00-00 |
US $10.36 |
||
|
7
|
7
8KC-K7711-00-00 PANEL, INSTRUMENT |
8KC-K7711-00-00 |
US $97.69 |
||
|
8
|
8
8KC-K7153-00-00 PLATE, BACK UP 1 |
8KC-K7153-00-00 |
US $2.38 |
||
|
9
|
9
8JP-RAC15-00-00 CLIP, 6 |
8JP-RAC15-00-00 |
US $11.05 |
||
|
10
|
10
8JP-RA429-00-00 WASHER |
8JP-RA429-00-00 |
US $7.90 |
||
|
11
|
11
8JP-RA2A2-00-00 Screw, 13 |
8JP-RA2A2-00-00 |
US $3.24 |
||
|
12
|
12
8KC-K7324-00-00 KNOB |
8KC-K7324-00-00 |
US $2.50 |
||
|
13
|
13
8KC-RA290-00-00 SCREW, 10-12X3/4 |
8KC-RA290-00-00 |
US $12.70 |
||
|
14
|
14
8JP-RA202-00-00 SCREW, TAPPING 1/4 |
8JP-RA202-00-00 |
US $9.92 |
||
