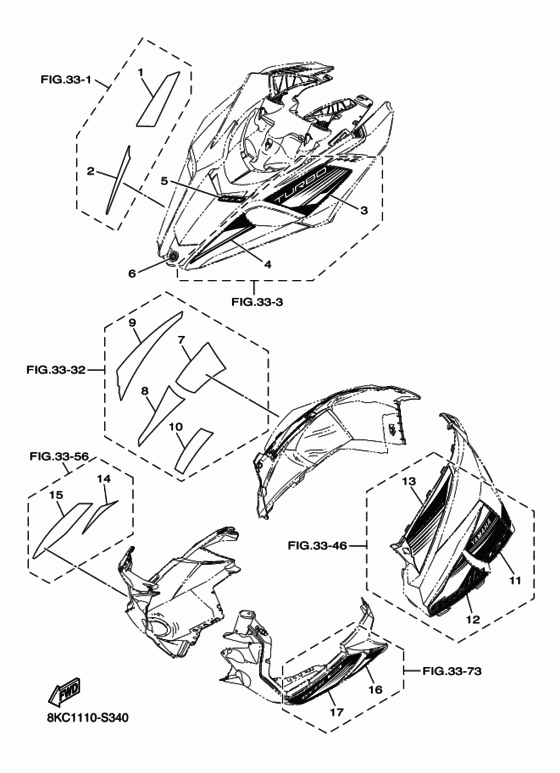

Emblem Diagram Yamaha SRS10/ SW10 Sidewinder M-TX 162 SE
- Model code
- 8KC1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- Canada (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder M-TX 162 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KC-K711M-00-00 GRAPHIC, SHROUD |
8KC-K711M-00-00 |
US $38.43 |
||
|
2
|
2
8KC-K711P-00-00 GRAPHIC, SHROUD 4 |
8KC-K711P-00-00 |
US $16.31 |
||
|
3
|
3
8KC-K711L-00-00 GRAPHIC, SHROUD |
8KC-K711L-00-00 |
US $25.27 |
||
|
4
|
4
8KC-K711N-00-00 GRAPHIC, SHROUD 3 |
8KC-K711N-00-00 |
US $15.12 |
||
|
5
|
5
8KC-K711R-00-00 GRAPHIC, SHROUD CE |
8KC-K711R-00-00 |
US $28.62 |
||
|
6
|
6
5KM-2175B-00-00 Tuning Fork Mark |
5KM-2175B-00-00 |
from US $13.56 |
||
|
7
|
7
8KC-K711F-00-00 GRAPHIC 6 |
8KC-K711F-00-00 |
US $70.16 |
||
|
8
|
8
8KC-K711D-00-00 GRAPHIC 4 |
8KC-K711D-00-00 |
US $27.74 |
||
|
9
|
9
8KC-K711B-00-00 GRAPHIC 2 |
8KC-K711B-00-00 |
US $37.21 |
||
|
10
|
10
8KC-K711W-00-00 GRAPHIC 11 |
8KC-K711W-00-00 |
US $27.74 |
||
|
11
|
11
8KC-K711E-00-00 GRAPHIC 5 |
8KC-K711E-00-00 |
US $45.23 |
||
|
12
|
12
8KC-K711C-00-00 GRAPHIC 3 |
8KC-K711C-00-00 |
US $25.63 |
||
|
13
|
13
8KC-K711A-00-00 GRAPHIC 1 |
8KC-K711A-00-00 |
US $41.60 |
||
|
14
|
14
8KC-K711V-00-00 GRAPHIC 10 |
8KC-K711V-00-00 |
US $6.80 |
||
|
15
|
15
8KC-K711H-00-00 GRAPHIC 8 |
8KC-K711H-00-00 |
US $20.77 |
||
|
16
|
16
8KC-K711U-00-00 GRAPHIC 9 |
8KC-K711U-00-00 |
US $6.80 |
||
|
17
|
17
8KC-K711G-00-00 8LR-K711R-00-00 |
8KC-K711G-00-00 |
US $15.25 |
