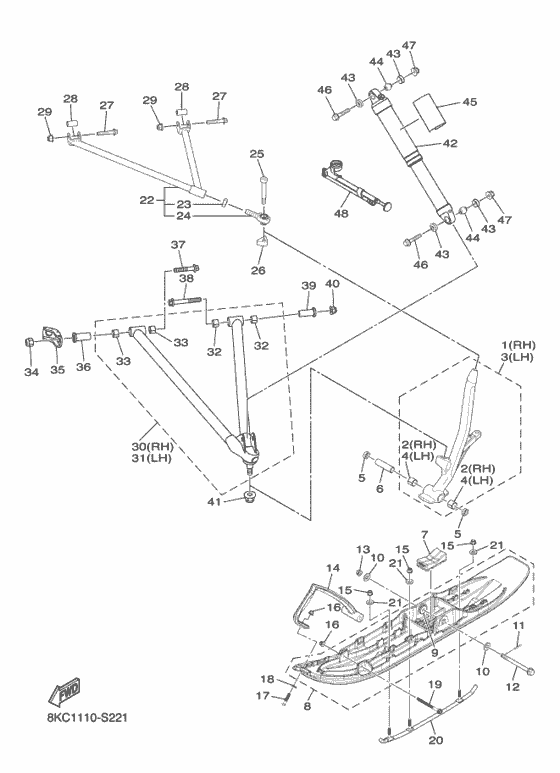

Ski Diagram Yamaha SRS10/ SW10 Sidewinder M-TX 162 SE
- Model code
- 8KC1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- Canada (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder M-TX 162 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KU-F3521-00-00 Knuckle, Steering 2 |
8KU-F3521-00-00 |
US $327.10 |
||
|
2
|
2
8JP-RA806-00-00 Bush, 12Du12 |
8JP-RA806-00-00 |
US $20.34 |
||
|
3
|
3
8KU-F3511-00-00 Knuckle, Steering 1 |
8KU-F3511-00-00 |
US $337.82 |
||
|
4
|
4
8JP-RA806-00-00 Bush, 12Du12 |
8JP-RA806-00-00 |
US $20.34 |
||
|
5
|
5
8JP-RA718-00-00 Collar, 6 |
8JP-RA718-00-00 |
US $18.44 |
||
|
6
|
6
8JP-RA731-00-00 Collar, 75 |
8JP-RA731-00-00 |
US $30.49 |
||
|
7
|
7
8KC-F3743-00-00 STOPPER 1 |
8KC-F3743-00-00 |
US $19.59 |
||
| replacement | |||||
|
7
|
7
8NS-F3743-00-00 STOPPER 1 |
8NS-F3743-00-00 |
US $20.05 |
||
|
8
|
8
8KC-F3710-00-00 SKI COMP 1 - BLACK |
8KC-F3710-00-00 |
US $99.99 |
||
|
9
|
9
8EX-F3754-00-00 Collar 1 |
8EX-F3754-00-00 |
from US $10.80 |
||
| replacements | |||||
|
9
|
9
8JH-23754-00-00 Collar, 1 |
8JH-23754-00-00 |
from US $11.76 |
||
|
9
|
9
8EX-23754-00-00 Collar, 1 |
8EX-23754-00-00 |
from US $11.76 |
||
|
10
|
10
90201-10043-00 Washer, Plate |
90201-10043-00 |
from US $1.33 |
||
|
11
|
11
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
11
|
11
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
12
|
12
90105-10070-00 Bolt, Flange |
90105-10070-00 |
from US $7.65 |
||
|
13
|
13
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
14
|
14
8KC-F3712-10-00 HANDLE MTX, BLUE |
8KC-F3712-10-00 |
US $42.43 |
||
|
15
|
15
8KC-RA358-00-00 NUT, FLG. LOCKING |
8KC-RA358-00-00 |
US $2.27 |
||
|
16
|
16
8KC-F3778-00-00 8KC-RA358-00-00 |
8KC-F3778-00-00 |
US $2.54 |
||
| replacement | |||||
|
16
|
16
8KC-RA358-00-00 NUT, FLG. LOCKING |
8KC-RA358-00-00 |
US $2.27 |
||
|
17
|
17
8KC-F3755-00-00 BOLT, REINFORCEMEN |
8KC-F3755-00-00 |
US $5.76 |
||
|
18
|
18
8KC-F3737-00-00 WASHER 1 |
8KC-F3737-00-00 |
US $1.15 |
||
|
19
|
19
8KC-F3756-00-00 BOLT, REINFORCEMEN |
8KC-F3756-00-00 |
US $9.95 |
||
|
20
|
20
8KC-F3732-00-00 RUNNER 2 |
8KC-F3732-00-00 |
US $35.99 |
||
|
21
|
21
8KC-RA443-00-00 WASHER, 10.98X28.0 |
8KC-RA443-00-00 |
US $4.44 |
||
|
22
|
22
8KC-F354A-00-00 ARM, FRONT UPPER |
8KC-F354A-00-00 |
US $192.78 |
||
|
23
|
23
8KU-F3778-00-00 Nut |
8KU-F3778-00-00 |
US $10.70 |
||
|
24
|
24
8KU-F3841-00-00 Joint, Universal 1 |
8KU-F3841-00-00 |
US $41.31 |
||
|
25
|
25
8KU-F3767-00-00 Bolt |
8KU-F3767-00-00 |
US $9.64 |
||
|
26
|
26
8KU-F3856-00-00 Nut |
8KU-F3856-00-00 |
US $5.27 |
||
|
27
|
27
8KG-RA190-00-00 Bolt, Flange M8X1.25X45 |
8KG-RA190-00-00 |
US $12.44 |
||
|
28
|
28
8KG-RA720-00-00 Collar, 8 |
8KG-RA720-00-00 |
US $9.77 |
||
|
29
|
29
8KG-RA301-00-00 Nut, Self-Locking M8-1.25 |
8KG-RA301-00-00 |
US $6.32 |
||
|
30
|
30
8KC-F358A-00-00 ARM,FR. LWR. RH. |
8KC-F358A-00-00 |
US $278.44 |
||
|
31
|
31
8KC-F357A-00-00 ARM,FR. LWR. LH. |
8KC-F357A-00-00 |
US $254.92 |
||
|
32
|
32
8JP-RA807-00-00 Bush, 10Du10 |
8JP-RA807-00-00 |
US $42.64 |
||
|
33
|
33
8JP-RA811-00-00 Bush, 1815Du |
8JP-RA811-00-00 |
US $6.62 |
||
|
34
|
34
8JP-RA361-00-00 Nut, Flange Locking M12X1.25 |
8JP-RA361-00-00 |
US $5.08 |
||
|
35
|
35
8JP-F3543-00-00 Arm, 1 |
8JP-F3543-00-00 |
US $12.08 |
||
|
36
|
36
8JP-RA721-00-00 Collar, 9 |
8JP-RA721-00-00 |
US $16.79 |
||
|
37
|
37
8JP-RA1A7-00-00 Bolt, Flange M12X1.25X76 |
8JP-RA1A7-00-00 |
from US $3.20 |
||
|
38
|
38
8JP-RA1A4-00-00 Bolt, Flange M10X1.25X75 |
8JP-RA1A4-00-00 |
US $3.26 |
||
|
39
|
39
8KU-RA719-00-00 Collar, 7 |
8KU-RA719-00-00 |
US $41.68 |
||
|
40
|
40
8JP-RA360-00-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
41
|
41
8JP-RA362-00-00 Nut, Flange Locking M12X1.25 |
8JP-RA362-00-00 |
from US $1.60 |
||
|
42
|
42
8KC-F330E-00-00 DAMPER ASSY |
8KC-F330E-00-00 |
US $905.57 |
||
|
43
|
43
8KG-RA817-00-00 Bush, 8 |
8KG-RA817-00-00 |
US $21.24 |
||
|
44
|
44
8KG-RA724-00-00 Collar, 12 |
8KG-RA724-00-00 |
US $40.36 |
||
|
45
|
45
8JW-F151F-00-00 Label 3 |
8JW-F151F-00-00 |
US $18.16 |
||
|
46
|
46
8KG-RA1B9-00-00 Bolt, Flange M8X50 |
8KG-RA1B9-00-00 |
US $9.40 |
||
|
47
|
47
8JP-RA360-10-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-10-00 |
US $6.28 |
||
|
48
|
48
8JW-F3703-00-00 Adjuster |
8JW-F3703-00-00 |
US $94.30 |
||
| replacement | |||||
|
48
|
48
SMA-MEGAF-PU-MP Rpt Mega Foxfloat Airshox Pump |
SMA-MEGAF-PU-MP |
US $187.60 |
||
