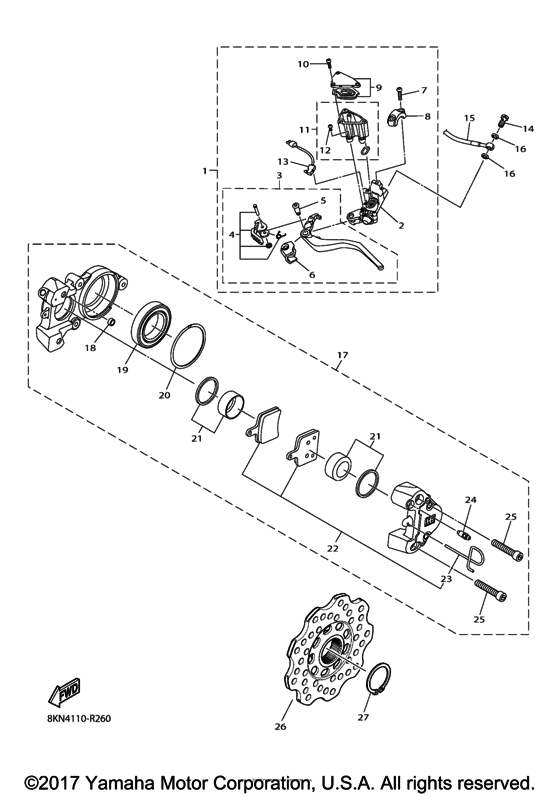

Brake Diagram Yamaha SRS10/ SW10 Sidewinder B-TX 153 LE 2.25
- Model code
- 8MF1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder B-TX 153 LE 2.25
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KG-F583T-00-00 Master Cylinder Assy |
8KG-F583T-00-00 |
US $355.21 |
||
|
2
|
2
8KG-F5856-00-00 Piston, Master Cylinder |
8KG-F5856-00-00 |
US $324.18 |
||
|
3
|
3
8JP-F610A-00-00 Brake Lever Set |
8JP-F610A-00-00 |
US $163.93 |
||
|
4
|
4
8JP-F5727-00-00 Bracket, Lever |
8JP-F5727-00-00 |
US $49.12 |
||
|
5
|
5
8JP-F589F-00-00 Bolt, Lever |
8JP-F589F-00-00 |
US $31.70 |
||
|
6
|
6
8JP-F637A-00-00 Cover, Handle Lever 2 |
8JP-F637A-00-00 |
US $36.27 |
||
|
7
|
7
8JP-RA236-00-00 Screw, 2 |
8JP-RA236-00-00 |
US $24.23 |
||
|
8
|
8
8JP-F5867-00-00 Bracket, Master Cylinder |
8JP-F5867-00-00 |
US $56.52 |
||
|
9
|
9
8JP-F5852-00-00 Cap, Reservoir |
8JP-F5852-00-00 |
US $41.31 |
||
|
10
|
10
8JP-RA277-00-00 Screw, Tapping |
8JP-RA277-00-00 |
US $9.50 |
||
|
11
|
11
8JP-F5851-00-00 Body, Master Cylinder |
8JP-F5851-00-00 |
US $57.29 |
||
|
12
|
12
8JP-RA278-00-00 Screw, Tapping |
8JP-RA278-00-00 |
US $2.56 |
||
|
13
|
13
8JP-H2530-00-00 Stop Switch Assy |
8JP-H2530-00-00 |
US $110.29 |
||
|
14
|
14
8JP-RA1B3-00-00 Bolt, Union 20 |
8JP-RA1B3-00-00 |
US $6.55 |
||
|
15
|
15
8JP-F5872-00-00 Hose, Brake 1 |
8JP-F5872-00-00 |
US $105.01 |
||
|
16
|
16
8JP-RA435-00-00 Washer, 4 |
8JP-RA435-00-00 |
US $12.95 |
||
|
17
|
17
8JP-F580T-00-00 Caliper Assy (Left) |
8JP-F580T-00-00 |
US $448.04 |
||
|
18
|
18
8JP-RAF03-00-00 O-Ring, 1 |
8JP-RAF03-00-00 |
US $11.07 |
||
|
19
|
19
8JP-RAG06-00-00 Bearing, 6009-2Rsfp-C3 |
8JP-RAG06-00-00 |
US $30.49 |
||
|
20
|
20
8JP-RAH05-00-00 Circlip, Eh-75 |
8JP-RAH05-00-00 |
US $5.90 |
||
|
21
|
21
8JP-F5809-00-00 Piston Set, Caliper |
8JP-F5809-00-00 |
US $96.44 |
||
|
22
|
22
8JP-F5811-00-00 Pad, Caliper 2 |
8JP-F5811-00-00 |
US $139.37 |
||
|
23
|
23
8JP-F5924-00-00 Pin, Pad |
8JP-F5924-00-00 |
US $10.91 |
||
|
24
|
24
8JP-F5824-00-00 Screw, Bleed |
8JP-F5824-00-00 |
US $7.63 |
||
|
25
|
25
8JP-RA237-00-00 Screw, 3 |
8JP-RA237-00-00 |
US $6.52 |
||
|
26
|
26
8KN-F581T-00-00 Disc Brake Assy |
8KN-F581T-00-00 |
US $278.86 |
||
|
27
|
27
8JP-RAC03-00-00 Circlip, 4 |
8JP-RAC03-00-00 |
US $8.56 |
