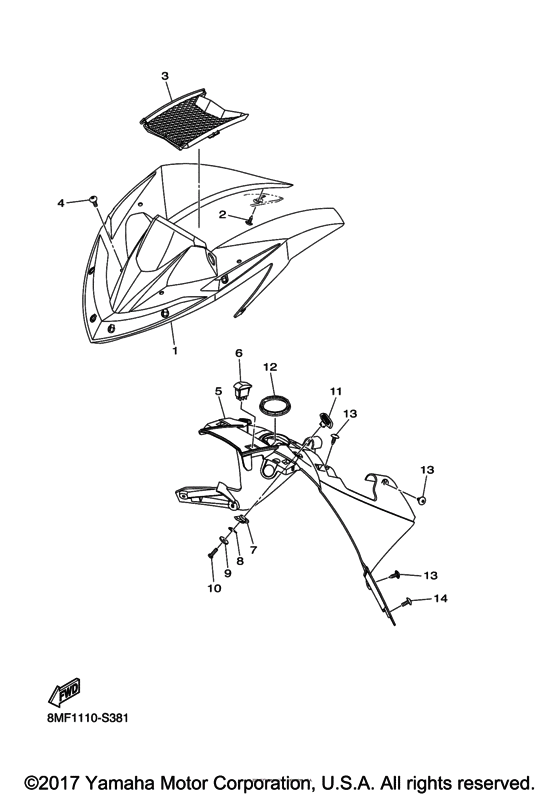

Instrument panel Diagram Yamaha SRS10/ SW10 Sidewinder B-TX 153 LE 2.25
- Model code
- 8MF1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder B-TX 153 LE 2.25
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-K7712-00-00 Panel, Instrument |
8JP-K7712-00-00 |
US $225.63 |
||
|
2
|
2
8KC-RA290-00-00 SCREW, 10-12X3/4 |
8KC-RA290-00-00 |
US $12.70 |
||
|
3
|
3
8KC-K7131-00-00 LOUVER 1 |
8KC-K7131-00-00 |
US $17.33 |
||
|
4
|
4
8JP-RA253-00-00 Screw, M6-1.0X18 |
8JP-RA253-00-00 |
US $10.36 |
||
|
5
|
5
8KC-K7711-30-00 PANEL, INSTRUMENTUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8KC-K7711-30-00 |
US $88.15 |
||
|
5
|
5
8KC-K7711-20-00 PANEL, INSTRUMENTUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K7711-20-00 |
US $100.49 |
||
|
6
|
6
8JP-H2627-00-00 Switch |
8JP-H2627-00-00 |
US $83.21 |
||
|
7
|
7
8KC-K7153-00-00 PLATE, BACK UP 1 |
8KC-K7153-00-00 |
US $2.38 |
||
|
8
|
8
8JP-RAC15-00-00 CLIP, 6 |
8JP-RAC15-00-00 |
US $11.05 |
||
|
9
|
9
8JP-RA429-00-00 WASHER |
8JP-RA429-00-00 |
US $7.90 |
||
|
10
|
10
8JP-RA2A2-00-00 Screw, 13 |
8JP-RA2A2-00-00 |
US $3.24 |
||
|
11
|
11
8KC-K7324-00-00 KNOB |
8KC-K7324-00-00 |
US $2.50 |
||
|
12
|
12
8JP-K6169-00-00 Nut |
8JP-K6169-00-00 |
US $3.46 |
||
|
13
|
13
8KC-RA290-00-00 SCREW, 10-12X3/4 |
8KC-RA290-00-00 |
US $12.70 |
||
|
14
|
14
8JP-RA202-00-00 SCREW, TAPPING 1/4 |
8JP-RA202-00-00 |
US $9.92 |
