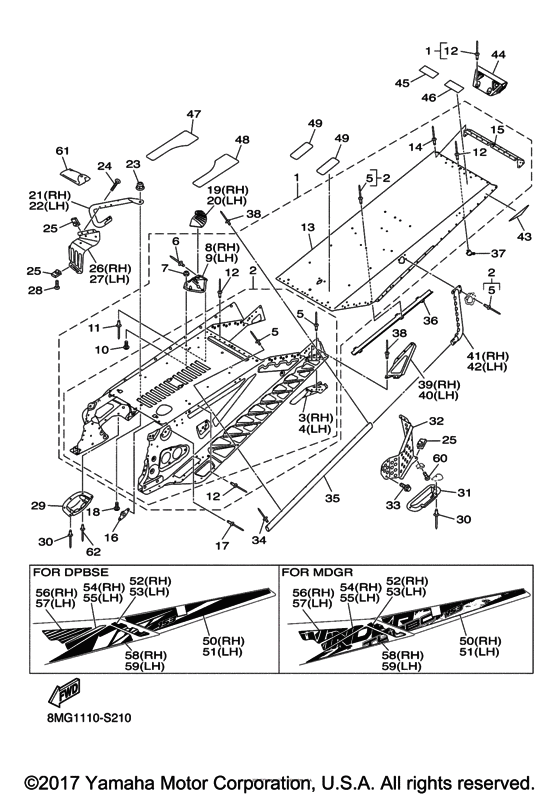

Frame 2 Diagram Yamaha SRS10/ SW10 Sidewinder B-TX 153 LE 2.25
- Model code
- 8MG1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Medium Gray
- Color Variant
- B
- Model
- Sidewinder B-TX 153 LE 2.25
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8MG-F1950-00-00 REAR FRAME COMP. |
8MG-F1950-00-00 |
US $1,069.94 |
||
| replacement | |||||
|
1
|
1
8MG-F1950-40-00 Rear Frame Comp. |
8MG-F1950-40-00 |
US $1,069.94 |
||
|
2
|
2
8MG-F1911-00-00 PANEL, FRAME |
8MG-F1911-00-00 |
US $708.57 |
||
|
3
|
3
8JR-F1954-00-00 Bracket, Rear Track Sus |
8JR-F1954-00-00 |
US $28.78 |
||
|
4
|
4
8JR-F1944-00-00 Bracket, Rear Track Sus |
8JR-F1944-00-00 |
US $28.33 |
||
|
5
|
5
8JP-RA520-00-00 Rivet, 11UN |
8JP-RA520-00-00 |
US $9.50 |
||
|
6
|
6
8JP-RA532-00-00 Rivet, 20 |
8JP-RA532-00-00 |
US $19 |
||
|
7
|
7
8JP-RA370-00-00 Nut, Hex. Locking |
8JP-RA370-00-00 |
US $7.20 |
||
|
8
|
8
8JW-F115M-00-00 Bracket, Member 2 |
8JW-F115M-00-00 |
US $38.20 |
||
|
9
|
9
8JW-F115L-00-00 Bracket, Member 1 |
8JW-F115L-00-00 |
US $44.50 |
||
|
10
|
10
8JP-RA239-00-00 Screw, 5 |
8JP-RA239-00-00 |
US $8.76 |
||
|
11
|
11
8JP-RA528-00-00 Rivet, 3/16 |
8JP-RA528-00-00 |
US $38 |
||
|
12
|
12
8JP-RA529-00-00 Rivet, 17UN |
8JP-RA529-00-00 |
US $18 |
||
|
13
|
13
8MG-F1912-00-00 PANEL, SUB FRAME 1 |
8MG-F1912-00-00 |
US $246.02 |
||
|
14
|
14
8JP-RA514-10-00 RIVET, 5 |
8JP-RA514-10-00 |
US $19 |
||
|
15
|
15
8JW-F1923-00-00 Reineforcement, Frame Rear 1 |
8JW-F1923-00-00 |
US $47.41 |
||
|
16
|
16
8JP-F1919-00-00 Bracket |
8JP-F1919-00-00 |
US $31.52 |
||
|
17
|
17
8JP-RA521-00-00 Rivet, 12 |
8JP-RA521-00-00 |
US $23.40 |
||
|
18
|
18
8JP-RA272-00-00 Screw, M8X1.25X20 |
8JP-RA272-00-00 |
US $0.85 |
||
|
19
|
19
8JP-F2556-00-00 Support, Fuel Tank 2 |
8JP-F2556-00-00 |
US $24.77 |
||
|
20
|
20
8JP-F2555-00-00 Support, Fuel Tank 1 |
8JP-F2555-00-00 |
US $25.47 |
||
|
21
|
21
8KC-F192E-00-00 REINFORCEMENT, FRA |
8KC-F192E-00-00 |
US $62.75 |
||
|
22
|
22
8KC-F1929-00-00 REINFORCEMENT, FRA |
8KC-F1929-00-00 |
US $66.85 |
||
|
23
|
23
8JM-RA301-00-00 Nut, Self-Locking M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
24
|
24
8JP-RA247-00-00 Screw, M5X0.8X35 |
8JP-RA247-00-00 |
US $6.32 |
||
|
25
|
25
8JP-RA353-00-00 Nut, Clip M5 |
8JP-RA353-00-00 |
US $16.64 |
||
|
26
|
26
8JW-F1996-00-00 Reinforcement Sub Frame Fr 2 |
8JW-F1996-00-00 |
US $33.07 |
||
|
27
|
27
8JW-F1995-00-00 Reinforcement Sub Frame Fr 1 |
8JW-F1995-00-00 |
US $30.38 |
||
|
28
|
28
8JP-RA251-00-00 Screw, M5X1.0X16 |
8JP-RA251-00-00 |
US $1.16 |
||
|
29
|
29
8JP-F2147-00-00
Protector, Chain
|
8JP-F2147-00-00 |
— | ||
|
30
|
30
8JP-RA523-00-00 Rivet, 14 |
8JP-RA523-00-00 |
US $17.60 |
||
|
31
|
31
8JP-F5717-00-00 Protector, Disc Brake |
8JP-F5717-00-00 |
US $16.31 |
||
|
32
|
32
8JW-F5718-00-00 Protector, Disc Brake |
8JW-F5718-00-00 |
US $60.01 |
||
| replacement | |||||
|
32
|
32
8JW-F5718-60-00 |
8JW-F5718-60-00 |
US $53.35 |
||
|
33
|
33
8JP-RA179-00-00 Bolt, Flange M6X1.0X12 |
8JP-RA179-00-00 |
US $5.08 |
||
|
34
|
34
8JP-RA526-00-00 Rivet, 3/16UN |
8JP-RA526-00-00 |
US $24.18 |
||
|
35
|
35
8JW-F1926-00-00 Reinforcement, Footrest 1 |
8JW-F1926-00-00 |
US $66.10 |
||
|
36
|
36
8MG-H2589-00-00 PROTECTER, WIRE HA |
8MG-H2589-00-00 |
US $17.69 |
||
|
37
|
37
8MG-H258A-00-00 EXTENSION, WIRE HA |
8MG-H258A-00-00 |
US $15.66 |
||
|
38
|
38
8JP-RA527-00-00 Rivet, 3/16UN |
8JP-RA527-00-00 |
US $14.85 |
||
|
39
|
39
8KG-F1135-00-00 Gusset |
8KG-F1135-00-00 |
US $39.78 |
||
|
40
|
40
8KG-F1134-00-00 Gusset |
8KG-F1134-00-00 |
US $36.22 |
||
|
41
|
41
8JW-F1137-00-00 Gusset |
8JW-F1137-00-00 |
US $44.21 |
||
|
42
|
42
8JW-F1136-00-00 Gusset |
8JW-F1136-00-00 |
US $36.45 |
||
|
43
|
43
8JP-F151A-00-00 Label 1 |
8JP-F151A-00-00 |
US $16.85 |
||
|
44
|
44
8JW-F117E-10-00 Bracket, Taillight |
8JW-F117E-10-00 |
US $47.41 |
||
|
45
|
45
8JP-K7762-70-00 Label, Warning 2 (English) |
8JP-K7762-70-00 |
US $3.89 |
||
|
46
|
46
8JP-K7762-S0-00 Label, Warning 2 (French) |
8JP-K7762-S0-00 |
US $3.74 |
||
|
47
|
47
8JP-F197C-00-00 Protector, Frame 3 |
8JP-F197C-00-00 |
US $10.53 |
||
|
48
|
48
8JP-F197B-00-00 Protector, Frame |
8JP-F197B-00-00 |
US $10.53 |
||
|
49
|
49
8LN-F195A-00-00 Protector, Frame A |
8LN-F195A-00-00 |
US $4.77 |
||
|
50
|
50
8MG-F199R-00-00 GRAPHIC 10UR FOR DPBSE |
8MG-F199R-00-00 |
US $42.73 |
||
|
50
|
50
8MG-F199R-10-00 GRAPHIC 10UR FOR MDGR |
8MG-F199R-10-00 |
US $35.12 |
||
|
51
|
51
8MG-F199P-00-00 GRAPHIC 9UR FOR DPBSE |
8MG-F199P-00-00 |
US $41.92 |
||
|
51
|
51
8MG-F199P-10-00 GRAPHIC 9UR FOR MDGR |
8MG-F199P-10-00 |
US $33.53 |
||
|
52
|
52
8KC-F199N-00-00 GRAPHIC 8UR FOR DPBSE |
8KC-F199N-00-00 |
US $11.16 |
||
|
52
|
52
8MG-F199N-00-00 GRAPHIC 8UR FOR MDGR |
8MG-F199N-00-00 |
US $11.16 |
||
|
53
|
53
8KC-F199M-00-00 GRAPHIC 7UR FOR DPBSE |
8KC-F199M-00-00 |
US $9.99 |
||
|
53
|
53
8MG-F199M-00-00 GRAPHIC 7UR FOR MDGR |
8MG-F199M-00-00 |
US $11.16 |
||
|
54
|
54
8KC-F199L-00-00 GRAPHIC 6UR FOR DPBSE |
8KC-F199L-00-00 |
US $6.57 |
||
|
54
|
54
8MG-F199L-00-00 GRAPHIC 6UR FOR MDGR |
8MG-F199L-00-00 |
US $6.57 |
||
|
55
|
55
8KC-F199K-00-00 GRAPHIC 5UR FOR DPBSE |
8KC-F199K-00-00 |
US $6.57 |
||
|
55
|
55
8MG-F199K-00-00 GRAPHIC 5UR FOR MDGR |
8MG-F199K-00-00 |
US $6.57 |
||
|
56
|
56
8KC-F199D-00-00 GRAPHIC 4UR FOR DPBSE |
8KC-F199D-00-00 |
US $9.88 |
||
|
56
|
56
8MG-F199D-00-00 GRAPHIC 4UR FOR MDGR |
8MG-F199D-00-00 |
US $9.72 |
||
|
57
|
57
8KC-F199C-00-00 GRAPHIC 3UR FOR DPBSE |
8KC-F199C-00-00 |
US $10.82 |
||
|
57
|
57
8MG-F199C-00-00 GRAPHIC 3UR FOR MDGR |
8MG-F199C-00-00 |
US $10.82 |
||
|
58
|
58
8KC-F199B-00-00 GRAPHIC 2UR FOR DPBSE |
8KC-F199B-00-00 |
US $32.13 |
||
|
58
|
58
8MG-F199B-00-00 GRAPHIC 2UR FOR MDGR |
8MG-F199B-00-00 |
US $36.45 |
||
|
59
|
59
8KC-F199A-00-00 GRAPHIC 1UR FOR DPBSE |
8KC-F199A-00-00 |
US $32.13 |
||
|
59
|
59
8MG-F199A-00-00 GRAPHIC 1UR FOR MDGR |
8MG-F199A-00-00 |
US $36.45 |
||
|
60
|
60
8JP-RA244-00-00 Screw, M5X0.8X20 |
8JP-RA244-00-00 |
US $2.96 |
||
|
61
|
61
8JP-F8100-00-00 Tool Kit |
8JP-F8100-00-00 |
US $84.73 |
||
|
62
|
62
8JP-RA524-00-00 Rivet, 15 |
8JP-RA524-00-00 |
US $29.20 |
||
