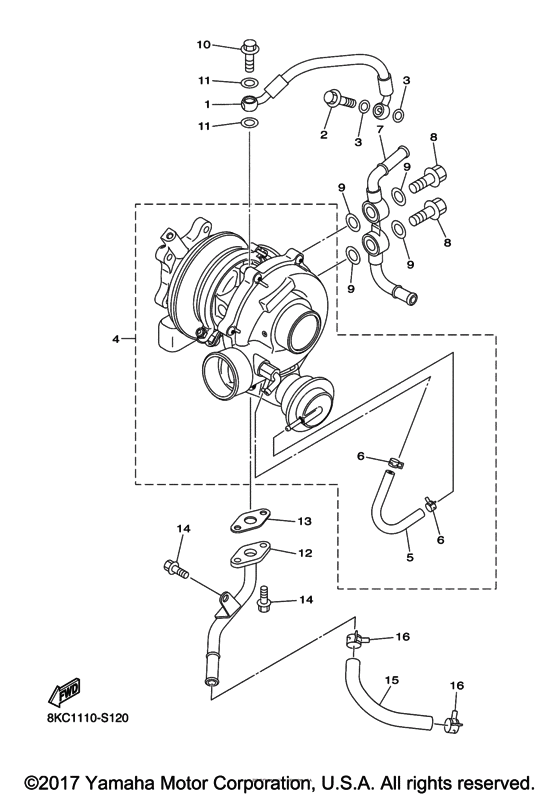

Turbo Charger Diagram Yamaha SRS10/ SW10 Sidewinder B-TX 153 LE 2.25
- Model code
- 8MG1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder B-TX 153 LE 2.25
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KJ-13465-00-00 HOSE, OIL 2 |
8KJ-13465-00-00 |
US $85.37 |
||
|
2
|
2
90401-08004-00 Bolt, Union |
90401-08004-00 |
from US $5.38 |
||
|
3
|
3
904-30081-19-00
Gasket
|
904-30081-19-00 |
— | ||
| replacement | |||||
|
3
|
3
90201-08087-00 Washer, Plate 3411117500 |
90201-08087-00 |
from US $1.28 |
||
|
4
|
4
8KJ-14690-00-00 TURBO SUPERCHARGER A |
8KJ-14690-00-00 |
US $4,255.15 |
||
| replacement | |||||
|
4
|
4
8KJ-14690-01-00 Turbo Supercharger A |
8KJ-14690-01-00 |
US $5,150.88 |
||
|
5
|
5
8KJ-14694-00-00 HOSE, TURBO 1 |
8KJ-14694-00-00 |
US $49.95 |
||
|
6
|
6
8KJ-14919-00-00 CLIP |
8KJ-14919-00-00 |
US $30.78 |
||
|
7
|
7
8KJ-12581-00-00 JOINT, HOSE 1 |
8KJ-12581-00-00 |
US $94.09 |
||
|
8
|
8
90401-12122-00 Bolt, Union (L=28, P=1.25X2) |
90401-12122-00 |
from US $6.52 |
||
|
9
|
9
90430-12202-00 Gasket |
90430-12202-00 |
from US $1.28 |
||
|
10
|
10
90401-10048-00 BOLT, UNION |
90401-10048-00 |
US $11.43 |
||
|
11
|
11
90430-10005-00 Gasket |
90430-10005-00 |
from US $1.56 |
||
|
12
|
12
8KJ-13266-00-00 CONNECTOR, OIL |
8KJ-13266-00-00 |
US $43.96 |
||
|
13
|
13
N26-13477-00-00 Gasket |
N26-13477-00-00 |
from US $1.28 |
||
|
14
|
14
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
15
|
15
8KC-E3464-00-00 HOSE, OIL 1 |
8KC-E3464-00-00 |
US $18.16 |
||
|
16
|
16
8KC-RAC01-00-00 CLIP, 2 |
8KC-RAC01-00-00 |
US $18.45 |
||
