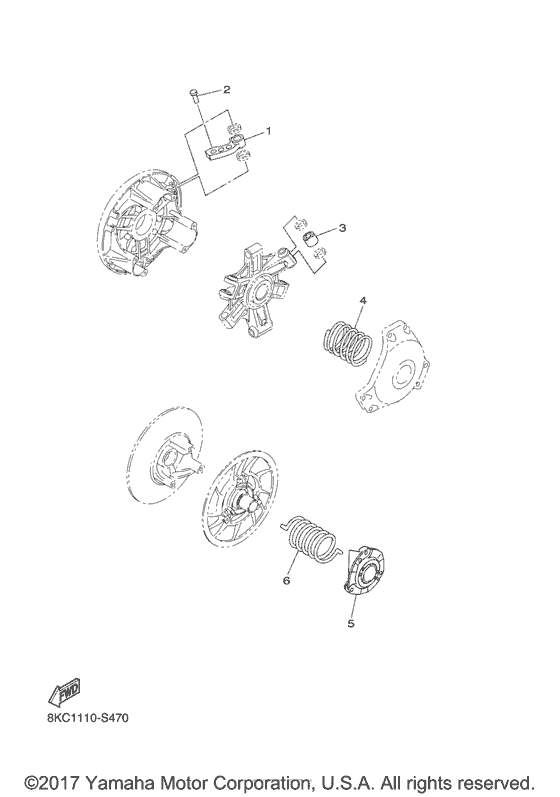

Alternate drive setting 1 Diagram Yamaha SRS10/ SW10 Sidewinder L-TX LE
- Model code
- 8LY1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- B
- Model
- Sidewinder L-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KC-17605-00-00 WEIGHT COMPUR |
8KC-17605-00-00 |
US $105.93 |
||
|
1
|
1
8LR-17605-00-00 WEIGHT COMPUR |
8LR-17605-00-00 |
US $91.55 |
||
|
2
|
2
90261-06034-00 Rivet, Countersunk (St13.9Mm)UR |
90261-06034-00 |
from US $1.56 |
||
|
2
|
2
90261-06019-00 Rivet, Countersunk (St13.3Mm)UR |
90261-06019-00 |
from US $1.56 |
||
|
2
|
2
90261-06015-00 Rivet, Countersunk (St10.3Mm)UR |
90261-06015-00 |
from US $1.35 |
||
|
2
|
2
90261-06028-00 Rivet, Countersunk (Al10.3Mm)UR |
90261-06028-00 |
from US $1.35 |
||
|
2
|
2
902-61060-33-00 Rivet, Countersunk (St17.2Mm)UR |
902-61060-33-00 |
from US $1.84 |
||
|
2
|
2
90266-06001-00 Rivet (Al13.3)UR |
90266-06001-00 |
from US $1.42 |
||
|
2
|
2
90266-06002-00 Rivet (St13.3)UR |
90266-06002-00 |
from US $1.84 |
||
|
2
|
2
90269-06006-00 Rivet (St17.2)UR |
90269-06006-00 |
from US $1.84 |
||
|
3
|
3
8FG-17624-30-00 Roller, CompUR |
8FG-17624-30-00 |
from US $53.47 |
||
|
3
|
3
8FG-17624-10-00 Roller, CompUR |
8FG-17624-10-00 |
from US $38.96 |
||
|
3
|
3
8FG-17624-40-00 Roller, CompUR |
8FG-17624-40-00 |
from US $53.47 |
||
|
3
|
3
8FG-17624-20-00 Roller, CompUR |
8FG-17624-20-00 |
from US $53.47 |
||
|
3
|
3
8FG-17624-00-00 Roller, CompUR |
8FG-17624-00-00 |
from US $37.03 |
||
|
4
|
4
90501-601L8-00 Spring, CompressionUR (OR-P-OR) |
90501-601L8-00 |
from US $28.34 |
||
|
4
|
4
90501-601L7-00 Spring, CompressionUR (P-P-P) |
90501-601L7-00 |
from US $28.34 |
||
|
4
|
4
90501-583L5-00 Spring, CompressionUR (WH-P-WH) |
90501-583L5-00 |
from US $28.34 |
||
|
4
|
4
90501-583L4-00 Spring, CompressionUR (WH-SL-WH) |
90501-583L4-00 |
from US $28.34 |
||
|
4
|
4
90501-583L1-00 Spring, CompressionUR (WH-WH-WH) |
90501-583L1-00 |
from US $28.34 |
||
|
4
|
4
90501-583L0-00 Spring, CompressionUR (BL-WH-BL) |
90501-583L0-00 |
from US $28.34 |
||
|
4
|
4
90501-582L7-00 Spring, CompressionUR (Y-GR-Y) |
90501-582L7-00 |
from US $28.34 |
||
|
4
|
4
90501-582L6-00 Spring, CompressionUR (WH-GR-WH) |
90501-582L6-00 |
from US $28.34 |
||
|
4
|
4
90501-582L2-00 Spring, CompressionUR (GR-SL-GR) |
90501-582L2-00 |
from US $28.34 |
||
|
4
|
4
90501-582L1-00 Spring, CompressionUR (Y-SL-Y) |
90501-582L1-00 |
from US $28.34 |
||
|
4
|
4
90501-581L6-00 Spring, CompressionUR (GR-P-GR) |
90501-581L6-00 |
from US $28.34 |
||
|
4
|
4
90501-581L5-00 Spring, CompressionUR (Y-P-Y) |
90501-581L5-00 |
from US $28.34 |
||
|
4
|
4
90501-552L5-00 Spring, CompressionUR (BL-GR-BL) |
90501-552L5-00 |
from US $26.49 |
||
|
4
|
4
90501-551L3-00 Spring, CompressionUR (BL-P-BL) |
90501-551L3-00 |
from US $26.49 |
||
|
4
|
4
90501-602L3-00 Spring, CompressionUR (P-SL-P) |
90501-602L3-00 |
from US $26.49 |
||
|
4
|
4
90501-550A7-00 SPRING, COMPRESSIONUR (GO-R-GO) |
90501-550A7-00 |
from US $21.54 |
||
| replacement | |||||
|
4
|
4
90501-570A1-00 Spring, CompressionUR (GO-R-GO) |
90501-570A1-00 |
from US $21.54 |
||
|
4
|
4
905-01570-A0-00 Spring, CompressionUR (BL-SL-BL) |
905-01570-A0-00 |
from US $22.95 |
||
|
4
|
4
90501-580A2-00 Spring, CompressionUR (BL-BR-BL) |
90501-580A2-00 |
from US $57.75 |
||
|
4
|
4
905-01600-A5-00 Spring, CompressionUR (OR-Y-OR) |
905-01600-A5-00 |
from US $45.87 |
||
|
4
|
4
905-01600-A4-00 Spring, CompressionUR (P-Y-P) |
905-01600-A4-00 |
from US $45.87 |
||
|
4
|
4
905-01580-A4-00 Spring, CompressionUR (GR-Y-GR) |
905-01580-A4-00 |
from US $45.59 |
||
|
4
|
4
905-01580-A3-00 Spring, CompressionUR (Y-Y-Y) |
905-01580-A3-00 |
from US $24.65 |
||
|
4
|
4
905-01550-A6-00 Spring, CompressionUR (WH-Y-WH) |
905-01550-A6-00 |
from US $45.04 |
||
|
4
|
4
905-01550-A5-00 Spring, CompressionUR (BL-Y-BL) |
905-01550-A5-00 |
from US $45.04 |
||
|
4
|
4
905-01550-A3-00 Spring, CompressionUR (WH-BL-WH) |
905-01550-A3-00 |
from US $21.25 |
||
|
4
|
4
90501-600A1-00 Spring, CompressionUR (P-BL-P) |
90501-600A1-00 |
from US $25.08 |
||
|
4
|
4
90501-602L8-00 Spring, CompressionUR (GR-GR-GR) |
90501-602L8-00 |
from US $28.34 |
||
|
4
|
4
90501-602L9-00 Spring, CompressionUR (P-GR-P) |
90501-602L9-00 |
from US $29.33 |
||
|
4
|
4
90501-603L2-00 Spring, CompressionUR (Y-WH-Y) |
90501-603L2-00 |
from US $30.89 |
||
|
4
|
4
905-01603-L3-00 Spring, CompressionUR (GR-WH-GR) |
905-01603-L3-00 |
from US $30.18 |
||
|
4
|
4
90501-624L8-00 Spring, CompressionUR (OR-SL-OR) |
90501-624L8-00 |
from US $28.34 |
||
|
4
|
4
905-01550-A2-00 Spring, CompressionUR (BL-BL-BL) |
905-01550-A2-00 |
from US $24.51 |
||
|
4
|
4
90501-580A1-00 Spring, CompressionUR (Y-BL-Y) |
90501-580A1-00 |
from US $25.50 |
||
|
5
|
5
8KC-17604-90-00 SEAT SPRING SETUR |
8KC-17604-90-00 |
US $97.94 |
||
|
5
|
5
8KC-17604-50-00 SEAT SPRING SETUR |
8KC-17604-50-00 |
US $117.67 |
||
|
5
|
5
8KC-17604-70-00 SEAT SPRING SETUR |
8KC-17604-70-00 |
US $97.94 |
||
|
6
|
6
90508-60007-00 Spring, TorsionUR (WHITE) |
90508-60007-00 |
from US $24.51 |
||
|
6
|
6
905-08600-12-00 Spring, TorsionUR (PINK) |
905-08600-12-00 |
from US $25.22 |
||
|
6
|
6
90508-500B1-00 Spring, TorsionUR (BROWN) |
90508-500B1-00 |
from US $15.87 |
||
|
6
|
6
90508-556A2-00 Spring, TorsionUR (GREEN) |
90508-556A2-00 |
from US $21.96 |
||
|
6
|
6
90508-536A9-00 Spring, TorsionUR (RED) |
90508-536A9-00 |
from US $9.92 |
||
|
6
|
6
90508-60020-00 SPRING, TORSIONUR (YELLOW) |
90508-60020-00 |
from US $23.29 |
||
|
6
|
6
905-08600-16-00 Spring, TorsionUR (WH-WH) |
905-08600-16-00 |
from US $35.23 |
||
|
6
|
6
90508-556A7-00 Spring, TorsionUR (SILVER) |
90508-556A7-00 |
from US $29.19 |
||
|
6
|
6
905-08600-18-00 Spring, TorsionUR (P-P) |
905-08600-18-00 |
from US $35.78 |
||
