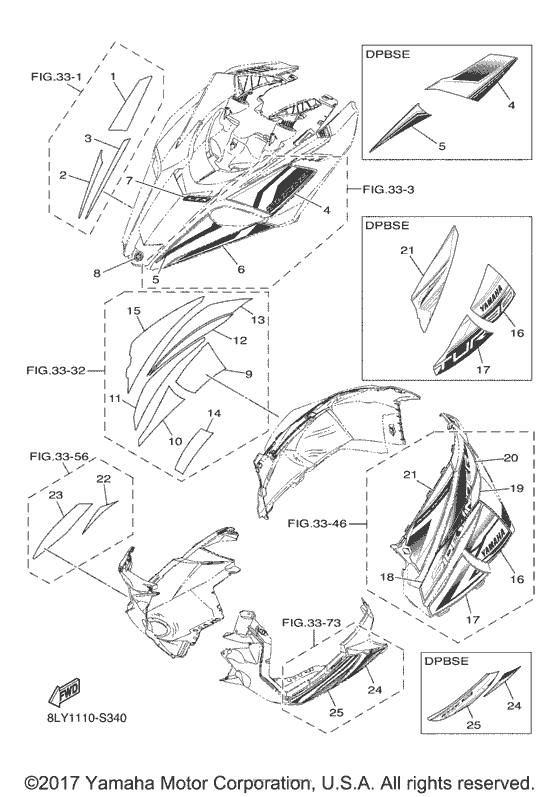

Emblem Diagram Yamaha SRS10/ SW10 Sidewinder L-TX LE
- Model code
- 8LY1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- B
- Model
- Sidewinder L-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8LY-K711M-00-00 GRAPHIC, SHROUDUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711M-00-00 |
US $22.34 |
||
|
1
|
1
8LR-K711M-00-00 GRAPHIC, SHROUDUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711M-00-00 |
US $44.35 |
||
|
2
|
2
8LY-K711P-00-00 GRAPHIC, SHROUD 4Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711P-00-00 |
US $14.83 |
||
|
2
|
2
8LR-K711P-00-00 GRAPHIC, SHROUD 4Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711P-00-00 |
US $20.77 |
||
|
3
|
3
8LY-K711Y-00-00 GRAPHIC, SHROUD 6Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711Y-00-00 |
US $22.34 |
||
|
4
|
4
8LY-K711L-00-00 GRAPHIC, SHROUDUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711L-00-00 |
US $26.01 |
||
|
4
|
4
8LR-K711L-00-00 GRAPHIC, SHROUDUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711L-00-00 |
US $39.78 |
||
|
5
|
5
8LR-K711N-00-00 GRAPHIC, SHROUD 3Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711N-00-00 |
US $20.77 |
||
|
5
|
5
8LY-K711N-00-00 GRAPHIC, SHROUD 3Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711N-00-00 |
US $11.29 |
||
|
6
|
6
8LY-K711X-00-00 GRAPHIC, SHROUD 5Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711X-00-00 |
US $20.74 |
||
|
7
|
7
8LY-K711R-00-00 GRAPHIC, SHROUD CE |
8LY-K711R-00-00 |
US $23.76 |
||
|
8
|
8
5KM-2175B-00-00 Tuning Fork Mark |
5KM-2175B-00-00 |
from US $13.56 |
||
|
9
|
9
8LR-K711F-00-00 GRAPHIC 6Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711F-00-00 |
US $42.62 |
||
|
9
|
9
8LY-K711F-00-00 GRAPHIC 6Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711F-00-00 |
US $37.21 |
||
|
10
|
10
8LY-K711D-00-00 GRAPHIC 4Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711D-00-00 |
US $36.45 |
||
|
10
|
10
8LR-K711D-00-00 GRAPHIC 4Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711D-00-00 |
US $36.22 |
||
|
11
|
11
8LY-K712H-00-00 GRAPHIC 8Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K712H-00-00 |
US $31.91 |
||
|
12
|
12
8LY-K712K-00-00 GRAPHIC 10Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K712K-00-00 |
US $56.74 |
||
|
13
|
13
8LY-K712M-00-00 GRAPHIC 12Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K712M-00-00 |
US $14.69 |
||
|
14
|
14
8LY-K711W-00-00 GRAPHIC 11Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711W-00-00 |
US $16.16 |
||
|
14
|
14
8LR-K711W-00-00 GRAPHIC 11Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711W-00-00 |
US $39.85 |
||
|
15
|
15
8LY-K711B-00-00 GRAPHIC 2Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711B-00-00 |
US $15.39 |
||
|
15
|
15
8LR-K711B-00-00 GRAPHIC 2Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711B-00-00 |
US $11.11 |
||
|
16
|
16
8LY-K711E-00-00 GRAPHIC 5Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711E-00-00 |
US $33.82 |
||
|
16
|
16
8LR-K711E-00-00 GRAPHIC 5Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711E-00-00 |
US $44.98 |
||
|
17
|
17
8LR-K711C-00-00 GRAPHIC 3Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711C-00-00 |
US $37.21 |
||
|
17
|
17
8LY-K711C-00-00 GRAPHIC 3Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711C-00-00 |
US $29.03 |
||
|
18
|
18
8LY-K712G-00-00 GRAPHIC 7Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K712G-00-00 |
US $31.91 |
||
|
19
|
19
8LY-K712J-00-00 GRAPHIC 9Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K712J-00-00 |
US $92.79 |
||
|
20
|
20
8LY-K712L-00-00 GRAPHIC 11Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K712L-00-00 |
US $15.89 |
||
|
21
|
21
8LR-K711A-00-00 GRAPHIC 1Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711A-00-00 |
US $31.12 |
||
|
21
|
21
8LY-K711A-00-00 GRAPHIC 1Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711A-00-00 |
US $32.56 |
||
|
22
|
22
8LY-K711V-00-00 GRAPHIC 10Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711V-00-00 |
US $7.96 |
||
|
22
|
22
8LR-K711V-00-00 GRAPHIC 10Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711V-00-00 |
US $28.60 |
||
|
23
|
23
8LY-K711H-00-00 GRAPHIC 8Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711H-00-00 |
US $26.23 |
||
|
23
|
23
8LR-K711H-00-00 GRAPHIC 8Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711H-00-00 |
US $21.53 |
||
|
24
|
24
8LR-K711U-00-00 GRAPHIC 9Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711U-00-00 |
US $24.93 |
||
|
24
|
24
8LY-K711U-00-00 GRAPHIC 9Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711U-00-00 |
US $82.66 |
||
|
25
|
25
8LR-K711G-00-00 Graphic 7Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8LR-K711G-00-00 |
US $29.45 |
||
|
25
|
25
8LY-K711G-00-00 GRAPHIC 7Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8LY-K711G-00-00 |
US $48.91 |
