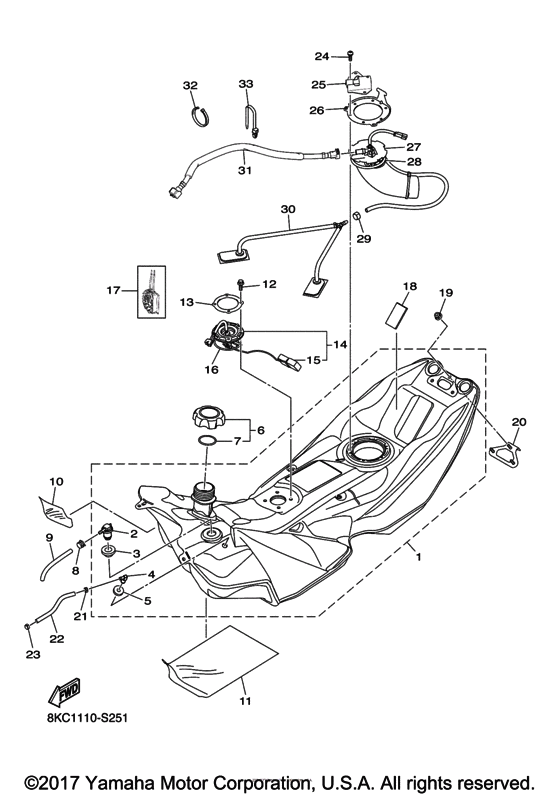

Fuel tank Diagram Yamaha SRS10/ SW10 Sidewinder L-TX LE
- Model code
- 8LY1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- B
- Model
- Sidewinder L-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KC-F4100-00-00 FUEL TANK ASSY |
8KC-F4100-00-00 |
US $407.29 |
||
| replacement | |||||
|
1
|
1
8KC-F4100-10-00 Fuel Tank Assy |
8KC-F4100-10-00 |
US $560.09 |
||
|
2
|
2
8JP-F4362-00-00 Valve, Check 1 |
8JP-F4362-00-00 |
US $44.35 |
||
|
3
|
3
8JP-E5366-00-00 Grommet |
8JP-E5366-00-00 |
US $4.72 |
||
|
4
|
4
8KC-F4376-00-00 PIPE, JOINT 1 |
8KC-F4376-00-00 |
US $3.74 |
||
| replacement | |||||
|
4
|
4
8KC-F4376-10-00 Pipe, Joint 1 |
8KC-F4376-10-00 |
US $4.88 |
||
|
5
|
5
8JP-E5367-00-00 Grommet |
8JP-E5367-00-00 |
US $4.39 |
||
|
6
|
6
8KC-F4610-00-00 CAP ASSY |
8KC-F4610-00-00 |
US $16.81 |
||
|
7
|
7
8JM-F4641-00-00 Gasket, Cap 1 |
8JM-F4641-00-00 |
US $5.47 |
||
|
8
|
8
8JP-RAB12-00-00 Clamp, 10 |
8JP-RAB12-00-00 |
US $4.15 |
||
|
9
|
9
8JP-RA907-00-00 Hose, 3 (50 Feet)UR UN |
8JP-RA907-00-00 |
US $401.49 |
||
|
9
|
9
8JP-RA908-00-00 Hose, 4 (100 Feet)UR UN |
8JP-RA908-00-00 |
US $614.47 |
||
| replacement | |||||
|
9
|
9
8JP-RA907-00-00 Hose, 3 (50 Feet)UR UN |
8JP-RA907-00-00 |
US $401.49 |
||
|
10
|
10
8JP-F416F-00-00 Insulator, Fuel Tank 1 |
8JP-F416F-00-00 |
US $17.69 |
||
| replacement | |||||
|
10
|
10
8JP-F416F-01-00 Insulator, Fuel Tank 1 |
8JP-F416F-01-00 |
US $18.85 |
||
|
11
|
11
8JP-F476U-00-00 Protector 1 |
8JP-F476U-00-00 |
US $17.87 |
||
| replacement | |||||
|
11
|
11
8JP-F476U-01-00 Protector 1 |
8JP-F476U-01-00 |
US $19.01 |
||
|
12
|
12
8JP-RA178-00-00 Bolt, Flange M5X0.8X16 |
8JP-RA178-00-00 |
US $2.27 |
||
|
13
|
13
8JP-K8166-00-00 Plate, Retainer |
8JP-K8166-00-00 |
US $35.84 |
||
|
14
|
14
8JP-H5752-00-00 Sender Unit Assy, Fuel Meter |
8JP-H5752-00-00 |
US $238.16 |
||
|
15
|
15
8JP-H369N-00-00 Float |
8JP-H369N-00-00 |
US $25.45 |
||
|
16
|
16
8JP-RAF10-00-00 O-Ring, 46.9 |
8JP-RAF10-00-00 |
US $11.07 |
||
|
17
|
17
8LN-H5701-00-00 SENDER ASSY |
8LN-H5701-00-00 |
US $110.29 |
||
|
18
|
18
8JP-H2121-00-00 Pad, Battery |
8JP-H2121-00-00 |
US $6.62 |
||
|
19
|
19
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
20
|
20
8JP-F134U-00-00 Bracket, Tank Fitting |
8JP-F134U-00-00 |
US $19.01 |
||
|
22
|
22
8JM-RA902-10-00 Hose, 13 (25 Feet)UN |
8JM-RA902-10-00 |
US $220.95 |
||
|
23
|
23
8JM-RAC01-00-00 Clip, 2 |
8JM-RAC01-00-00 |
US $11.60 |
||
|
24
|
24
8JP-RA242-00-00 Screw, M5X0.8X20 |
8JP-RA242-00-00 |
US $14.16 |
||
|
25
|
25
8JP-F413K-00-00 Guide, Nozzle |
8JP-F413K-00-00 |
US $107.95 |
||
|
26
|
26
8JP-F4491-00-00 Bracket, Fuel Pump |
8JP-F4491-00-00 |
US $48.10 |
||
|
27
|
27
8KC-E3907-00-00 Fuel Pump Comp. |
8KC-E3907-00-00 |
US $542.79 |
||
|
28
|
28
8JP-F4486-00-00 O-Ring |
8JP-F4486-00-00 |
US $4.54 |
||
|
29
|
29
8JP-RAB27-00-00 Clamp, 25 |
8JP-RAB27-00-00 |
US $22.40 |
||
|
30
|
30
8JP-F4502-00-00 Filter, Fuel |
8JP-F4502-00-00 |
US $221.44 |
||
|
31
|
31
8KC-F4310-00-00 FUEL PIPE ASSY |
8KC-F4310-00-00 |
US $123.82 |
||
|
32
|
32
8JM-RAB01-00-00 Clamp, 2 (8 Inch)UN |
8JM-RAB01-00-00 |
US $6.30 |
||
|
33
|
33
8JM-RAB02-00-00 Clamp, 3UN |
8JM-RAB02-00-00 |
US $9.45 |
||
