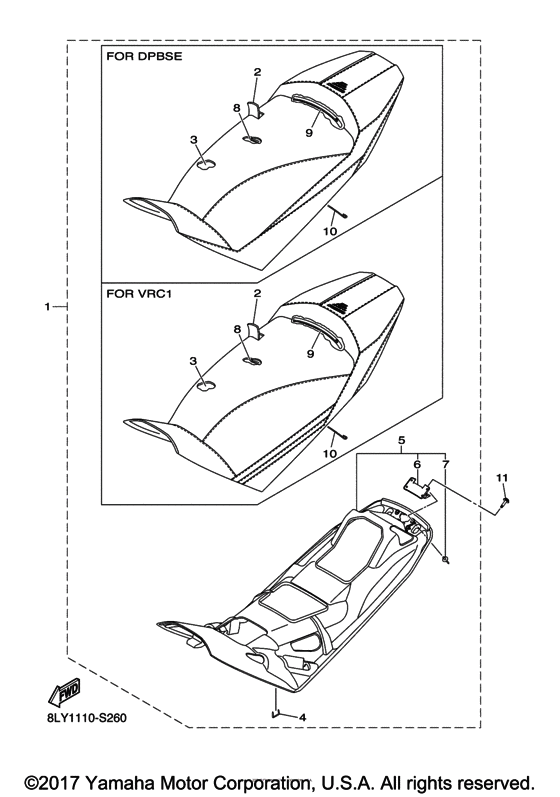

Seat Diagram Yamaha SRS10/ SW10 Sidewinder L-TX LE
- Model code
- 8LY1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- B
- Model
- Sidewinder L-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-F4710-90-00 SINGLE SEAT ASSYUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8JP-F4710-90-00 |
US $867.41 |
||
|
1
|
1
8JP-F4710-A0-00 SINGLE SEAT ASSYUse for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8JP-F4710-A0-00 |
US $637.47 |
||
|
2
|
2
8JP-F470F-A0-00 SEAT COVER COMP.Use for Color VIVID RED COCKTAIL 1 ( VRC1 / 0121 ) |
8JP-F470F-A0-00 |
US $367.24 |
||
|
2
|
2
8JP-F470F-90-00 SEAT COVER COMP.Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8JP-F470F-90-00 |
US $374.81 |
||
|
3
|
3
8JP-F4713-00-00 Cushion |
8JP-F4713-00-00 |
US $161.14 |
||
|
4
|
4
8JM-F473U-00-00 StapleUN |
8JM-F473U-00-00 |
US $178.33 |
||
|
5
|
5
8KC-F470E-00-00 BOTTOM PLATE COMP. |
8KC-F470E-00-00 |
US $81.83 |
||
|
6
|
6
8JP-F475H-00-00 Bracket, Seat Lever 1 |
8JP-F475H-00-00 |
US $21.87 |
||
|
7
|
7
8JP-RA523-00-00 Rivet, 14 |
8JP-RA523-00-00 |
US $17.60 |
||
|
8
|
8
8JP-H2951-00-00 Heater, Seat 1 |
8JP-H2951-00-00 |
US $219.73 |
||
|
9
|
9
8JP-F473J-00-00 Wire |
8JP-F473J-00-00 |
US $6.30 |
||
|
10
|
10
8JP-F1664-00-00 Wire 2 |
8JP-F1664-00-00 |
US $3.22 |
||
|
11
|
11
8JP-RA270-00-00 Screw, M6X18 |
8JP-RA270-00-00 |
US $6.32 |
