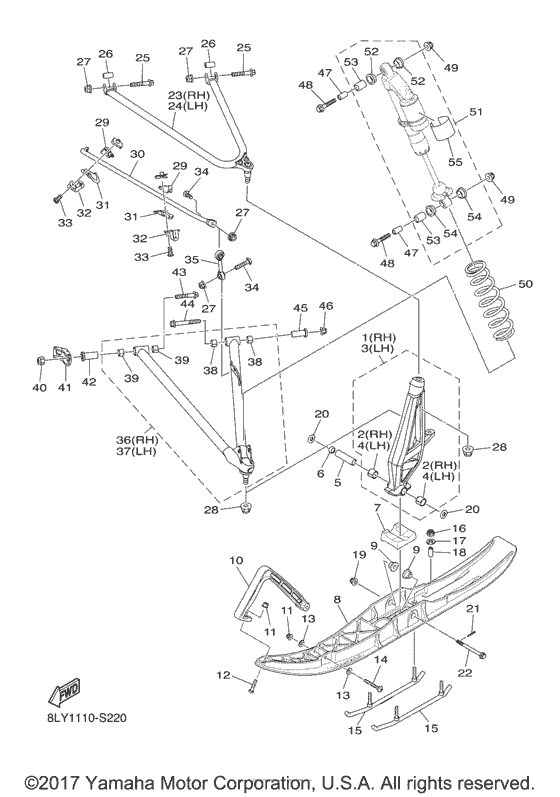

Ski Diagram Yamaha SRS10/ SW10 Sidewinder L-TX LE
- Model code
- 8LY1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- B
- Model
- Sidewinder L-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-F3521-30-00 Knuckle, Steering 2UR FOR VRC1 |
8JP-F3521-30-00 |
US $268.81 |
||
|
1
|
1
8JP-F3521-10-00 Knuckle, Steering 2UR FOR DPBSE |
8JP-F3521-10-00 |
US $394.24 |
||
|
2
|
2
8JP-RA806-00-00 Bush, 12Du12 |
8JP-RA806-00-00 |
US $20.34 |
||
|
3
|
3
8JP-F3511-30-00 Knuckle, Steering 1UR FOR VRC1 |
8JP-F3511-30-00 |
US $301.63 |
||
|
3
|
3
8JP-F3511-10-00 Knuckle, Steering 1UR FOR DPBSE |
8JP-F3511-10-00 |
US $394.24 |
||
|
4
|
4
8JP-RA806-00-00 Bush, 12Du12 |
8JP-RA806-00-00 |
US $20.34 |
||
|
5
|
5
8JP-RA731-00-00 Collar, 75 |
8JP-RA731-00-00 |
US $30.49 |
||
|
6
|
6
8JP-RA718-00-00 Collar, 6 |
8JP-RA718-00-00 |
US $18.44 |
||
|
7
|
7
8KN-F3743-00-00 Stopper 1 |
8KN-F3743-00-00 |
US $18.47 |
||
| replacement | |||||
|
7
|
7
8NS-F3743-00-00 STOPPER 1 |
8NS-F3743-00-00 |
US $20.05 |
||
|
8
|
8
8LH-F3711-00-00 Ski 1 |
8LH-F3711-00-00 |
US $83.21 |
||
| replacement | |||||
|
8
|
8
SMA-8HLDS-00-BK Ski Tuner Iii Dual Ski Bk |
SMA-8HLDS-00-BK |
US $69.86 |
||
|
9
|
9
8JH-F3754-00-00 Collar 1 |
8JH-F3754-00-00 |
from US $10.17 |
||
| replacements | |||||
|
9
|
9
8JH-23754-00-00 Collar, 1 |
8JH-23754-00-00 |
from US $11.76 |
||
|
9
|
9
8EX-F3754-00-00 Collar 1 |
8EX-F3754-00-00 |
from US $10.80 |
||
|
9
|
9
8EX-23754-00-00 Collar, 1 |
8EX-23754-00-00 |
from US $11.76 |
||
|
9
|
9
8EX-23754-00-00 Collar, 1 |
8EX-23754-00-00 |
from US $11.76 |
||
|
10
|
10
8LH-F3712-10-00 Reinforcement, HeadUR FOR DPBSE |
8LH-F3712-10-00 |
US $20.29 |
||
| replacement | |||||
|
10
|
10
SMA-8LH89-00-BL Skh Tuner Iii Ski Handle BlUR FOR DPBSE |
SMA-8LH89-00-BL |
US $19.40 |
||
|
10
|
10
8LH-F3712-20-00 Reinforcement, HeadUR FOR VRC1 |
8LH-F3712-20-00 |
US $20.29 |
||
| replacement | |||||
|
10
|
10
SMA-8LH89-00-RD Skh Tuner Iii Ski Handle RdUR FOR VRC1 |
SMA-8LH89-00-RD |
US $14.99 |
||
|
11
|
11
8LH-F3778-00-00 Nut |
8LH-F3778-00-00 |
US $0.49 |
||
|
12
|
12
8LH-F3755-00-00 Bolt, Reinforcement Head 1 |
8LH-F3755-00-00 |
US $0.59 |
||
|
13
|
13
8LH-F3737-00-00 Washer 1 |
8LH-F3737-00-00 |
US $0.40 |
||
|
14
|
14
8LH-F3756-00-00 Bolt, Reinforcement Head 2 |
8LH-F3756-00-00 |
US $1.13 |
||
|
15
|
15
8KM-F3731-00-00 Runner 1 |
8KM-F3731-00-00 |
US $42.50 |
||
|
16
|
16
8JH-F3778-00-00 Nut |
8JH-F3778-00-00 |
from US $1.57 |
||
| replacement | |||||
|
16
|
16
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
17
|
17
8JH-F3738-00-00 Washer 2 |
8JH-F3738-00-00 |
from US $1.70 |
||
| replacement | |||||
|
17
|
17
90201-08053-00 Washer, Plate |
90201-08053-00 |
from US $1.70 |
||
|
18
|
18
8KN-F3751-00-00 Bush, Ski 1 |
8KN-F3751-00-00 |
US $8.19 |
||
|
19
|
19
956-02102-00-00 Nut, U Flange |
956-02102-00-00 |
from US $1.56 |
||
|
20
|
20
90201-10043-00 Washer, Plate |
90201-10043-00 |
from US $1.33 |
||
|
21
|
21
914-01200-20-00
Pin, Cotter
|
914-01200-20-00 |
— | ||
| replacement | |||||
|
21
|
21
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
22
|
22
90105-10070-00 Bolt, Flange |
90105-10070-00 |
from US $7.65 |
||
|
23
|
23
8JP-F355A-00-00 Arm, Front Upper RhUR FOR DPBSE |
8JP-F355A-00-00 |
US $203.98 |
||
|
23
|
23
8JP-F355A-40-00 ARM FRONT UPPER RHUR FOR VRC1 |
8JP-F355A-40-00 |
US $152.69 |
||
|
24
|
24
8JP-F354A-00-00 Arm, Front Upper LhUR FOR DPBSE |
8JP-F354A-00-00 |
US $182.29 |
||
|
24
|
24
8JP-F354A-40-00 ARM, FRONT UPPERUR FOR VRC1 |
8JP-F354A-40-00 |
US $200.99 |
||
|
25
|
25
8JP-RA190-00-00 Bolt, Flange M8X1.25X45 |
8JP-RA190-00-00 |
US $1.89 |
||
|
26
|
26
8JP-RA720-00-00 Collar, 8 |
8JP-RA720-00-00 |
US $3.40 |
||
|
27
|
27
8JM-RA301-00-00 Nut, Self-Locking M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
28
|
28
8JP-RA362-00-00 Nut, Flange Locking M12X1.25 |
8JP-RA362-00-00 |
from US $1.60 |
||
|
29
|
29
8JP-F3867-00-00 Holder 2 |
8JP-F3867-00-00 |
US $9.83 |
||
|
30
|
30
8JP-F386E-00-00 Bar, Stabilizer Front |
8JP-F386E-00-00 |
US $136.60 |
||
|
31
|
31
8JP-F386G-00-00 Bush, Stabilizer Front |
8JP-F386G-00-00 |
US $9.65 |
||
|
32
|
32
8JP-F386C-00-00 Holder, Stabilizer Front |
8JP-F386C-00-00 |
US $9.76 |
||
|
33
|
33
8JP-RA235-00-00 Screw, 1 |
8JP-RA235-00-00 |
US $7.56 |
||
|
34
|
34
8JP-RA273-00-00 Screw, M8X1.25X35 |
8JP-RA273-00-00 |
US $14.24 |
||
|
35
|
35
8JP-F386F-00-00 Link, Stabilizer Front |
8JP-F386F-00-00 |
US $42.80 |
||
|
36
|
36
8JP-F358A-00-00 Arm, Front Lower RhUR FOR DPBSE |
8JP-F358A-00-00 |
US $275 |
||
|
36
|
36
8JP-F358A-40-00 ARM,FR. LWR. RH.UR FOR VRC1 |
8JP-F358A-40-00 |
US $281.56 |
||
|
37
|
37
8JP-F357A-40-00 ARM,FR. LWR. LH.UR FOR VRC1 |
8JP-F357A-40-00 |
US $252.09 |
||
|
37
|
37
8JP-F357A-00-00 Arm, Front Lower LhUR FOR DPBSE |
8JP-F357A-00-00 |
US $275 |
||
|
38
|
38
8JP-RA807-00-00 Bush, 10Du10 |
8JP-RA807-00-00 |
US $42.64 |
||
|
39
|
39
8JP-RA811-00-00 Bush, 1815Du |
8JP-RA811-00-00 |
US $6.62 |
||
|
40
|
40
8JP-RA361-00-00 Nut, Flange Locking M12X1.25 |
8JP-RA361-00-00 |
US $5.08 |
||
|
41
|
41
8JP-F3543-00-00 Arm, 1 |
8JP-F3543-00-00 |
US $12.08 |
||
|
42
|
42
8JP-RA721-00-00 Collar, 9 |
8JP-RA721-00-00 |
US $16.79 |
||
|
43
|
43
8JP-RA1A7-00-00 Bolt, Flange M12X1.25X76 |
8JP-RA1A7-00-00 |
from US $3.20 |
||
|
44
|
44
8JP-RA1A4-00-00 Bolt, Flange M10X1.25X75 |
8JP-RA1A4-00-00 |
US $3.26 |
||
|
45
|
45
8JP-RA719-00-00 Collar, 7 |
8JP-RA719-00-00 |
US $12.92 |
||
|
46
|
46
8JP-RA360-00-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
47
|
47
8JP-RA724-00-00 Collar, 12 |
8JP-RA724-00-00 |
US $14.98 |
||
|
48
|
48
8JP-RA1A3-00-00 Bolt, Flange M10X1.25X50 |
8JP-RA1A3-00-00 |
US $20.90 |
||
|
49
|
49
8JP-RA360-00-00 Nut, Flange Locking M10X1.25 |
8JP-RA360-00-00 |
US $6.32 |
||
|
50
|
50
8JW-F3351-00-00 Spring |
8JW-F3351-00-00 |
US $44.35 |
||
|
51
|
51
8KP-F330E-00-00 DAMPER ASY |
8KP-F330E-00-00 |
US $922.11 |
||
|
52
|
52
8JP-RA817-00-00 Bush, 8 |
8JP-RA817-00-00 |
US $20.30 |
||
| replacement | |||||
|
52
|
52
8JP-RA814-00-00 Bush, 5 |
8JP-RA814-00-00 |
US $11.96 |
||
|
53
|
53
8JP-RA732-00-00 Collar, 15 |
8JP-RA732-00-00 |
US $37.80 |
||
|
54
|
54
8JP-RA817-20-00 BUSH, 8 |
8JP-RA817-20-00 |
US $30.44 |
||
|
55
|
55
8KP-F151J-00-00 LABEL 6 |
8KP-F151J-00-00 |
US $27.16 |
||
