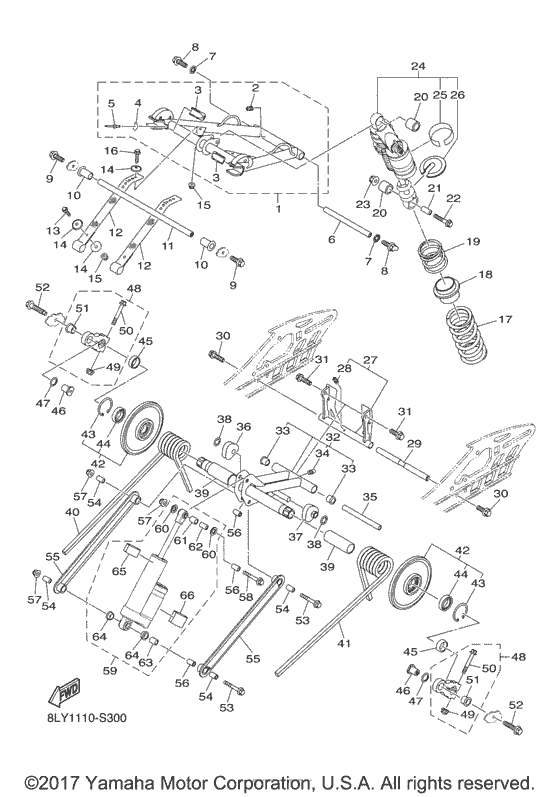

Track suspension 2 Diagram Yamaha SRS10/ SW10 Sidewinder L-TX LE
- Model code
- 8LY1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- B
- Model
- Sidewinder L-TX LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8LJ-G7331-00-00 ARM, PIVOT 1 |
8LJ-G7331-00-00 |
US $237.24 |
||
|
2
|
2
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
3
|
3
8JP-G7456-00-00 Damper 1 |
8JP-G7456-00-00 |
US $14.86 |
||
|
4
|
4
8JP-G7359-00-00 Washer |
8JP-G7359-00-00 |
US $4.18 |
||
|
5
|
5
8JP-RA521-00-00 Rivet, 12 |
8JP-RA521-00-00 |
US $23.40 |
||
|
6
|
6
8JP-G7486-20-00 Shaft 4 |
8JP-G7486-20-00 |
US $62.73 |
||
|
7
|
7
8JP-RA457-00-00 Washer, Tooth M10 |
8JP-RA457-00-00 |
US $1.62 |
||
|
8
|
8
8JP-RA199-00-00 Bolt, Flange M10X1.25X30 |
8JP-RA199-00-00 |
US $8.64 |
||
|
9
|
9
8JP-RA1A0-00-00 Bolt, Flange M10X1.25X40 |
8JP-RA1A0-00-00 |
US $3.42 |
||
|
10
|
10
8JP-RA805-00-00 Bush, 4 |
8JP-RA805-00-00 |
US $22.54 |
||
|
11
|
11
8JP-G7465-00-00 Shaft 1 |
8JP-G7465-00-00 |
US $63.23 |
||
|
12
|
12
8JP-G7495-00-00 Stopper 1 |
8JP-G7495-00-00 |
US $19.01 |
||
|
13
|
13
8JP-RA183-00-00 Bolt, Flange M6X1.0X30 |
8JP-RA183-00-00 |
US $3.10 |
||
|
14
|
14
8JP-RA450-00-00 Washer, 6.87X25.4X2.32 |
8JP-RA450-00-00 |
US $4.52 |
||
|
15
|
15
8JM-RA322-00-00 Nut, Flange M6-1.0 |
8JM-RA322-00-00 |
US $7.75 |
||
|
16
|
16
8JP-RA181-00-00 Bolt, Flange M6X1.0X20 |
8JP-RA181-00-00 |
US $6.40 |
||
|
17
|
17
8KP-G7336-00-00 SPRING |
8KP-G7336-00-00 |
US $94.54 |
||
|
18
|
18
8KP-F331K-00-00 ADJUSTER |
8KP-F331K-00-00 |
US $7.25 |
||
|
19
|
19
8KP-G7427-00-00 SPRING 3 |
8KP-G7427-00-00 |
US $112.84 |
||
|
20
|
20
8JP-RA730-00-00 Collar, 22.4 |
8JP-RA730-00-00 |
US $9.54 |
||
|
21
|
21
8JP-RA726-10-00 COLLAR, 14 |
8JP-RA726-10-00 |
US $10.60 |
||
|
22
|
22
8JP-RA1A2-10-00 Bolt, Flange M10X1.25X45 |
8JP-RA1A2-10-00 |
US $9.67 |
||
|
23
|
23
8JP-RA378-01-00 LOCK NUT |
8JP-RA378-01-00 |
US $7.30 |
||
|
24
|
24
8KP-F2201-00-00 DAMPER SUB ASSY |
8KP-F2201-00-00 |
US $761.02 |
||
| replacement | |||||
|
24
|
24
8KP-F2201-10-00 Damper Sub Asy |
8KP-F2201-10-00 |
US $811.08 |
||
|
25
|
25
8JW-F151J-10-00 LABEL 6 |
8JW-F151J-10-00 |
US $27.20 |
||
|
26
|
26
8JW-F331K-00-00 ADJUSTER |
8JW-F331K-00-00 |
US $41.31 |
||
|
27
|
27
8JP-G7417-00-00 Bracket 3 |
8JP-G7417-00-00 |
US $82.66 |
||
|
28
|
28
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
29
|
29
8JP-G7488-10-00 Shaft 6 |
8JP-G7488-10-00 |
US $26.06 |
||
|
30
|
30
8JP-RA199-00-00 Bolt, Flange M10X1.25X30 |
8JP-RA199-00-00 |
US $8.64 |
||
|
31
|
31
8JP-RA1A1-00-00 Bolt, Flange M10X1.25X40 |
8JP-RA1A1-00-00 |
US $10.54 |
||
|
32
|
32
8JP-G7332-00-00 Arm, Pivot 2 |
8JP-G7332-00-00 |
US $247.86 |
||
|
33
|
33
8JP-RA808-00-00 Bush, 0.628 |
8JP-RA808-00-00 |
US $19.66 |
||
|
34
|
34
8JP-RAL01-00-00 Nipple, Grease 1 |
8JP-RAL01-00-00 |
US $16.30 |
||
|
35
|
35
8JP-G7487-00-00 Shaft 5 |
8JP-G7487-00-00 |
US $34.02 |
||
|
36
|
36
8JM-G7448-00-00 Hook 3 |
8JM-G7448-00-00 |
US $19.22 |
||
|
37
|
37
8JM-G7447-00-00 Hook 2 |
8JM-G7447-00-00 |
US $23.78 |
||
|
38
|
38
8JM-RA315-00-00 Nut |
8JM-RA315-00-00 |
US $11.50 |
||
|
39
|
39
8JP-G7445-00-00 Protector |
8JP-G7445-00-00 |
US $5.74 |
||
|
40
|
40
8JX-G7474-00-00 Spring, Rear 2 |
8JX-G7474-00-00 |
US $104.13 |
||
|
41
|
41
8JX-G7473-00-00 Spring, Rear 1 |
8JX-G7473-00-00 |
US $111.91 |
||
|
42
|
42
8JX-G7312-00-00 Wheel, Suspension 2 |
8JX-G7312-00-00 |
US $65.81 |
||
|
43
|
43
8JP-RAH04-00-00 Circlip, 2 |
8JP-RAH04-00-00 |
US $9.52 |
||
|
44
|
44
8JP-RAG03-00-00 Bearing, 2 |
8JP-RAG03-00-00 |
US $42.80 |
||
|
45
|
45
8JP-RA727-00-00 Collar, 12.81 |
8JP-RA727-00-00 |
US $2.36 |
||
|
46
|
46
8JP-G7368-00-00 Nut |
8JP-G7368-00-00 |
US $6.14 |
||
|
47
|
47
8JP-RA436-00-00 Washer, 0.035 |
8JP-RA436-00-00 |
US $5.85 |
||
|
48
|
48
8LJ-G7361-00-00 ARM, REAR PIVOT 1 |
8LJ-G7361-00-00 |
US $76.57 |
||
|
49
|
49
8JM-RA301-00-00 Nut, Self-Locking M8-1.25 |
8JM-RA301-00-00 |
US $1.40 |
||
|
50
|
50
8JP-RA191-00-00 Bolt, Flange M8X1.25X60 |
8JP-RA191-00-00 |
US $75.44 |
||
|
51
|
51
8JP-RA813-00-00 Bush, 12Fdu12 |
8JP-RA813-00-00 |
US $6.46 |
||
|
52
|
52
8JP-RA196-00-00 Bolt, Flange M10X1.25X30 |
8JP-RA196-00-00 |
US $19.04 |
||
|
53
|
53
8JP-RA1B4-00-00 Bolt, Flange |
8JP-RA1B4-00-00 |
US $11.70 |
||
|
54
|
54
8JP-RA735-00-00 Collar, 19 |
8JP-RA735-00-00 |
US $3.74 |
||
|
55
|
55
8JX-G7494-00-00 Rod, Relay |
8JX-G7494-00-00 |
US $45.86 |
||
|
56
|
56
8JP-RA724-00-00 Collar, 12 |
8JP-RA724-00-00 |
US $14.98 |
||
|
57
|
57
8JP-RA378-01-00 LOCK NUT |
8JP-RA378-01-00 |
US $7.30 |
||
|
58
|
58
8JP-RA1A2-10-00 Bolt, Flange M10X1.25X45 |
8JP-RA1A2-10-00 |
US $9.67 |
||
|
59
|
59
8KP-G7480-10-00 SHOCK ABSORBER |
8KP-G7480-10-00 |
US $1,265.58 |
||
|
60
|
60
8KN-RA459-20-00 WASHER, SEAT 1 |
8KN-RA459-20-00 |
US $15.52 |
||
|
61
|
61
8KN-RA819-30-00 Bush, Shock |
8KN-RA819-30-00 |
US $42.55 |
||
|
62
|
62
8JW-RA732-10-00 COLLAR, 15 |
8JW-RA732-10-00 |
US $29.68 |
||
|
63
|
63
8JP-RA732-00-00 Collar, 15 |
8JP-RA732-00-00 |
US $37.80 |
||
|
64
|
64
8JP-RA817-00-00 Bush, 8 |
8JP-RA817-00-00 |
US $20.30 |
||
| replacement | |||||
|
64
|
64
8JP-RA814-00-00 Bush, 5 |
8JP-RA814-00-00 |
US $11.96 |
||
|
65
|
65
8KN-F2259-70-00 Label, Warning |
8KN-F2259-70-00 |
US $9.99 |
||
|
66
|
66
8KN-F151J-10-00 LABEL 6 |
8KN-F151J-10-00 |
US $21.80 |
||
