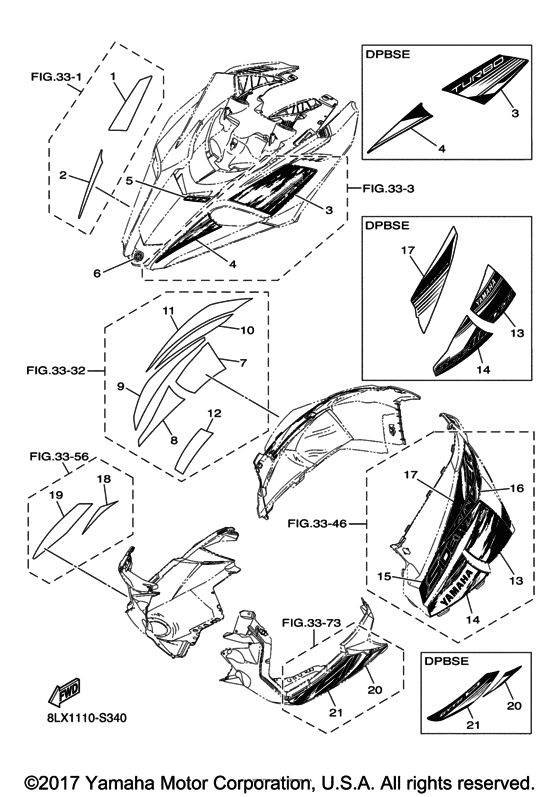

Emblem Diagram Yamaha SRS10/ SW10 Sidewinder R-TX SE
- Model code
- 8LX1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder R-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KC-K711M-00-00 GRAPHIC, SHROUDUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711M-00-00 |
US $38.43 |
||
|
1
|
1
8MG-K711M-00-00 GRAPHIC, SHROUDUse for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711M-00-00 |
US $27.36 |
||
|
2
|
2
8MG-K711P-00-00 GRAPHIC, SHROUD 4Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711P-00-00 |
US $14.53 |
||
|
2
|
2
8KC-K711P-00-00 GRAPHIC, SHROUD 4Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711P-00-00 |
US $16.31 |
||
|
3
|
3
8KC-K711L-00-00 GRAPHIC, SHROUDUse for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711L-00-00 |
US $25.27 |
||
|
3
|
3
8MG-K711L-00-00 GRAPHIC, SHROUDUse for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711L-00-00 |
US $30.19 |
||
|
4
|
4
8MG-K711N-00-00 GRAPHIC, SHROUD 3Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711N-00-00 |
US $33.95 |
||
|
4
|
4
8KC-K711N-00-00 GRAPHIC, SHROUD 3Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711N-00-00 |
US $15.12 |
||
|
5
|
5
8LR-K711R-00-00 GRAPHIC, SHROUD CE |
8LR-K711R-00-00 |
US $22.86 |
||
|
6
|
6
5KM-2175B-00-00 Tuning Fork Mark |
5KM-2175B-00-00 |
from US $13.56 |
||
|
7
|
7
8KC-K711F-00-00 GRAPHIC 6Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711F-00-00 |
US $70.16 |
||
|
7
|
7
8MG-K711F-00-00 GRAPHIC 6Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711F-00-00 |
US $36.45 |
||
|
8
|
8
8MG-K711D-00-00 GRAPHIC 4Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711D-00-00 |
US $32.13 |
||
|
8
|
8
8KC-K711D-00-00 GRAPHIC 4Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711D-00-00 |
US $27.74 |
||
|
9
|
9
8MG-K712H-00-00 GRAPHIC 8Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K712H-00-00 |
US $43.09 |
||
|
10
|
10
8MG-K712K-00-00 GRAPHIC 10Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K712K-00-00 |
US $16.31 |
||
|
11
|
11
8MG-K711B-00-00 GRAPHIC 2Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711B-00-00 |
US $15.23 |
||
|
11
|
11
8KC-K711B-00-00 GRAPHIC 2Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711B-00-00 |
US $37.21 |
||
|
12
|
12
8MG-K711W-00-00 GRAPHIC 11Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711W-00-00 |
US $15.07 |
||
|
12
|
12
8KC-K711W-00-00 GRAPHIC 11Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711W-00-00 |
US $27.74 |
||
|
13
|
13
8MG-K711E-00-00 GRAPHIC 5Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711E-00-00 |
US $36.45 |
||
|
13
|
13
8KC-K711E-00-00 GRAPHIC 5Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711E-00-00 |
US $45.23 |
||
|
14
|
14
8MG-K711C-00-00 GRAPHIC 3Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711C-00-00 |
US $36.45 |
||
|
14
|
14
8KC-K711C-00-00 GRAPHIC 3Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711C-00-00 |
US $25.63 |
||
|
15
|
15
8MG-K712G-00-00 GRAPHIC 7Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K712G-00-00 |
US $41.31 |
||
|
16
|
16
8MG-K712J-00-00 GRAPHIC 9Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K712J-00-00 |
US $15.19 |
||
|
17
|
17
8MG-K711A-00-00 GRAPHIC 1Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711A-00-00 |
US $15.23 |
||
|
17
|
17
8KC-K711A-00-00 GRAPHIC 1Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711A-00-00 |
US $41.60 |
||
|
18
|
18
8MG-K711V-00-00 GRAPHIC 10Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711V-00-00 |
US $44.60 |
||
|
18
|
18
8KC-K711V-00-00 GRAPHIC 10Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711V-00-00 |
US $6.80 |
||
|
19
|
19
8MG-K711H-00-00 GRAPHIC 8Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711H-00-00 |
US $20.45 |
||
|
19
|
19
8KC-K711H-00-00 GRAPHIC 8Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711H-00-00 |
US $20.77 |
||
|
20
|
20
8MG-K711U-00-00 GRAPHIC 9Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711U-00-00 |
US $58.95 |
||
|
20
|
20
8KC-K711U-00-00 GRAPHIC 9Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711U-00-00 |
US $6.80 |
||
|
21
|
21
8KC-K711G-00-00 8LR-K711R-00-00Use for Color DEEP PURPLISH BLUE SOLID E ( DPBSE / 0583 ) |
8KC-K711G-00-00 |
US $15.25 |
||
|
21
|
21
8MG-K711G-00-00 GRAPHIC 7Use for Color MEDIUM GRAY ( MDGR / 00RG ) |
8MG-K711G-00-00 |
US $32.02 |
