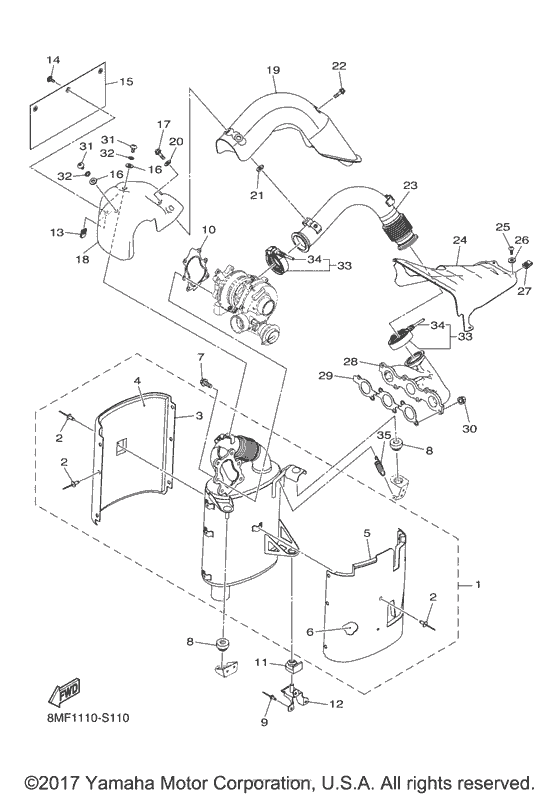

Exhaust Diagram Yamaha SRS10/ SW10 Sidewinder R-TX SE
- Model code
- 8LX1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder R-TX SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KC-E4750-01-00 SILENCER ASSY |
8KC-E4750-01-00 |
US $806.94 |
||
|
2
|
2
8KC-RA510-00-00 RIVET, 1 |
8KC-RA510-00-00 |
US $15.10 |
||
|
3
|
3
8KC-E4728-00-00 PROTECTOR, MUFFLER |
8KC-E4728-00-00 |
US $44.35 |
||
|
4
|
4
8KC-E4736-00-00 MAT 2 |
8KC-E4736-00-00 |
US $16.31 |
||
|
5
|
5
8KC-E4718-00-00 PROTECTOR, MUFFLER |
8KC-E4718-00-00 |
US $126.90 |
||
|
6
|
6
8KC-E4733-00-00 MAT 1 |
8KC-E4733-00-00 |
US $15.93 |
||
|
7
|
7
8KC-RA1B6-00-00 BOLT, FLANGE 2 |
8KC-RA1B6-00-00 |
US $41.46 |
||
|
8
|
8
8JP-E5357-00-00 Grommet |
8JP-E5357-00-00 |
US $30.46 |
||
|
9
|
9
8JP-RA520-10-00 Rivet |
8JP-RA520-10-00 |
US $5.80 |
||
|
10
|
10
8KC-E4623-00-00 GASKET, EXHAUST PI |
8KC-E4623-00-00 |
US $27.74 |
||
|
11
|
11
8JP-E5375-00-00 Grommet |
8JP-E5375-00-00 |
US $22.46 |
||
|
12
|
12
8JP-E4744-00-00 Bracket |
8JP-E4744-00-00 |
US $19.89 |
||
|
13
|
13
8JP-RA349-00-00 Nut, Clip |
8JP-RA349-00-00 |
US $3.10 |
||
|
14
|
14
8JP-RA202-00-00 SCREW, TAPPING 1/4 |
8JP-RA202-00-00 |
US $9.92 |
||
|
15
|
15
8KC-F3892-00-00 SHIELD, HEAT |
8KC-F3892-00-00 |
US $91.62 |
||
|
16
|
16
8KC-K7525-00-00 WASHER 1 |
8KC-K7525-00-00 |
US $2.80 |
||
|
17
|
17
95812-06016-00 Bolt, Flange |
95812-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
95817-06016-00 Bolt, Flange |
95817-06016-00 |
from US $1.07 |
||
|
18
|
18
8KC-E4637-00-00 EXHAUST COVER ASS' |
8KC-E4637-00-00 |
US $164.16 |
||
|
19
|
19
8KJ-14624-00-00 COVER, EXHAUST |
8KJ-14624-00-00 |
US $265.97 |
||
| replacement | |||||
|
19
|
19
8KJ-W1467-00-00 Exhaust Cover Set |
8KJ-W1467-00-00 |
US $399.02 |
||
|
20
|
20
90201-06078-00 Washer, Plate |
90201-06078-00 |
from US $1.70 |
||
|
21
|
21
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
22
|
22
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.07 |
||
| replacement | |||||
|
22
|
22
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
23
|
23
8KC-E4610-00-00 EXHAUST PIPE ASSY |
8KC-E4610-00-00 |
US $327.58 |
||
|
24
|
24
8KC-E4627-00-00 COVER, EXHAUST |
8KC-E4627-00-00 |
US $62.51 |
||
|
25
|
25
8JP-RA2A0-00-00 Screw, 11 |
8JP-RA2A0-00-00 |
US $7.38 |
||
|
26
|
26
8JP-RA441-00-00 Washer, 1/4X0.625X0.065 |
8JP-RA441-00-00 |
US $4.30 |
||
|
27
|
27
8JP-RA353-00-00 Nut, Clip M5 |
8JP-RA353-00-00 |
US $16.64 |
||
|
28
|
28
8KJ-41131-00-00 MANIFOLD, EXT. 1 |
8KJ-41131-00-00 |
from US $1,036.20 |
||
|
29
|
29
8KJ-14613-00-00 GASKET, EXHAUST PIPE |
8KJ-14613-00-00 |
from US $19.13 |
||
|
30
|
30
90179-09004-00 NUT |
90179-09004-00 |
from US $2.55 |
||
|
31
|
31
8KC-RA1C0-00-00 BOLT, BUTTON HEAD |
8KC-RA1C0-00-00 |
US $5.96 |
||
|
32
|
32
8JM-RA407-00-00 Washer, Toothed Lock 1/4 |
8JM-RA407-00-00 |
US $1.70 |
||
|
33
|
33
8KC-E4715-00-00 BAND, MUFFLER |
8KC-E4715-00-00 |
US $58.14 |
||
|
34
|
34
8KC-E22C0-00-00 BOLT SET |
8KC-E22C0-00-00 |
US $36.45 |
||
|
35
|
35
8JP-RAD14-00-00 Spring, 3 |
8JP-RAD14-00-00 |
US $44.52 |
||
