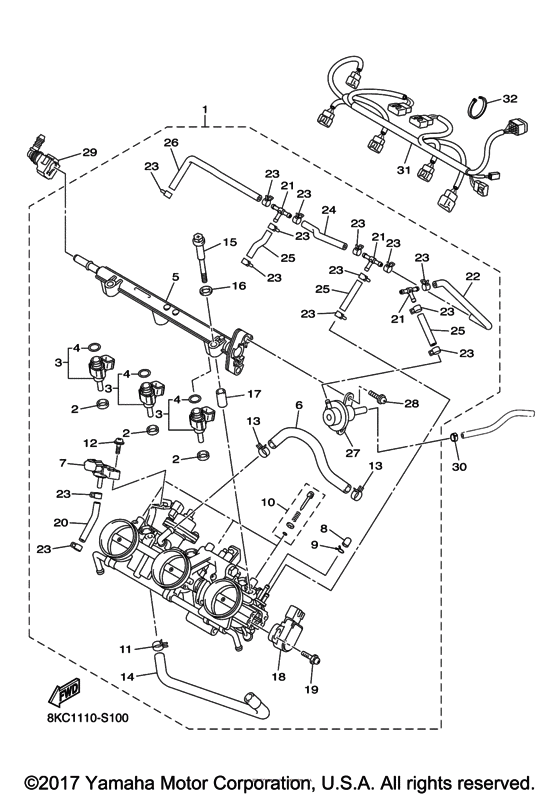

Intake 2 Diagram Yamaha SRS10/ SW10 Sidewinder X-TX 137 LE
- Model code
- 8MC1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Vivid Red Cocktail 1
- Color Variant
- A
- Model
- Sidewinder X-TX 137 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KJ-13750-00-00 Throttle Body Assy |
8KJ-13750-00-00 |
US $1,419.81 |
||
|
2
|
2
8FP-13556-10-00 Gasket, Manifold |
8FP-13556-10-00 |
from US $4.53 |
||
|
3
|
3
8KJ-13761-00-00 INJECTOR |
8KJ-13761-00-00 |
US $223 |
||
|
4
|
4
8FP-14147-00-00 O-Ring |
8FP-14147-00-00 |
US $24.68 |
||
|
5
|
5
8KJ-13938-00-00 PIPE |
8KJ-13938-00-00 |
US $269.84 |
||
|
6
|
6
8GL-13895-00-00 Hose, Air |
8GL-13895-00-00 |
from US $13.60 |
||
|
7
|
7
6BH-82380-00-00 Sensor, Pressure |
6BH-82380-00-00 |
from US $383.28 |
||
|
8
|
8
84M-14169-00-00 Cap |
84M-14169-00-00 |
from US $11.90 |
||
|
9
|
9
8KJ-14137-00-00 CLIP |
8KJ-14137-00-00 |
US $10.31 |
||
|
10
|
10
8GL-14503-00-00 Adjust Screw Set |
8GL-14503-00-00 |
from US $9.63 |
||
|
11
|
11
904-68081-04-00 Clip |
904-68081-04-00 |
from US $1.70 |
||
|
12
|
12
2C0-14216-00-00 Screw |
2C0-14216-00-00 |
from US $2.98 |
||
|
13
|
13
8KJ-14159-00-00 CLIP |
8KJ-14159-00-00 |
US $10.31 |
||
|
14
|
14
8HF-13545-00-00 Hose 1 |
8HF-13545-00-00 |
from US $9.78 |
||
|
15
|
15
8GL-13573-00-00 Bolt 1 |
8GL-13573-00-00 |
from US $7.23 |
||
|
16
|
16
8GL-13571-00-00 Washer |
8GL-13571-00-00 |
from US $1.70 |
||
|
17
|
17
8GL-14534-00-00 Collar |
8GL-14534-00-00 |
from US $4.39 |
||
|
18
|
18
8GL-85885-00-00 Throttle Sensor Assy |
8GL-85885-00-00 |
from US $67.01 |
||
| replacement | |||||
|
18
|
18
8GL-85885-01-00 THROTTLE SENSOR ASSY |
8GL-85885-01-00 |
from US $67.01 |
||
|
19
|
19
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
20
|
20
5JW-24311-00-00 Pipe, Fuel 1 |
5JW-24311-00-00 |
from US $4.39 |
||
|
21
|
21
68V-24376-00-00 Pipe, Joint 1 |
68V-24376-00-00 |
from US $9.07 |
||
|
22
|
22
8GL-13893-00-00 Hose, Air 3 |
8GL-13893-00-00 |
from US $3.97 |
||
|
23
|
23
5DM-14919-00-00 Clip |
5DM-14919-00-00 |
from US $4.53 |
||
|
24
|
24
68V-13533-00-00 Hose, Vacuum Sensing 4 |
68V-13533-00-00 |
from US $6.80 |
||
|
25
|
25
8FP-14349-30-00 Pipe |
8FP-14349-30-00 |
from US $2.41 |
||
|
26
|
26
8KJ-1410E-00-00 HOSE |
8KJ-1410E-00-00 |
US $10.51 |
||
|
27
|
27
8KJ-13906-00-00 REGULATOR, PRESSURE |
8KJ-13906-00-00 |
US $505.75 |
||
|
28
|
28
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
29
|
29
8GC-24304-00-00 FUEL PIPE JOINT COMP |
8GC-24304-00-00 |
US $18.04 |
||
|
30
|
30
8JM-RAC01-00-00 Clip, 2 |
8JM-RAC01-00-00 |
US $11.60 |
||
|
31
|
31
8KC-H2386-00-00 EXTENSION, WIRE HA |
8KC-H2386-00-00 |
US $205.72 |
||
|
32
|
32
8JP-RAB04-00-00 Clamp, 2 (11.5 Inch)UN |
8JP-RAB04-00-00 |
US $5.80 |
||
|
32
|
32
8JM-RAB01-00-00 Clamp, 2 (8 Inch)UN |
8JM-RAB01-00-00 |
US $6.30 |
||
