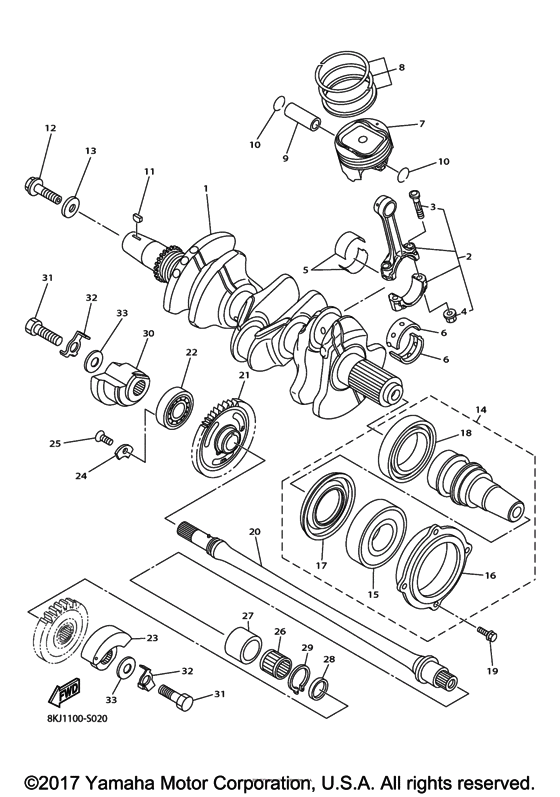

Crankshaft & Piston Diagram Yamaha SRS10/ SW10 Sidewinder X-TX 141 LE
- Model code
- 8MD1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder X-TX 141 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KJ-11400-00-00 CRANKSHAFT ASSY |
8KJ-11400-00-00 |
US $900.85 |
||
|
2
|
2
8KJ-11650-00-00 CONNECTING ROD ASSY |
8KJ-11650-00-00 |
from US $154.74 |
||
|
3
|
3
5JW-11654-00-00 Bolt, Connecting Rod |
5JW-11654-00-00 |
from US $3.64 |
||
|
4
|
4
90179-08327-00 Nut |
90179-08327-00 |
from US $1.70 |
||
|
5
|
5
5JW-11656-40-00 Plane Bearing, Connecting RodUR YELLOW |
5JW-11656-40-00 |
from US $4.96 |
||
|
5
|
5
5JW-11656-A0-00 Plane Bearing, Connecting RodUR WHITE |
5JW-11656-A0-00 |
from US $7.23 |
||
|
5
|
5
5JW-11656-00-00 Plane Bearing, Connecting RodUR BLUE |
5JW-11656-00-00 |
from US $4.92 |
||
|
5
|
5
5JW-11656-10-00 Plane Bearing, Connecting RodUR BLACK |
5JW-11656-10-00 |
from US $5.30 |
||
|
5
|
5
5JW-11656-20-00 Plane Bearing, Connecting RodUR BROWN |
5JW-11656-20-00 |
from US $4.96 |
||
|
5
|
5
5JW-11656-30-00 Plane Bearing, Connecting RodUR GREEN |
5JW-11656-30-00 |
from US $6.30 |
||
|
6
|
6
3LD-11416-10-00 Plane Bearing, Crankshaft 1UR BLACK |
3LD-11416-10-00 |
from US $8.60 |
||
|
6
|
6
3LD-11416-30-00 Plane Bearing, Crankshaft 1UR GREEN |
3LD-11416-30-00 |
from US $9.92 |
||
|
6
|
6
3LD-11416-40-00 Plane Bearing, Crankshaft 1UR YELLOW |
3LD-11416-40-00 |
from US $7.94 |
||
|
6
|
6
3LD-11416-50-00 Plane Bearing, Crankshaft 1UR PINK |
3LD-11416-50-00 |
from US $7.94 |
||
|
6
|
6
3LD-11416-60-00 Plane Bearing, Crankshaft 1UR RED |
3LD-11416-60-00 |
from US $7.94 |
||
|
6
|
6
3LD-11416-70-00 Plane Bearing, Crankshaft 1UR WHITE |
3LD-11416-70-00 |
from US $7.62 |
||
|
6
|
6
3LD-11416-20-00 Plane Bearing, Crankshaft 1UR BROWN |
3LD-11416-20-00 |
from US $7.94 |
||
|
7
|
7
8KJ-11631-00-00 PISTON (STD) |
8KJ-11631-00-00 |
from US $92.15 |
||
|
8
|
8
8KJ-11601-00-00 PISTON RING SET (STD |
8KJ-11601-00-00 |
from US $22.75 |
||
|
9
|
9
8KJ-11633-00-00 PIN, PISTON |
8KJ-11633-00-00 |
from US $17.43 |
||
|
10
|
10
93450-22146-00 Circlip |
93450-22146-00 |
from US $1.70 |
||
|
11
|
11
902-80030-45-00
Key, Woodruff
|
902-80030-45-00 |
— | ||
| replacement | |||||
|
11
|
11
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
12
|
12
90105-12032-00 Bolt, Flange |
90105-12032-00 |
from US $21.25 |
||
|
13
|
13
902-01121-H0-00
Washer, Plate
|
902-01121-H0-00 |
— | ||
| replacement | |||||
|
13
|
13
90201-12191-00 Washer, Plate |
90201-12191-00 |
from US $5.81 |
||
|
14
|
14
8KJ-11406-00-00 SHAFT ASSY |
8KJ-11406-00-00 |
from US $384.65 |
||
|
15
|
15
933-06307-21-00 Bearing |
933-06307-21-00 |
from US $55.40 |
||
|
16
|
16
8KH-16775-00-00 Housing, Bearing |
8KH-16775-00-00 |
from US $76.40 |
||
|
17
|
17
931-02450-08-00 Oil Seal |
931-02450-08-00 |
from US $15.16 |
||
|
18
|
18
933-06010-03-00 Bearing |
933-06010-03-00 |
from US $45.18 |
||
|
19
|
19
95812-06020-00 Bolt, Flange |
95812-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
19
|
19
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.13 |
||
|
20
|
20
2HC-11407-00-00 Shaft Assy, 2 |
2HC-11407-00-00 |
from US $129.59 |
||
|
21
|
21
2HC-11530-00-00 Balancer Weight Gear Comp |
2HC-11530-00-00 |
from US $134.98 |
||
|
22
|
22
93306-30325-00 BEARING |
93306-30325-00 |
from US $44.21 |
||
|
23
|
23
8ES-11454-00-00 Weight 1 |
8ES-11454-00-00 |
from US $41.45 |
||
|
24
|
24
4JT-15381-01-00 Plate, Bearing Cover |
4JT-15381-01-00 |
from US $7.65 |
||
|
25
|
25
90151-06024-00 Screw, Countersunk |
90151-06024-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
90151-06023-00 Screw, Countersunk |
90151-06023-00 |
from US $1.34 |
||
|
26
|
26
93310-42239-00 Bearing |
93310-42239-00 |
from US $56.65 |
||
|
27
|
27
8ES-11428-01-00 Bearing 1 |
8ES-11428-01-00 |
from US $23.52 |
||
|
28
|
28
8ES-11478-00-00 Collar |
8ES-11478-00-00 |
from US $5.24 |
||
|
29
|
29
93450-32152-00 Circlip |
93450-32152-00 |
from US $1.84 |
||
|
30
|
30
2HC-11464-00-00 Weight 2 |
2HC-11464-00-00 |
from US $51.81 |
||
|
31
|
31
97012-10025-00 Bolt |
97012-10025-00 |
from US $2.41 |
||
| replacement | |||||
|
31
|
31
97017-10025-00 Bolt |
97017-10025-00 |
from US $2.41 |
||
|
32
|
32
90215-10003-00 Washer, Lock |
90215-10003-00 |
from US $1.84 |
||
|
33
|
33
90201-10591-00 Washer, Plate |
90201-10591-00 |
from US $1.35 |
||
| replacement | |||||
|
33
|
33
90201-10774-00 Washer, Plate (3L6) |
90201-10774-00 |
from US $1.35 |
||
