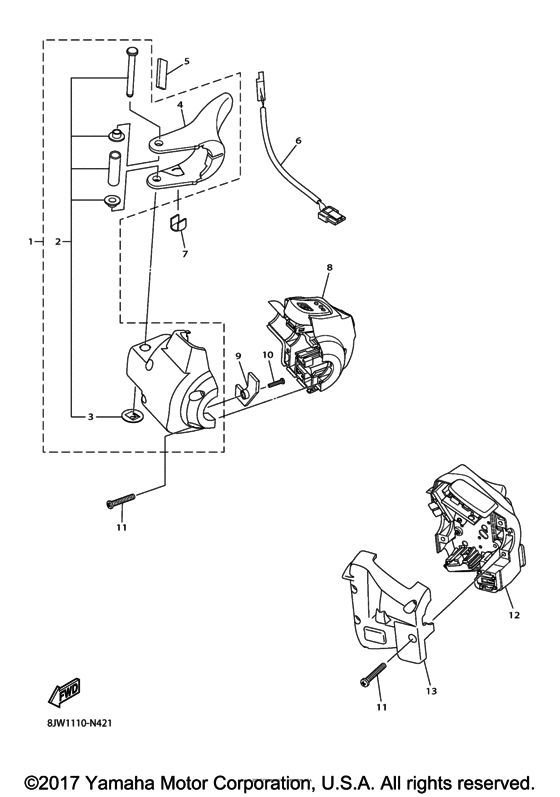

Handle switch & lever Diagram Yamaha SRS10/ SW10 Sidewinder X-TX 141 LE
- Model code
- 8MD1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder X-TX 141 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8JP-H2720-00-00 Lever Holder Assy (Right) |
8JP-H2720-00-00 |
US $128.66 |
||
|
2
|
2
8JP-H2620-00-00 Lever Holder Assy (Right) |
8JP-H2620-00-00 |
US $37.06 |
||
|
3
|
3
8JP-RA346-00-00 Nut, 0.125 |
8JP-RA346-00-00 |
US $10.90 |
||
|
4
|
4
8JP-G2138-00-00 Lever, Throttle |
8JP-G2138-00-00 |
US $55.94 |
||
|
5
|
5
8JP-H233W-00-00 Insu |
8JP-H233W-00-00 |
US $11.46 |
||
|
6
|
6
8JP-H2970-00-00 Thumb Warmer Assy |
8JP-H2970-00-00 |
US $95.24 |
||
|
7
|
7
8JP-RAC10-00-00 Clip, 1 |
8JP-RAC10-00-00 |
US $2.48 |
||
|
8
|
8
8JP-H2710-00-00 Lever Holder Assy (Left) |
8JP-H2710-00-00 |
US $107.77 |
||
|
9
|
9
8JP-RAC11-00-00 Clip, 2 |
8JP-RAC11-00-00 |
US $2.30 |
||
|
10
|
10
8JP-RA285-00-00 Screw, 4-24X0.50 |
8JP-RA285-00-00 |
US $2.16 |
||
|
11
|
11
8JP-RA286-00-00 Screw, 8-18X0.875 |
8JP-RA286-00-00 |
US $1.88 |
||
|
12
|
12
8JP-H3972-00-00 Switch, Handle 4 |
8JP-H3972-00-00 |
US $117.94 |
||
|
13
|
13
8JP-H3973-00-00
Switch, Handle 3
|
8JP-H3973-00-00 |
— |
