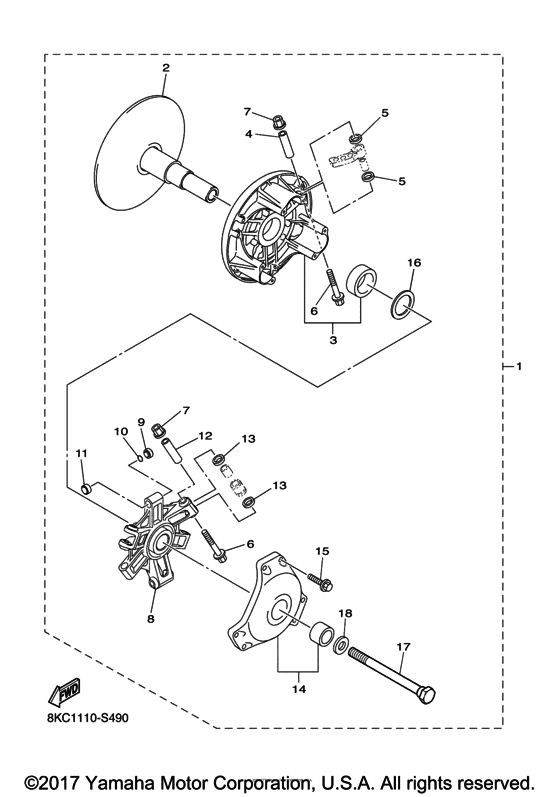

Alternate rebuild kit Diagram Yamaha SRS10/ SW10 Sidewinder X-TX 141 SE
- Model code
- 8ME1
- Engine Capacity
- 1000
- Year
- 2017
- Sales region
- USA (010)
- Colour
- Deep Purplish Blue Solid E
- Color Variant
- A
- Model
- Sidewinder X-TX 141 SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8KC-W176G-00-00 CLUTCH REPAIR KITAP |
8KC-W176G-00-00 |
US $1,049.70 |
||
|
2
|
2
8KC-17610-00-00 PRIMARY FIXED SHEAVE |
8KC-17610-00-00 |
US $445.23 |
||
|
3
|
3
8KC-17620-00-00 PRIMARY SLIDING SHEA |
8KC-17620-00-00 |
US $304.65 |
||
|
4
|
4
90387-05060-00 COLLAR |
90387-05060-00 |
US $16.33 |
||
|
5
|
5
90202-08005-00 WASHER, PLATE |
90202-08005-00 |
US $1.49 |
||
|
6
|
6
90105-05030-00 BOLT, FLANGE |
90105-05030-00 |
from US $1.28 |
||
|
7
|
7
95602-05200-00 Nut, U Flange |
95602-05200-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.42 |
||
|
8
|
8
8KC-17627-00-00 SPIDER |
8KC-17627-00-00 |
US $113.99 |
||
|
9
|
9
8KC-17653-00-00 SLIDER |
8KC-17653-00-00 |
US $19.13 |
||
|
10
|
10
93210-07100-00 O-Ring |
93210-07100-00 |
from US $1.34 |
||
|
11
|
11
8KC-17653-10-00 SLIDER |
8KC-17653-10-00 |
US $23.99 |
||
|
12
|
12
90387-05059-00 COLLAR |
90387-05059-00 |
from US $10.91 |
||
|
13
|
13
90202-09002-00 WASHER, PLATE |
90202-09002-00 |
US $1.49 |
||
|
14
|
14
8DF-17630-00-00 Primary Sheave Cap Comp |
8DF-17630-00-00 |
from US $112.05 |
||
|
15
|
15
95812-06030-00 Bolt, Flange |
95812-06030-00 |
from US $1.42 |
||
|
16
|
16
90201-33016-00 WASHER, PLATE |
90201-33016-00 |
US $16.72 |
||
|
17
|
17
8V0-17647-10-00 Bolt (L=156.5Mm) |
8V0-17647-10-00 |
from US $10.91 |
||
|
18
|
18
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
