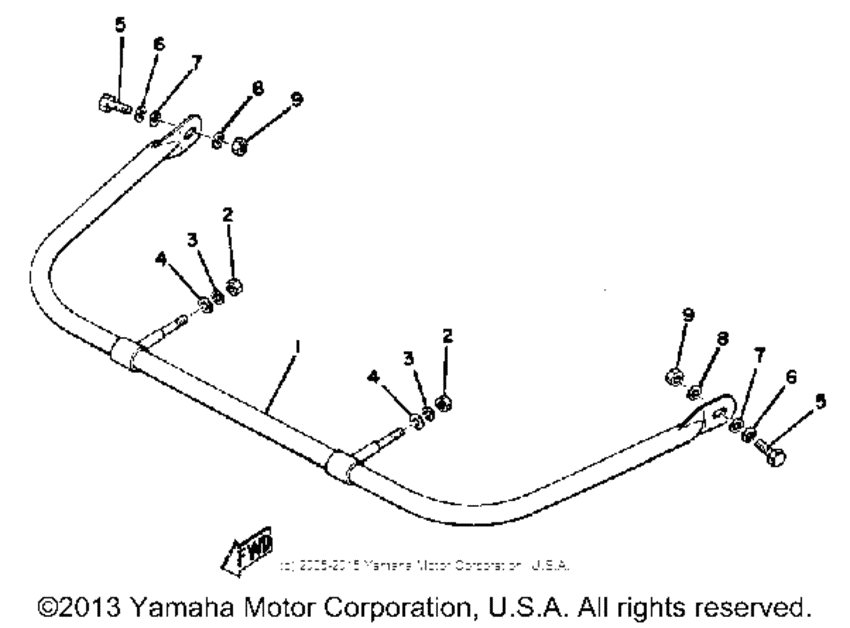

Bumper Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-77510-00-00
Front Bumper
|
8A7-77510-00-00 |
— | ||
|
2
|
2
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
2
|
2
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
3
|
3
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
4
|
4
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
5
|
5
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
5
|
5
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
90201-08104-00
Washer, Plate
|
90201-08104-00 |
— | ||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
9
|
9
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
9
|
9
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
