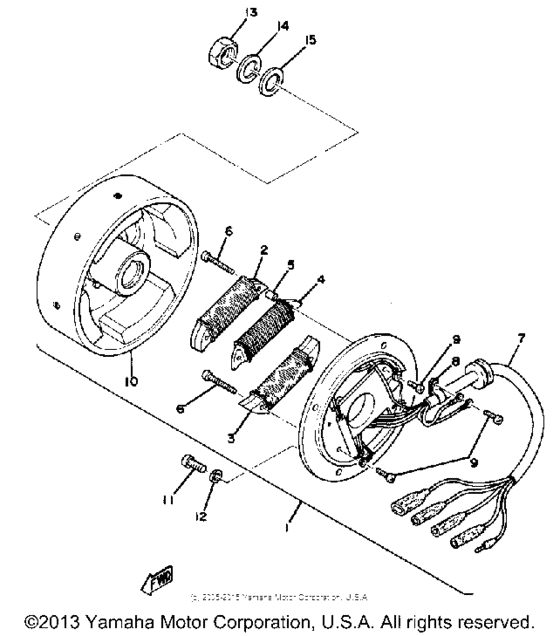

CDI & magneto Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8H1-85500-10-00
Cdi Magneto Assembly
|
8H1-85500-10-00 |
— | ||
|
2
|
2
8F2-85512-10-00
Coil Source 2
|
8F2-85512-10-00 |
— | ||
|
3
|
3
8F2-85513-10-00
Coil, Lighting 1
|
8F2-85513-10-00 |
— | ||
|
4
|
4
8F2-85541-10-00
Coil, Charge
|
8F2-85541-10-00 |
— | ||
|
5
|
5
647-81318-10-00
Spacer
|
647-81318-10-00 |
— | ||
|
6
|
6
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
6
|
6
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
6
|
6
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
7
|
7
8F2-85515-10-00
Lead Wire Assembly
|
8F2-85515-10-00 |
— | ||
|
8
|
8
109-81328-11-00
Clamp
|
109-81328-11-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.21 |
||
|
10
|
10
8F2-85550-10-00
Rotor Assembly
|
8F2-85550-10-00 |
— | ||
|
11
|
11
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
11
|
11
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
12
|
12
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
12
|
12
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
12
|
12
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
12
|
12
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
13
|
13
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
13
|
13
90170-16425-00 Nut |
90170-16425-00 |
from US $3.12 |
||
|
14
|
14
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
14
|
14
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
15
|
15
902-01162-47-00 Washer, Plate |
902-01162-47-00 |
from US $6.35 |
||
| replacement | |||||
|
15
|
15
90201-163G6-00 Washer, Plate |
90201-163G6-00 |
from US $7.79 |
||
