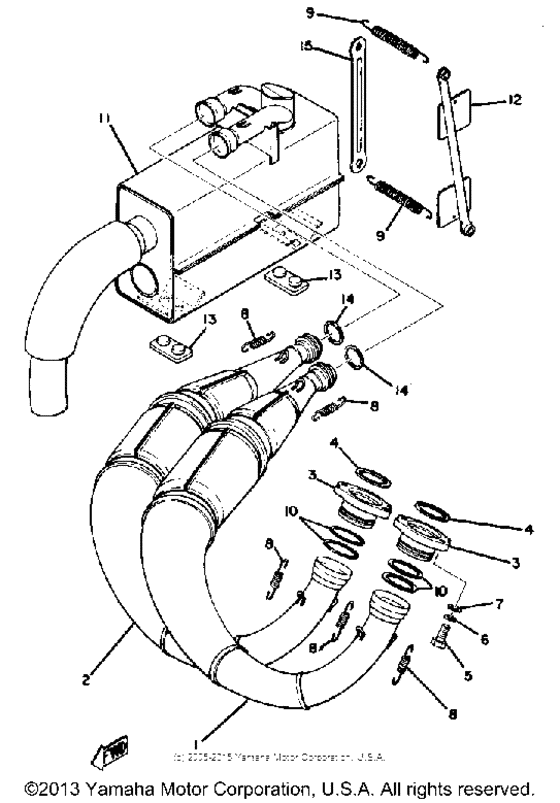

Exhaust Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8F2-14610-01-00 Exhaust Pipe Assembly L |
8F2-14610-01-00 |
US $540.59 |
||
|
2
|
2
8F2-14620-01-00
Exhaust Pipe Assembly R
|
8F2-14620-01-00 |
— | ||
|
3
|
3
8J0-14612-00-00
Nut, Ring
|
8J0-14612-00-00 |
— | ||
|
4
|
4
8A7-14613-00-00 Gasket, Exst Pipe |
8A7-14613-00-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
8A7-14613-09-00 Gasket |
8A7-14613-09-00 |
from US $10.06 |
||
|
5
|
5
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
8
|
8
90506-20115-00 Spring, Tension |
90506-20115-00 |
from US $7.18 |
||
|
9
|
9
90506-20158-00 Spring, Tension |
90506-20158-00 |
from US $10.20 |
||
|
10
|
10
888-14633-00-00 Ring |
888-14633-00-00 |
from US $6.52 |
||
|
11
|
11
8F2-14640-00-00 2Nd Silencer, Muff |
8F2-14640-00-00 |
US $765.50 |
||
|
12
|
12
8F2-14659-01-00
Stay, 2Nd Silenser
2ND SILENSER |
8F2-14659-01-00 |
— | ||
|
13
|
13
8A5-14728-02-00
Protector, Muffler 2
|
8A5-14728-02-00 |
— | ||
|
14
|
14
8F2-14633-00-00
Ring
|
8F2-14633-00-00 |
— | ||
|
15
|
15
8F2-14629-00-00
Stay, Protector
|
8F2-14629-00-00 |
— | ||
