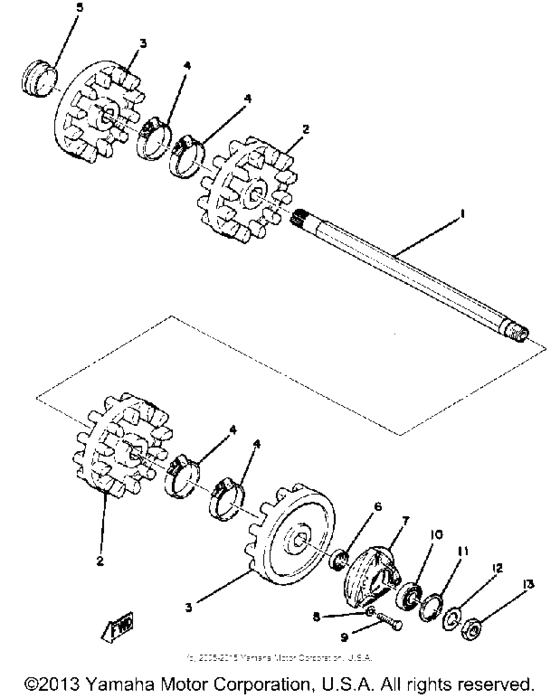

Front axle Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A5-W4751-00-00
Axle, Front
|
8A5-W4751-00-00 |
— | ||
|
2
|
2
8A7-47531-00-00
Wheel, Sprocket 1
|
8A7-47531-00-00 |
— | ||
|
3
|
3
8A7-47532-00-00 Wheel, Sprocket 2 |
8A7-47532-00-00 |
US $106.72 |
||
|
4
|
4
90460-50079-00 Clamp, Hose |
90460-50079-00 |
from US $16.86 |
||
|
5
|
5
810-47552-00-00
Cap (Not Avail)
|
810-47552-00-00 |
— | ||
|
6
|
6
931-02250-84-00
Oil Seal,sd-Type
|
931-02250-84-00 |
— | ||
| replacement | |||||
|
6
|
6
931-02253-32-00
OIL SEAL,SD-TYPE
|
931-02253-32-00 |
— | ||
|
7
|
7
841-47551-00-00
Housing, Front Axle
|
841-47551-00-00 |
— | ||
|
8
|
8
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
9
|
9
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
10
|
10
933-06004-12-00
Bearing
|
933-06004-12-00 |
— | ||
|
11
|
11
934-20440-29-00
Circlip, R-Type
|
934-20440-29-00 |
— | ||
|
12
|
12
90208-22001-00 Washer, Conical Spring |
90208-22001-00 |
from US $4.39 |
||
|
13
|
13
90170-22094-00 Nut |
90170-22094-00 |
from US $7.94 |
||
