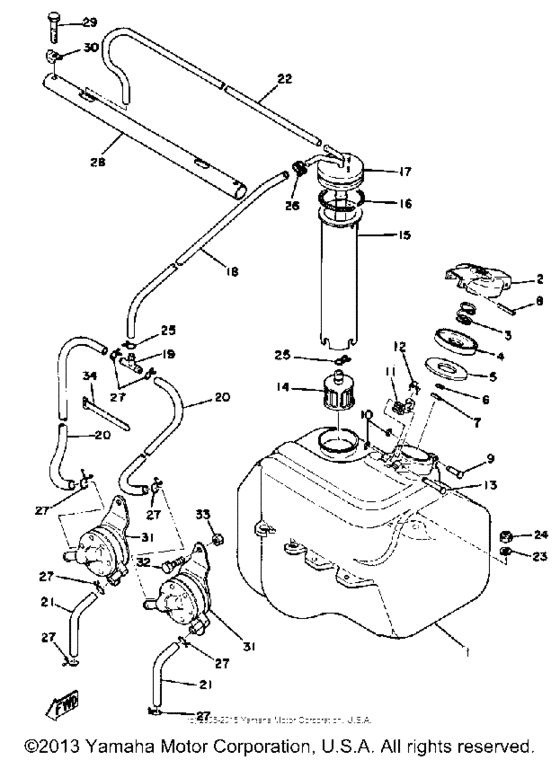

Fuel tank Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-24111-00-00
Fuel Tank
|
8A7-24111-00-00 |
— | ||
|
2
|
2
8A7-24611-00-00
Body, Cap
|
8A7-24611-00-00 |
— | ||
|
3
|
3
90501-20130-00 Spring, Compression |
90501-20130-00 |
from US $3.12 |
||
|
4
|
4
813-24613-01-00 Disc, Cap |
813-24613-01-00 |
from US $14.73 |
||
|
5
|
5
256-24612-00-00
Gasket, Cap
|
256-24612-00-00 |
— | ||
|
6
|
6
93210-04122-00 O-Ring |
93210-04122-00 |
from US $1.98 |
||
|
7
|
7
91609-30016-00 Pin, Spring |
91609-30016-00 |
US $2.98 |
||
| replacement | |||||
|
7
|
7
91690-30016-00 Pin, Spring |
91690-30016-00 |
from US $2 |
||
|
8
|
8
916-09250-32-00 Pin, Spring |
916-09250-32-00 |
from US $2.83 |
||
|
9
|
9
90249-03016-00
Pin, Spec''l Shape
|
90249-03016-00 |
— | ||
|
10
|
10
93430-02001-00 Circlip |
93430-02001-00 |
from US $1.84 |
||
|
11
|
11
83M-24628-00-00 Hook |
83M-24628-00-00 |
from US $4.53 |
||
|
12
|
12
905-08080-03-00
Spring, Torsion (813-24637-00)
813-24637-00 |
905-08080-03-00 |
— | ||
|
13
|
13
90249-03017-00 Pin |
90249-03017-00 |
from US $1.35 |
||
|
14
|
14
8H5-24560-00-00 Filter Assy |
8H5-24560-00-00 |
from US $11.76 |
||
|
15
|
15
865-24336-00-00 Pipe, Suction 2 |
865-24336-00-00 |
US $8.68 |
||
|
16
|
16
90506-06065-00 Spring, Tension |
90506-06065-00 |
from US $1.98 |
||
| replacement | |||||
|
16
|
16
905-06062-61-00 Spring, Tension (8R4) |
905-06062-61-00 |
from US $1.98 |
||
|
17
|
17
8A7-24335-00-00
Pipe, Suction 1
|
8A7-24335-00-00 |
— | ||
|
18
|
18
91A20-07018-00 Hose |
91A20-07018-00 |
from US $3.97 |
||
| replacement | |||||
|
18
|
18
91A21-07020-00 Hose |
91A21-07020-00 |
from US $3.97 |
||
|
19
|
19
807-24376-00-00 Pipe, Joint 1 |
807-24376-00-00 |
from US $6.52 |
||
|
20
|
20
90446-09014-00 Tube, Flexible Vinyl |
90446-09014-00 |
from US $8.64 |
||
| replacement | |||||
|
20
|
20
91A20-05080-00 Tube, Flexible Vinyl |
91A20-05080-00 |
from US $8.64 |
||
|
21
|
21
904-46091-35-00
Hose (5-390) (248-21745-00)
5-390 248-21745-00 |
904-46091-35-00 |
— | ||
|
22
|
22
904-46091-29-00
Hose
|
904-46091-29-00 |
— | ||
|
23
|
23
90201-08104-00
Washer, Plate
|
90201-08104-00 |
— | ||
|
24
|
24
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
24
|
24
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
25
|
25
90467-11009-00 Clip |
90467-11009-00 |
from US $1.07 |
||
|
26
|
26
90460-11002-00 Clip |
90460-11002-00 |
from US $1.28 |
||
| replacement | |||||
|
26
|
26
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
27
|
27
90467-09005-00 Clip |
90467-09005-00 |
from US $1.56 |
||
| replacement | |||||
|
27
|
27
90467-08017-00 Clip |
90467-08017-00 |
from US $1.56 |
||
|
28
|
28
878-24173-01-00
Band, Tnk Fitting 1
|
878-24173-01-00 |
— | ||
|
29
|
29
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
29
|
29
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.28 |
||
|
30
|
30
902-15060-48-00
Washer, Lock
|
902-15060-48-00 |
— | ||
|
31
|
31
8F2-24410-00-00
Fuel Pump Assembly
|
8F2-24410-00-00 |
— | ||
|
32
|
32
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
32
|
32
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
33
|
33
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
33
|
33
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
34
|
34
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
