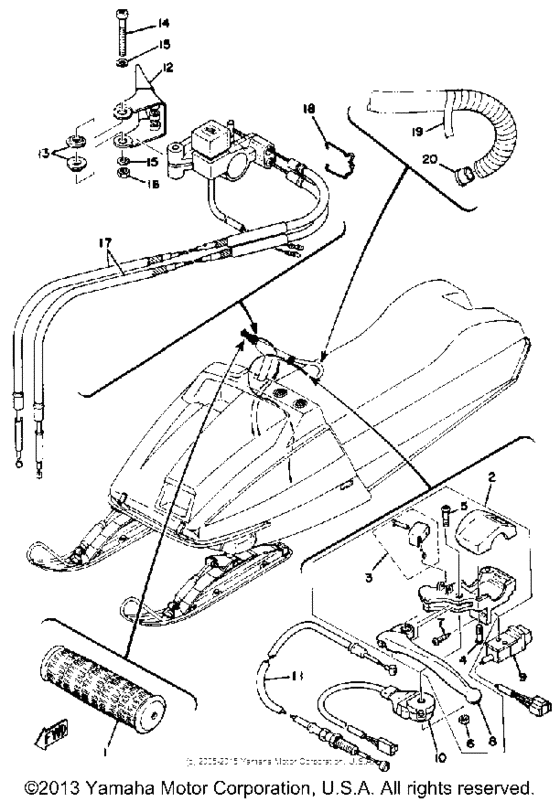

Grip & wiring Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
801-26241-01-00 Grip |
801-26241-01-00 |
from US $8.22 |
||
| replacement | |||||
|
1
|
1
801-26241-02-00 Grip |
801-26241-02-00 |
from US $8.22 |
||
|
2
|
2
8F2-W8291-01-00
Lever Holder Assembly L
|
8F2-W8291-01-00 |
— | ||
|
3
|
3
8E3-83930-00-00 Lever Lock Assy |
8E3-83930-00-00 |
from US $11.63 |
||
| replacement | |||||
|
3
|
3
8E3-W8393-01-00 Lever Lock Assy |
8E3-W8393-01-00 |
from US $10.33 |
||
|
4
|
4
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
4
|
4
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
4
|
4
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
5
|
5
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
5
|
5
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
5
|
5
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
6
|
6
95701-05300-00 Nut, Flange |
95701-05300-00 |
US $1.42 |
||
| replacement | |||||
|
6
|
6
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
7
|
7
97780-30312-00
Screw, O Head Tapping
|
97780-30312-00 |
— | ||
|
8
|
8
803-83912-00-38 Lever L |
803-83912-00-38 |
from US $7.49 |
||
|
9
|
9
8H8-83950-01-00 Beam Switch Assy |
8H8-83950-01-00 |
from US $50.70 |
||
|
10
|
10
8R4-82530-00-00 Stop Switch Assy |
8R4-82530-00-00 |
from US $17.85 |
||
|
11
|
11
8F2-26340-00-00
Cable, Brake
|
8F2-26340-00-00 |
— | ||
|
12
|
12
8H0-42138-00-00
Lever, Throttle
|
8H0-42138-00-00 |
— | ||
|
13
|
13
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
14
|
14
98580-06545-00 Screw, Pan Head (92503-06045-0092503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
15
|
15
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
15
|
15
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
16
|
16
95701-06300-00 Nut, Nylon |
95701-06300-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
95707-06300-00 Nut, Nylon |
95707-06300-00 |
from US $1.56 |
||
|
17
|
17
8F2-26311-00-00
Cable, Throttle 1
|
8F2-26311-00-00 |
— | ||
|
18
|
18
878-26391-00-00
Clip, Cable
|
878-26391-00-00 |
— | ||
|
19
|
19
8F2-26242-00-00
Grip Rh
RH |
8F2-26242-00-00 |
— | ||
|
20
|
20
8F2-26246-00-00
End, Grip
|
8F2-26246-00-00 |
— | ||
