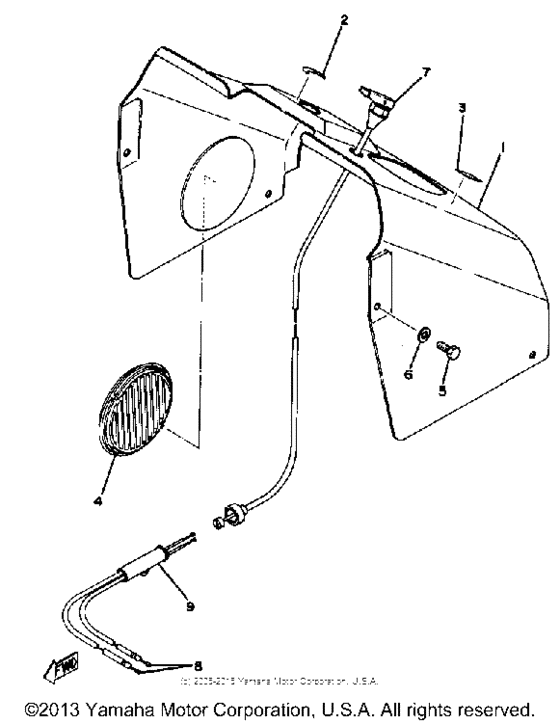

Instrument panel Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-77711-00-00
Panel, Instrument
|
8A7-77711-00-00 |
— | ||
|
2
|
2
878-77741-00-00
Indicator 1
|
878-77741-00-00 |
— | ||
|
3
|
3
8F2-77743-00-00
Indicator 3
|
8F2-77743-00-00 |
— | ||
|
4
|
4
8A7-77133-30-00
Louver 3
|
8A7-77133-30-00 |
— | ||
|
5
|
5
970-16060-16-00
Bolt
|
970-16060-16-00 |
— | ||
| replacement | |||||
|
5
|
5
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
6
|
6
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
7
|
7
8A7-26331-00-00
Cable, Starter 1
|
8A7-26331-00-00 |
— | ||
|
8
|
8
8A7-26334-00-00
Cable, Starter 2
|
8A7-26334-00-00 |
— | ||
|
9
|
9
137-26261-01-00 Connector, Cable |
137-26261-01-00 |
from US $21.54 |
||
