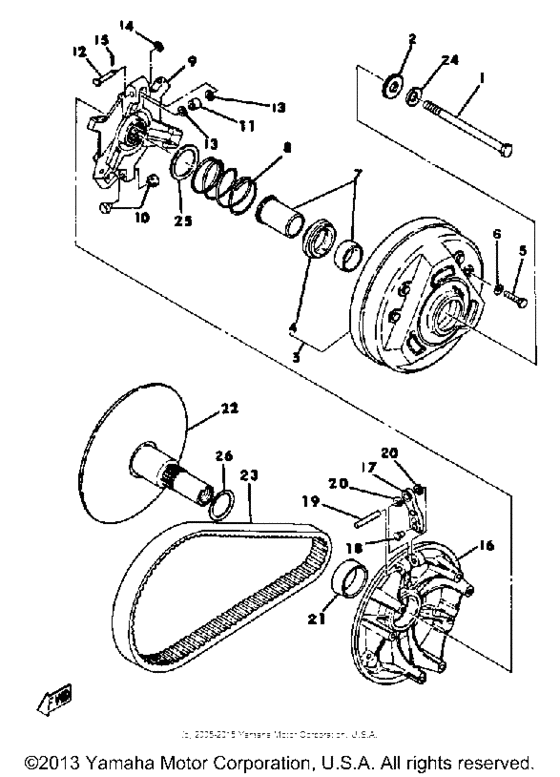

Primary sheave Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90101-13406-00
Bolt
|
90101-13406-00 |
— | ||
|
2
|
2
8A7-17654-00-00 Spacer 1 |
8A7-17654-00-00 |
from US $8.82 |
||
| replacements | |||||
|
2
|
2
8J0-17654-00-00 Spacer 1 |
8J0-17654-00-00 |
from US $16.09 |
||
|
2
|
2
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
3
|
3
8E7-W1762-00-00
Pri. Sheave Cap
|
8E7-W1762-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
8E7-17644-02-00
Seat,spring
|
8E7-17644-02-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
97313-06030-00 Bolt |
97313-06030-00 |
from US $2.83 |
||
| replacement | |||||
|
5
|
5
97080-06030-00 Bolt |
97080-06030-00 |
from US $2.83 |
||
|
6
|
6
92901-06400-00
Washer, Tooth
|
92901-06400-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
999-99009-40-00
Cover Case
|
999-99009-40-00 |
— | ||
|
7
|
7
90389-34019-00 Bush, Spec''l Shape |
90389-34019-00 |
US $40.34 |
||
|
7
|
7
90387-28630-00
Collar
|
90387-28630-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90501-55485-00
Spring, Compression
|
90501-55485-00 |
— | ||
|
9
|
9
8J0-17627-00-00 Spider |
8J0-17627-00-00 |
US $148.05 |
||
|
10
|
10
8F2-17653-00-00 Slider |
8F2-17653-00-00 |
from US $11.05 |
||
|
11
|
11
903-87066-06-00
Collar
|
903-87066-06-00 |
— | ||
|
12
|
12
902-40060-56-00
Pin, Clevis
|
902-40060-56-00 |
— | ||
|
13
|
13
90202-06113-00 Washer, Plate |
90202-06113-00 |
from US $1.42 |
||
|
14
|
14
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
14
|
14
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
14
|
14
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
15
|
15
914-01250-20-00
Pin. Cotter
|
914-01250-20-00 |
— | ||
| replacement | |||||
|
15
|
15
91490-25020-00 Pin. Cotter |
91490-25020-00 |
from US $1.34 |
||
|
16
|
16
8E7-17621-01-00 Sheave, Pri Sliding |
8E7-17621-01-00 |
US $135.65 |
||
|
17
|
17
8F2-17632-09-00
Weight, Clutch
|
8F2-17632-09-00 |
— | ||
|
18
|
18
902-61060-16-00
Rivet, Cntrsnk Hd
HD |
902-61060-16-00 |
— | ||
|
19
|
19
936-07441-33-00
Pin, Dowel
|
936-07441-33-00 |
— | ||
|
20
|
20
902-01076-50-00
Washer, Plate
|
902-01076-50-00 |
— | ||
|
21
|
21
90389-41018-00
Bush, Spec''l Shape
|
90389-41018-00 |
— | ||
|
22
|
22
8F2-17610-00-00
Pri Fixed Sheave
|
8F2-17610-00-00 |
— | ||
|
23
|
23
8F2-17641-01-00 V-Belt |
8F2-17641-01-00 |
from US $68.10 |
||
| replacement | |||||
|
23
|
23
89X-17641-01-00 V-Belt |
89X-17641-01-00 |
from US $55.53 |
||
|
24
|
24
902-08130-23-00
Washer, Conical Spr
|
902-08130-23-00 |
— | ||
|
25
|
25
902-01455-92-00
Washer, Plate
|
902-01455-92-00 |
— | ||
|
26
|
26
902-14300-14-00
Washer, Claw
|
902-14300-14-00 |
— | ||
