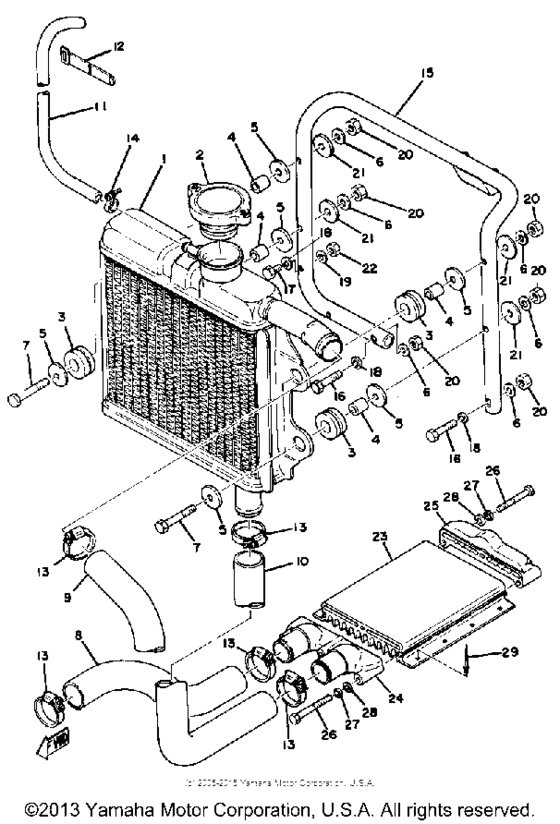

Radiator Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-12460-00-00
Radiator Assembly
|
8A7-12460-00-00 |
— | ||
|
2
|
2
11H-12462-00-00 Cap, Radiator |
11H-12462-00-00 |
from US $69.91 |
||
|
3
|
3
90480-20131-00 Grommet |
90480-20131-00 |
from US $4.25 |
||
| replacement | |||||
|
3
|
3
90480-20527-00 Grommet |
90480-20527-00 |
from US $4.25 |
||
|
4
|
4
90387-06518-00 Collar |
90387-06518-00 |
from US $3.12 |
||
|
5
|
5
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
6
|
6
902-01065-F3-00
Washer, Plate
|
902-01065-F3-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
7
|
7
97313-06040-00 Bolt (682)682 |
97313-06040-00 |
from US $1.28 |
||
| replacement | |||||
|
7
|
7
97095-06040-00 Bolt682 |
97095-06040-00 |
from US $1.28 |
||
|
8
|
8
8A7-12485-00-00
Pipe 5
|
8A7-12485-00-00 |
— | ||
|
9
|
9
8A7-12482-00-00
Pipe 2
|
8A7-12482-00-00 |
— | ||
|
10
|
10
8A7-12483-01-00
Pipe 3
|
8A7-12483-01-00 |
— | ||
|
11
|
11
904-45111-54-00
Hose
|
904-45111-54-00 |
— | ||
|
12
|
12
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
13
|
13
90460-38292-00 Clamp, Hose |
90460-38292-00 |
US $22.79 |
||
|
14
|
14
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
14
|
14
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
14
|
14
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
15
|
15
8A7-12464-00-00
Stay, Radiator
|
8A7-12464-00-00 |
— | ||
|
16
|
16
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
16
|
16
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
16
|
16
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
17
|
17
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
17
|
17
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
19
|
19
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
20
|
20
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
20
|
20
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.21 |
||
|
21
|
21
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
22
|
22
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
22
|
22
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
23
|
23
8A7-12466-00-00
Exchanger, Heat
|
8A7-12466-00-00 |
— | ||
|
24
|
24
8A7-12469-00-00
Joint 1
|
8A7-12469-00-00 |
— | ||
|
25
|
25
8A7-12479-00-00
Joint
|
8A7-12479-00-00 |
— | ||
|
26
|
26
973-01050-50-00 Bolt, Hexagon |
973-01050-50-00 |
US $2.13 |
||
|
27
|
27
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
28
|
28
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
28
|
28
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
28
|
28
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
29
|
29
90267-48053-00 Rivet, Blind |
90267-48053-00 |
from US $1.98 |
||
