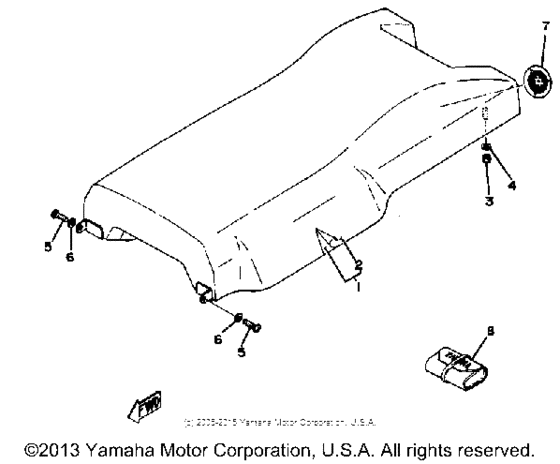

Seat Diagram Yamaha SRX440
- Model code
- SRX440
- Engine Capacity
- 440
- Year
- 1977
- Sales region
- USA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8A7-24710-00-00
Single Seat Assembly
|
8A7-24710-00-00 |
— | ||
|
2
|
2
8A7-24711-00-00
Cover, Single Seat
|
8A7-24711-00-00 |
— | ||
|
3
|
3
95712-08300-00 Nut, Lock |
95712-08300-00 |
from US $3.21 |
||
| replacement | |||||
|
3
|
3
957-17083-00-00 Nut, Flange |
957-17083-00-00 |
from US $3.26 |
||
|
4
|
4
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
5
|
5
98906-06016-00 Screw, Bind |
98906-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
98907-06016-00 Screw, Bind |
98907-06016-00 |
from US $1.56 |
||
|
6
|
6
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
6
|
6
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
6
|
6
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
7
|
7
821-77352-00-00
Emblem 2
|
821-77352-00-00 |
— | ||
|
8
|
8
8A7-28100-10-00
Tool Kit
|
8A7-28100-10-00 |
— | ||
